Motorized Rotation and Tilt Stage 970-0090
• Motorized Actuators 970-0065 installed • Manual version of Multi-Axis Stages 850-0010 and vacuum version are available Multi-Axis Tilt Platform 850-0010 provides angular adjustment about two-axis - tilting and… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 970-0090 |
Out of stock
$1,245
|
Specifications
| Tilt y | ±2° |
| Rotation z | ±2,5° |
| Resolution / in full step / in 1 / 8 step | 1,25 μm / 0,156 μm |
| Lead screw pitch | 0,25 mm |
| Repeatability | 1 μm |
| Maximum load capacity | 15 kg |
| Type of actuator | 970-0065 |
| Cable | 1,2 m length cable included |
| Motor connector | DB15(M) (wiring diagram) |
| Optocoupler end limit switches | 2 per actuator |
| Switch polarity | pushed is open |
Description
- Motorized Actuators 970-0065 installed
- Manual version of Multi-Axis Stages 850-0010 and vacuum version are available

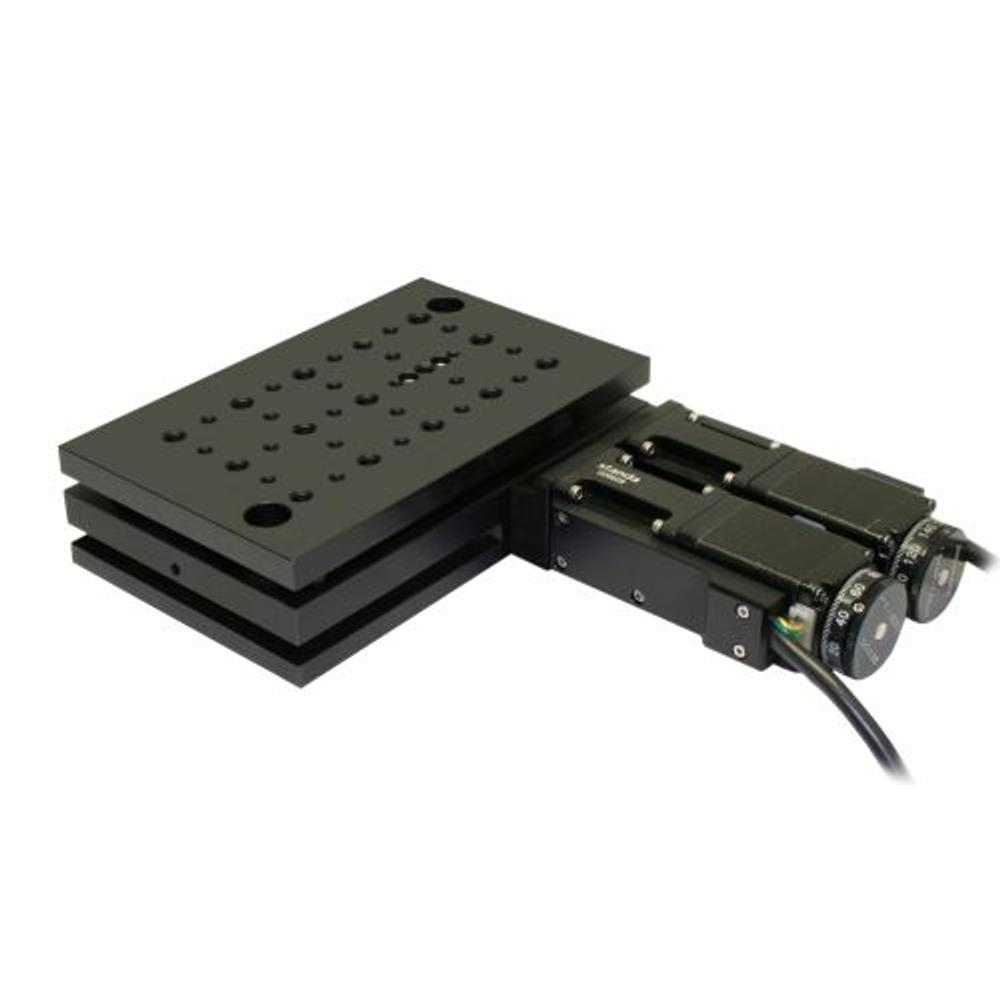

Multi-Axis Tilt Platform 850-0010 provides angular adjustment about two-axis - tilting and in-plane rotation. The mounting platform is rotated around kinematic pivot point by two micrometers.
The out-of-plane tilting range is ±2° and the in-plane rotation range is ±2.5°. Two micrometers screws are located side by side for a handy use. The adjustment movements are not calibrated, and they are uncoupled. The mounting platform has a 25 mm grid of tapped holes M6 and M4.
