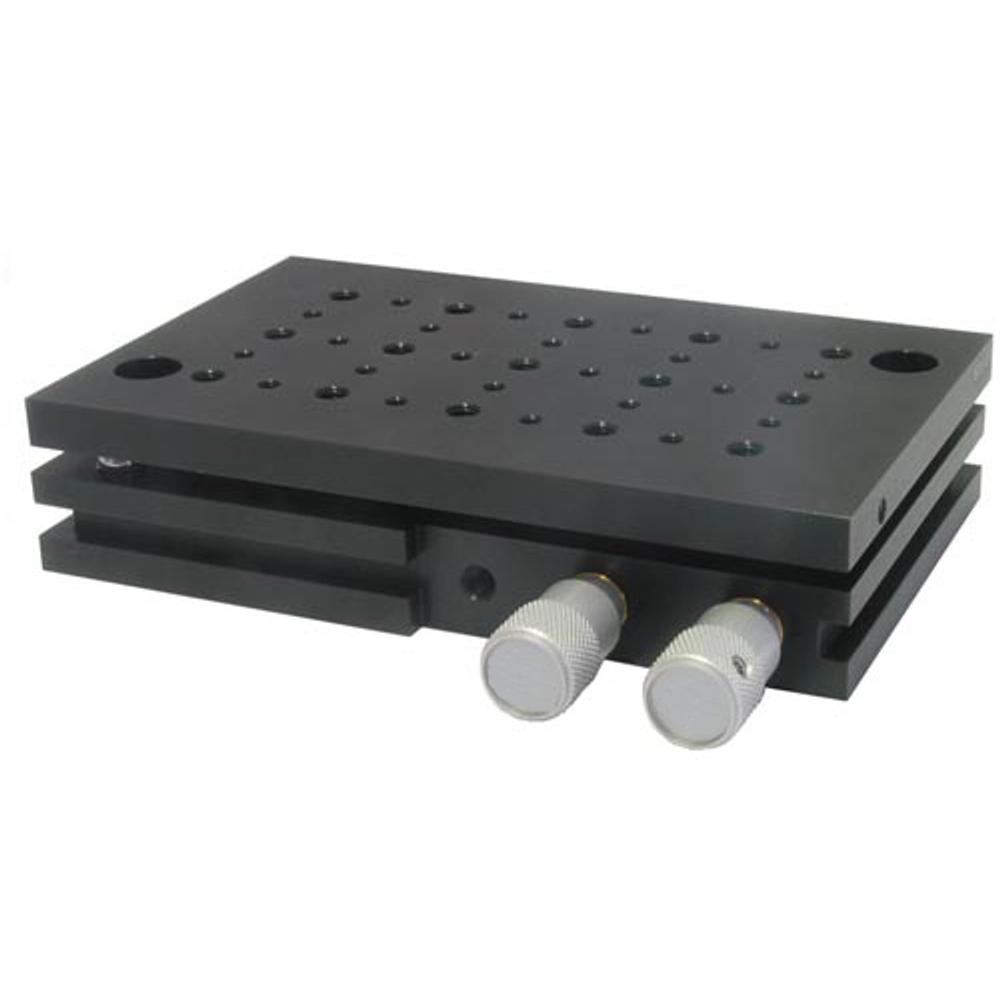

Multi-Axis Tilt Platform 850-0010
Multi-Axis Tilt Platform 850-0010 provides angular adjustment about two axes – tilting and in-plane rotation. The mounting platform is rotated around kinematic pivot point by two micrometers. The out-of-plane tilting… Read more →
Listed in
Order
Spec at a glance
| Rotation θz | ±2.5° |
| Tilt θy | ±2° |
| Load capacity | 15 kg |
Specifications
| Tilt Θy | ±2° |
| Rotation Θz | ±2.5° |
| Load capacity | 15 kg |
| Weight | 1 kg |
Classification
| Type | base-positioner |
Description
Multi-Axis Tilt Platform 850-0010 provides angular adjustment about two axes – tilting and in-plane rotation.
The mounting platform is rotated around kinematic pivot point by two micrometers. The out-of-plane tilting range is ±2° and the in-plane rotation range is ±2.5°. Two micrometer screws are located side by side for a handy use. The adjustment movements are not calibrated, and they are uncoupled.
The mounting platform has a 25 mm grid of tapped holes M6 and M4.
Model 850-0009 is a narrow custom modification of 850-0010.
Two clearance holes Ø6.2 mm are provided in the base of the unit. This allows to attach 850-0010 to tables and breadboards. Also you can clamp the base of the unit by Table Clamp 820-0240; this way you can place the unit on the table in any direction.
The tilt platform is made of black anodized aluminium.
