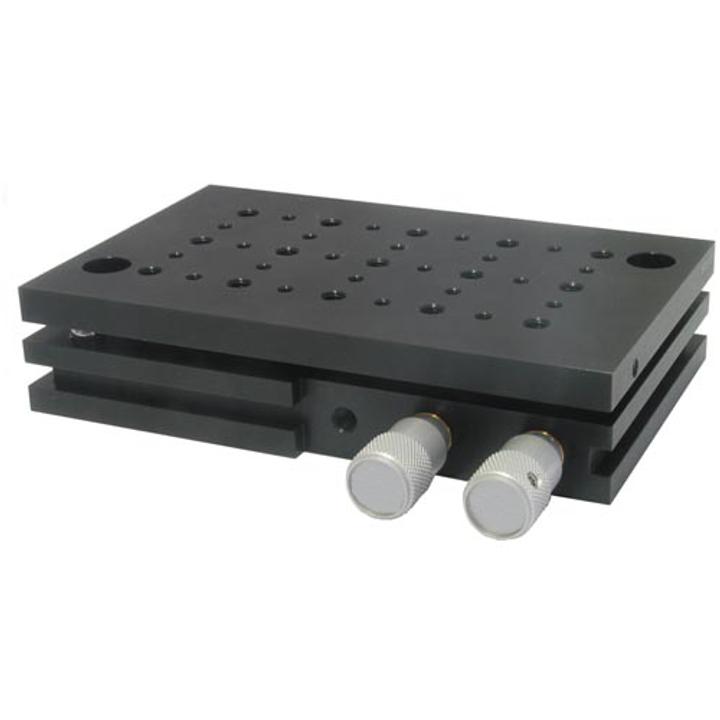

Multi-Axis Tilt Platform 850-0010 SKU: 850-0009
Multi-Axis Tilt Platform 850-0010 provides angular adjustment about two axes – tilting and in-plane rotation. The mounting platform is rotated around kinematic pivot point by two micrometers. The out-of-plane tilting range is ±2° and the in-plane rotation range is ±2.5°. Two…
Variant specifications
| Specification | Value |
|---|---|
| Rotation θz | ±2.5° |
| Tilt θy | ±2° |
| Load capacity | 15 kg |
Shared product specifications
These specifications apply across the Multi-Axis Tilt Platform 850-0010 product family.
| Tilt Θy | ±2° |
| Rotation Θz | ±2.5° |
| Load capacity | 15 kg |
| Weight | 1 kg |
Classification
| Type | base-positioner |
Product brochures
Shared documentation for the complete product family.
