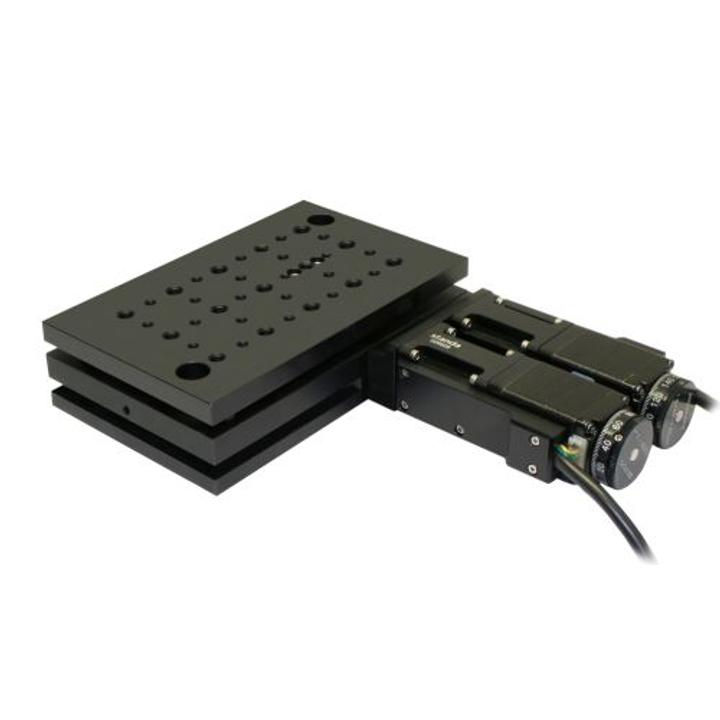

Motorized Rotation and Tilt Stage 970-0090 SKU: 970-0090
• Motorized Actuators 970-0065 installed • Manual version of Multi-Axis Stages 850-0010 and vacuum version are available Multi-Axis Tilt Platform 850-0010 provides angular adjustment about two-axis - tilting and in-plane rotation. The mounting platform is rotated around…
Shared product specifications
These specifications apply across the Motorized Rotation and Tilt Stage 970-0090 product family.
| Tilt y | ±2° |
| Rotation z | ±2,5° |
| Resolution / in full step / in 1 / 8 step | 1,25 μm / 0,156 μm |
| Lead screw pitch | 0,25 mm |
| Repeatability | 1 μm |
| Maximum load capacity | 15 kg |
| Type of actuator | 970-0065 |
| Cable | 1,2 m length cable included |
| Motor connector | DB15(M) (wiring diagram) |
| Optocoupler end limit switches | 2 per actuator |
| Switch polarity | pushed is open |
