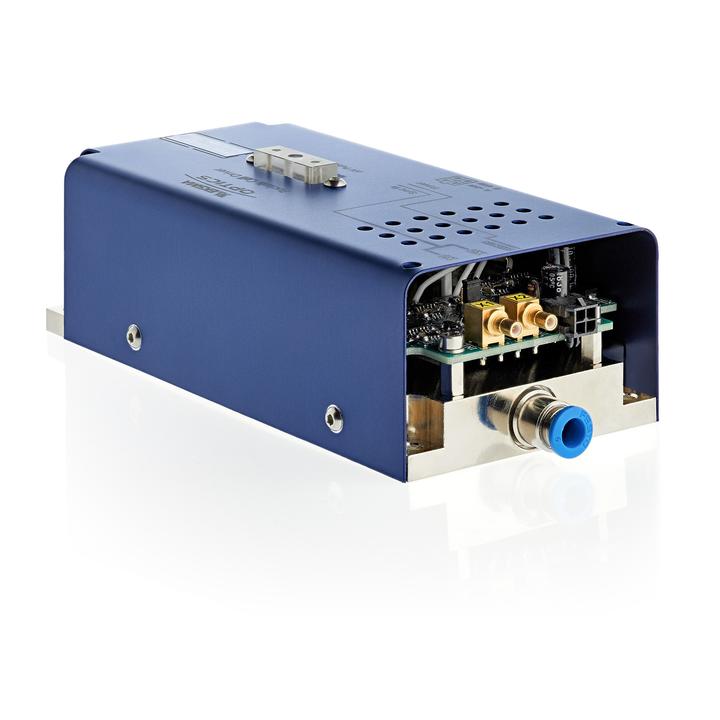

DPBx High Voltage Pockels Cell Drivers (≤1 MHz, ≤7.2 kV) SKU: DPB3-500-7.2-Al

• HV pulse amplitude up to 7.2 kV • Repetition rate up to 1000 kHz • HV pulse duration extension using pulse regeneration technique • OEM version available upon request DPBx series drivers are designed for wide range of applications and operating modes. Standard range of…

Variant specifications

Specification	Value
MAX. HV OPERATING VOLTAGE	7.2 kV
MAX. HV REPETITION RATE	500 kHz

Shared product specifications

These specifications apply across the DPBx High Voltage Pockels Cell Drivers (≤1 MHz, ≤7.2 kV) product family.

	DPB1-250-5.2-Al	DPB1-300-4.6-Al	DPB1-350-4-Al	DPB1-1000-3.0-Al	DPB3-500-7.2-Al
Maximal HV operating voltage	5.2 kV	4.6 kV	4.0 kV	3.0 kV	7.2 kV
Maximal HV repetition rate	250 kHz	300 kHz	350 kHz	1000 kHz	500 kHz
Pulse duration	100 – 5000 ns	100 – 5000 ns	100 – 5000 ns	100 – 5000 ns	100 – 5000 ns
HV pulse rise time, typical	<8.5 ns	<8 ns	<7.5 ns	<7.5 ns	<8.5 ns
HV pulse fall time, typical	<8.5 ns	<8 ns	<7.5 ns	<7.5 ns	<8.5 ns
Output polarity	Bipolar	Bipolar	Bipolar	Bipolar	Bipolar
HV power consumption	<100 W	<100 W	<100 W	<120 W	<375 W
24 V power consumption	<3 W	<4 W	<5 W	<9 W	<7 W
Cooling	Water	Water	Water	Water	Water

	DPB2-150-7.0	DPB2-250-7.0-Al	DPB3-500-7.2-Al	DPB2-1000-3.8-Al	DPB2-1000-4.0-Al
Maximal HV operating voltage	7.0 kV	7.0 kV	7.2 kV	3.8 kV	4.0 kV
Maximal HV repetition rate	150 kHz	250 kHz	500 kHz	1000 kHz	1000 kHz
Pulse duration	1.00 – 5000 ns	1.00 – 5000 ns	1.00 – 5000 ns	1.00 – 5000 ns	1.00 – 5000 ns
HV pulse rise time, typical	<9.5 ns	<9.5 ns	<8.5 ns	<6 ns	<9.5 ns
HV pulse fall time, typical	<9.5 ns	<9.5 ns	<8.5 ns	<6 ns	<8.5 ns
Output polarity	Bipolar	Bipolar	Bipolar	Bipolar	Bipolar
HV power consumption	<110 W	<200 W	<375 W	<230 W	<210 W
24 V power consumption	<9 W	<9 W	<7 W	<12 W	<12 W
Cooling	Water	Water	Water	Water	Water
