DPBx High Voltage Pockels Cell Drivers (≤1 MHz, ≤7.2 kV)
• HV pulse amplitude up to 7.2 kV • Repetition rate up to 1000 kHz • HV pulse duration extension using pulse regeneration technique • OEM version available upon request DPBx series drivers are designed for wide… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | MAX. HV OPERATING VOLTAGE · MAX. HV REPETITION RATE | |
|---|---|---|
| DPB1-1000-3.0-Al | 3.0 kV·1000 kHz |
Out of stock
$3,360
|
| DPB1-250-5.2-Al | 5.2 kV·250 kHz |
2 in stock
Ships in: 2–5 calendar days
$3,102
|
| DPB1-300-4.6-Al | 4.6 kV·300 kHz |
Out of stock
$3,288
|
| DPB1-350-4-Al | 4 kV·350 kHz |
Out of stock
$3,228
|
| DPB2-1000-3.8-Al | 3.8 kV·1000 kHz |
Out of stock
$3,816
|
| DPB2-1000-4.0-Al | 4.0 kV·1000 kHz |
Out of stock
$3,816
|
| DPB2-150-7.0 | 7 kV·150 kHz |
Out of stock
$2,952
|
| DPB2-250-7.0-Al | 7.0 kV·250 kHz |
Out of stock
$3,456
|
| DPB3-500-7.2-Al | 7.2 kV·500 kHz |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| DPB1-250-5.2-Al | DPB1-300-4.6-Al | DPB1-350-4-Al | DPB1-1000-3.0-Al | DPB3-500-7.2-Al | |
|---|---|---|---|---|---|
| Maximal HV operating voltage | 5.2 kV | 4.6 kV | 4.0 kV | 3.0 kV | 7.2 kV |
| Maximal HV repetition rate | 250 kHz | 300 kHz | 350 kHz | 1000 kHz | 500 kHz |
| Pulse duration | 100 – 5000 ns | 100 – 5000 ns | 100 – 5000 ns | 100 – 5000 ns | 100 – 5000 ns |
| HV pulse rise time, typical | <8.5 ns | <8 ns | <7.5 ns | <7.5 ns | <8.5 ns |
| HV pulse fall time, typical | <8.5 ns | <8 ns | <7.5 ns | <7.5 ns | <8.5 ns |
| Output polarity | Bipolar | Bipolar | Bipolar | Bipolar | Bipolar |
| HV power consumption | <100 W | <100 W | <100 W | <120 W | <375 W |
| 24 V power consumption | <3 W | <4 W | <5 W | <9 W | <7 W |
| Cooling | Water | Water | Water | Water | Water |
| DPB2-150-7.0 | DPB2-250-7.0-Al | DPB3-500-7.2-Al | DPB2-1000-3.8-Al | DPB2-1000-4.0-Al | |
|---|---|---|---|---|---|
| Maximal HV operating voltage | 7.0 kV | 7.0 kV | 7.2 kV | 3.8 kV | 4.0 kV |
| Maximal HV repetition rate | 150 kHz | 250 kHz | 500 kHz | 1000 kHz | 1000 kHz |
| Pulse duration | 1.00 – 5000 ns | 1.00 – 5000 ns | 1.00 – 5000 ns | 1.00 – 5000 ns | 1.00 – 5000 ns |
| HV pulse rise time, typical | <9.5 ns | <9.5 ns | <8.5 ns | <6 ns | <9.5 ns |
| HV pulse fall time, typical | <9.5 ns | <9.5 ns | <8.5 ns | <6 ns | <8.5 ns |
| Output polarity | Bipolar | Bipolar | Bipolar | Bipolar | Bipolar |
| HV power consumption | <110 W | <200 W | <375 W | <230 W | <210 W |
| 24 V power consumption | <9 W | <9 W | <7 W | <12 W | <12 W |
| Cooling | Water | Water | Water | Water | Water |
Description
- HV pulse amplitude up to 7.2 kV
- Repetition rate up to 1000 kHz
- HV pulse duration extension using pulse regeneration technique
- OEM version available upon request

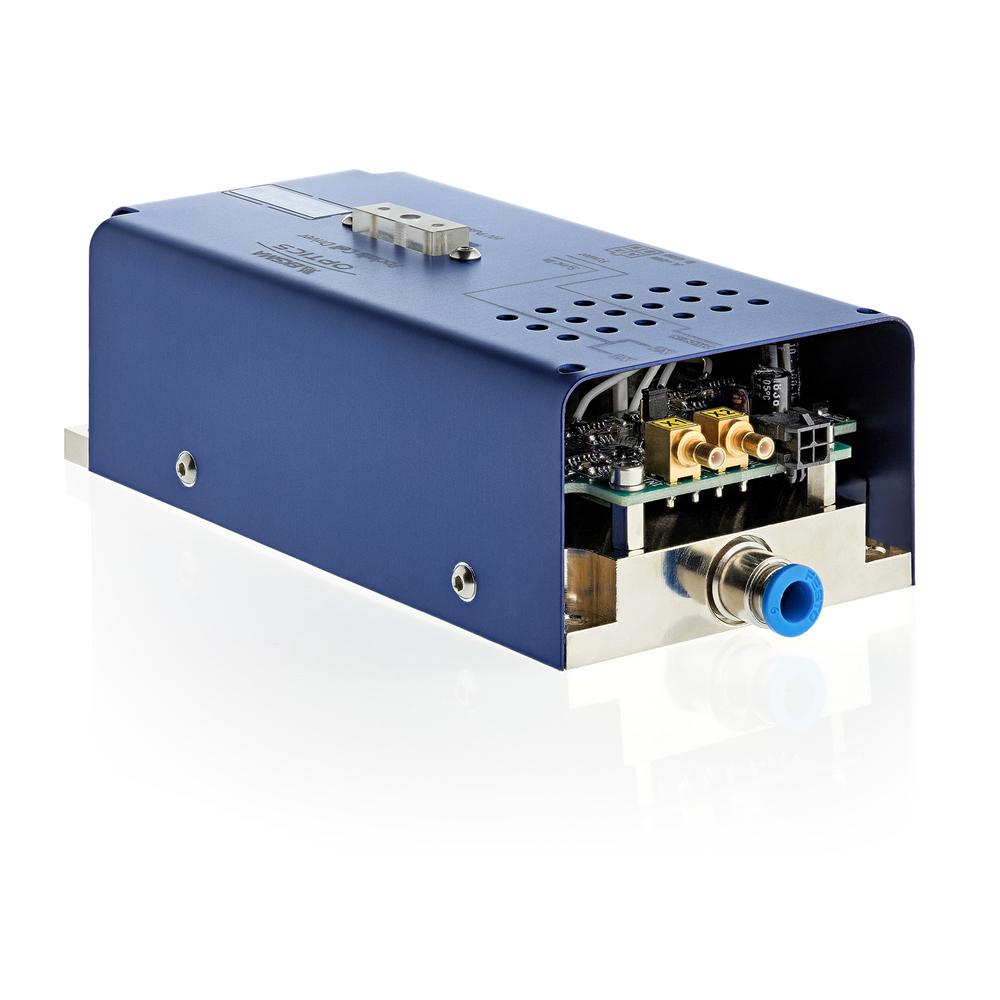

DPBx series drivers are designed for wide range of applications and operating modes. Standard range of possible pulse durations is from 100 ns to 5 µs. It can be extended to infinity using pulse regeneration technique.
DPBx series units are available in two versions: „open frame “, which is ideal for OEM manufacturers incorporating drivers in their own systems and encased in aluminum housings for researchers. Encasing of Pockels cell driver in aluminum housing solves two problems: shields both humans and electronics from high voltage impact from operating Pockels cell driver, and protects driver itself from potentially harmful external contact – ensuring safe operation and driver longevity. The housed option is especially handy for researchers and custom product manufacturers who use these drivers during their own systems build-up.
