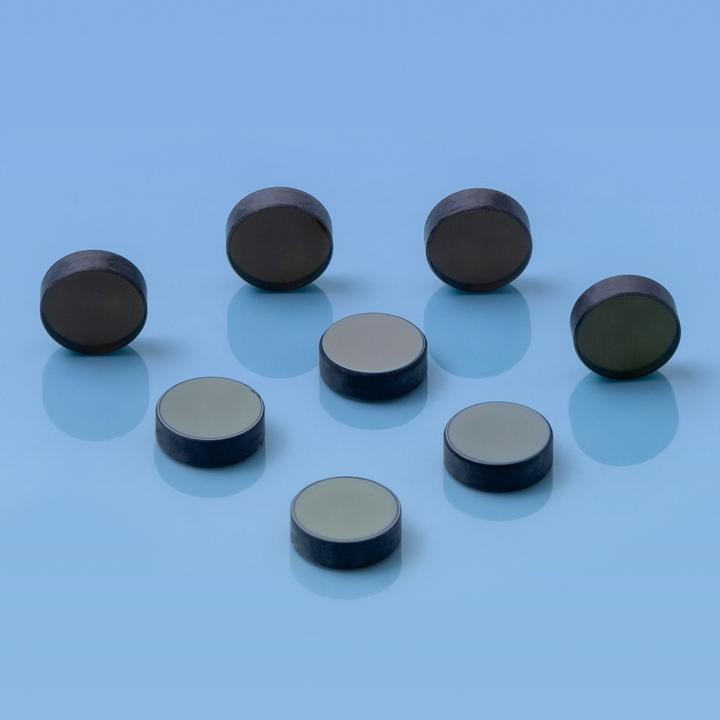

Cr:YAG Crystals SKU: CrYAG-07-25
Cr⁴⁺:YAG (Cr:YAG) is one of the best passive Q-switching crystal for high power lasers emitting at ~1 µm wavelength. Excellent optical, mechanical and thermal properties of the crystals give an opportunity to design compact and reliable laser sources with these passive…
Variant specifications
| Specification | Value |
|---|---|
| Diameter | 7 mm |
| Initial Transmission | 0.25 |
Shared product specifications
These specifications apply across the Cr:YAG Crystals product family.
| Transmission tolerances | ±2 % |
| Wavefront distortion | ≤λ / 8@ 632.8 nm |
| Diameter tolerances | +0.0 / -0.2 mm |
| Parallelism error | ≤30 arcsec |
| Perpendicularity | ≤15 arcmin |
| Surface quality | 20-10 scratch & dig (per MIL-O-13830A) |
| Chamfer | <0.1 mm @ 45° |
| AR Coating reflectivity | ≤0.2 % @ 1064 nm |
