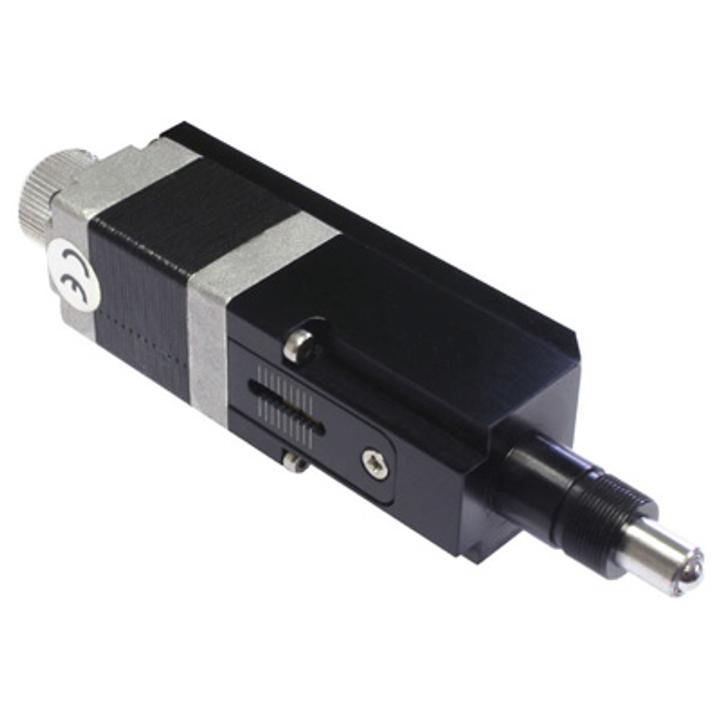

Motorized Actuator 970-0050 SKU: 970-0050-15
• Compact • Manual drive with a knob • Two limit switches • Step motor controlers (USB, RS232) are available separately • Optional power supplies for higher voltages/speeds are available Vacuum Compatible version available. The main advantages: • Resolution 0.156µm (1/8…
Variant specifications
| Specification | Value |
|---|---|
| Travel range | 13 mm |
| L | 92...105 mm |
| L1 | 15 mm |
| L2 | 7 mm |
| L3 | 30 mm |
Shared product specifications
These specifications apply across the Motorized Actuator 970-0050 product family.
| Model | 970-0050-15 | 970-0050-25 |
|---|---|---|
| Travel range | 13 mm | 25 mm |
| Resolution | 1.25 µm | 1.25 µm |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Nominal force | 30 N | 30 N |
| Cable | integrated, 1.2 m length | integrated, 1.2 m length |
| Motor connector | HDB15(M) | HDB15(M) |
| Stepper motor | 20 | 20 |
| Weight | 0.12 kg | 0.15 kg |
| Motorized Actuator - Solidworks file | |
| Motorized Actuator - DWG file | |
| Motorized Actuator - STEP file |
