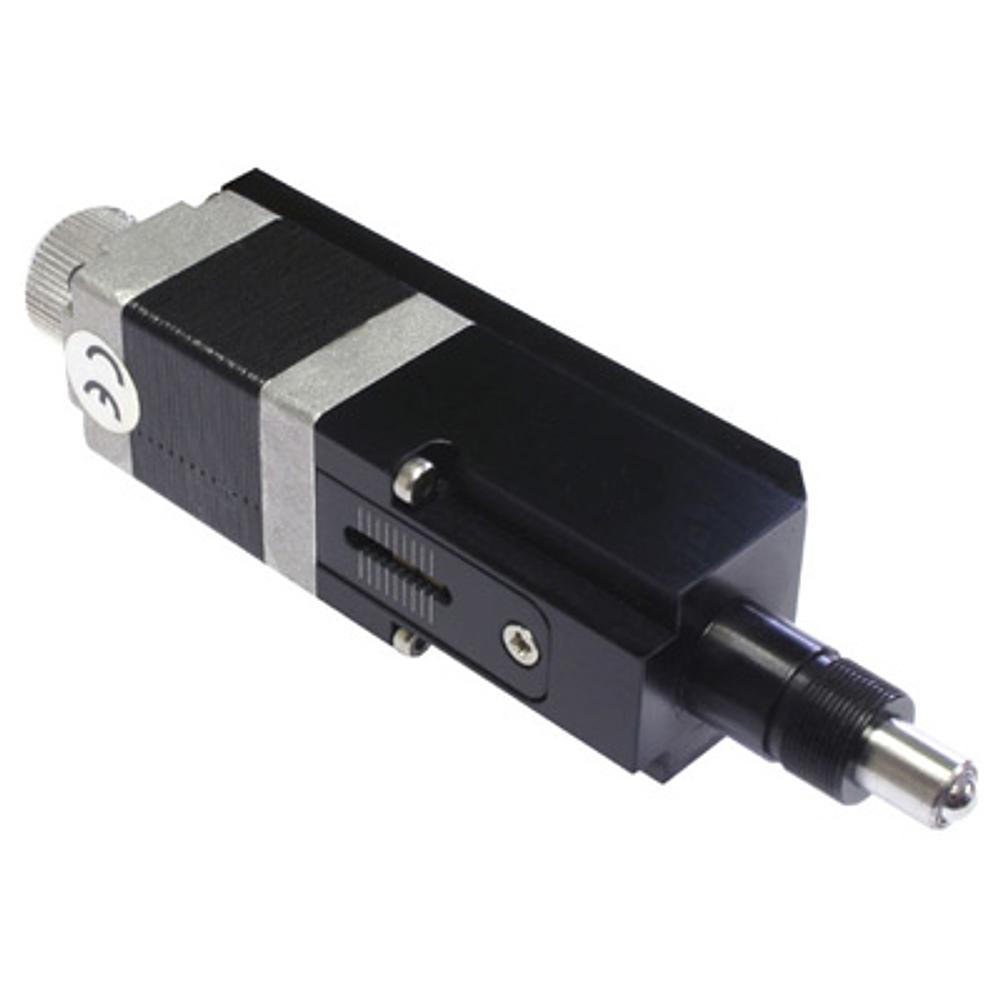

Motorized Actuator 970-0050
• Compact • Manual drive with a knob • Two limit switches • Step motor controlers (USB, RS232) are available separately • Optional power supplies for higher voltages/speeds are available Vacuum Compatible version… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
Travel range
Any
L
Any
or
L1
Any
L2
Any
L3
Any
3
catalog variants — refine the spec to narrow it down.
| SKU | L · Travel range · L1 · L2 · L3 | |
|---|---|---|
| 970-0050-10* | 87...100 mm·13 mm·10 mm·4.5 mm·30 mm |
Out of stock
—
|
| 970-0050-15 | 92...105 mm·13 mm·15 mm·7 mm·30 mm |
Out of stock
$598
|
| 970-0050-25 | 101...126 mm·25 mm·15 mm·7 mm·40 mm |
1 in stock
Ships in: 2–5 calendar days
$706
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Model | 970-0050-15 | 970-0050-25 |
|---|---|---|
| Travel range | 13 mm | 25 mm |
| Resolution | 1.25 µm | 1.25 µm |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Nominal force | 30 N | 30 N |
| Cable | integrated, 1.2 m length | integrated, 1.2 m length |
| Motor connector | HDB15(M) | HDB15(M) |
| Stepper motor | 20 | 20 |
| Weight | 0.12 kg | 0.15 kg |
| Motorized Actuator - Solidworks file | |
| Motorized Actuator - DWG file | |
| Motorized Actuator - STEP file |
Description
- Compact
- Manual drive with a knob
- Two limit switches
- Step motor controlers (USB, RS232) are available separately
- Optional power supplies for higher voltages/speeds are available
Vacuum Compatible version available. The main advantages:
- Resolution 0.156µm (1/8 step)
- Manual drive with knob
- Two limit switches
