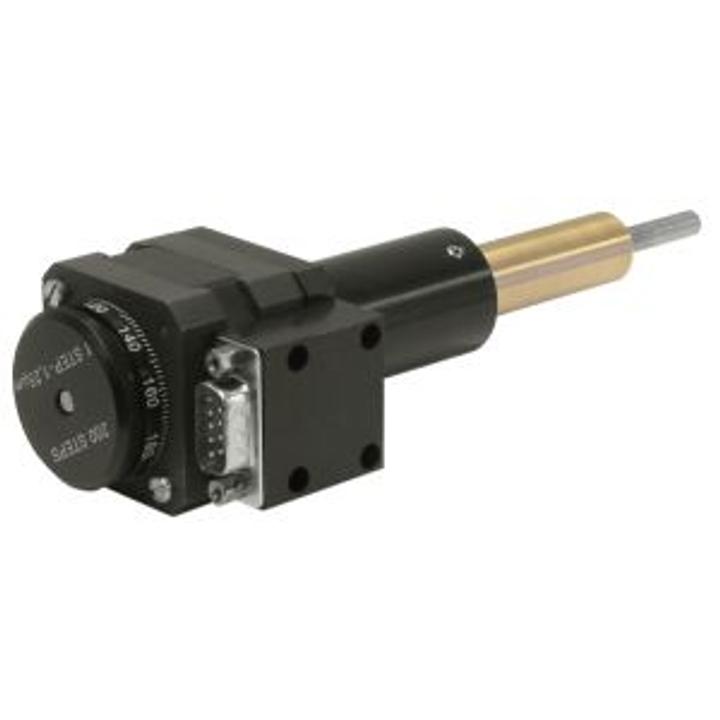

Motorized Screws 970-0040 SKU: 970-0042
• Manual drive with a dial knob • Resolution 0.156 µm in 1/8 step mode • Scale on the dial knob allows reading accuracy to a step • Two limit switches • Optional power supplies for higher voltages/speeds are available • Other types of motors can be installed on request Encoders…
Variant specifications
| Specification | Value |
|---|---|
| M, mm | 37 |
| L min, mm | 143.5 |
| L max, mm | 153.5 |
Shared product specifications
These specifications apply across the Motorized Screws 970-0040 product family.
| Model | 970-0040 | 978-0040 |
|---|---|---|
| Travel range / 970-0042, 978-0042 / 970-0045, 978-0045 | 10 mm / 25 mm | 10 mm / 25 mm |
| Lead screw pitch, mm | 0.25 | 0.25 |
| Resolution in full step, µm | 1.25 | 1.25 |
| Lead screw pitch, mm | 1.25 | 1.25 |
| Nominal force, N | 60 | 80 |
| Motor connector | HDB9(M) | HDB15(M) |
| Stepper motor | 4233 | 28 |
| Mechanical end limit switches | 2, pushed is "closed" | 2, pushed is "closed" |
