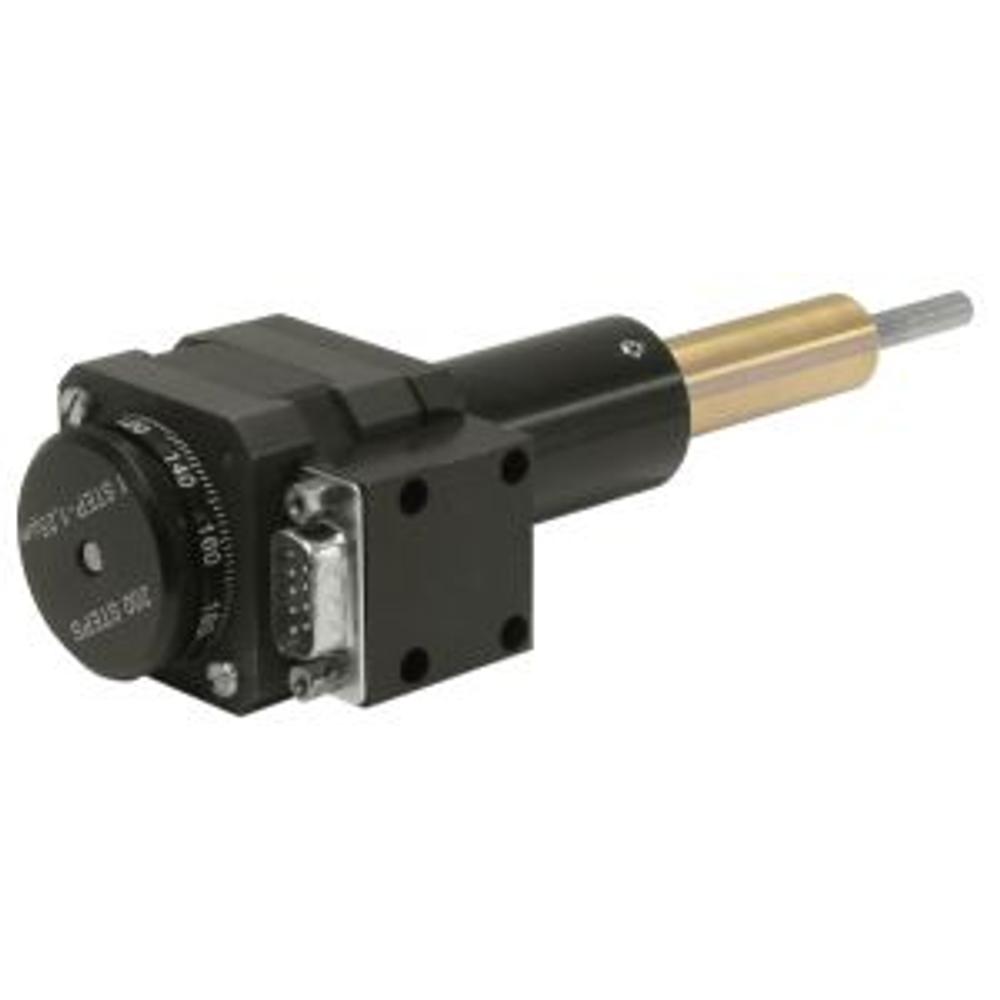

Motorized Screws 970-0040
• Manual drive with a dial knob • Resolution 0.156 µm in 1/8 step mode • Scale on the dial knob allows reading accuracy to a step • Two limit switches • Optional power supplies for higher voltages/speeds are available •… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
M, mm
Any
L min, mm
Any
L max, mm
Any
6
catalog variants — refine the spec to narrow it down.
| SKU | L min, mm · L max, mm · M, mm | |
|---|---|---|
| 970-0042 | 143.5·153.5·37 |
Out of stock
$450
|
| 970-0042V | 170·180·37 |
Out of stock
—
|
| 970-0045 | 153.5·178.5·47 |
Out of stock
$478
|
| 970-0045V | 180·205·47 |
Out of stock
—
|
| 978-0042 | 157.5·167.5·37 |
Out of stock
$419
|
| 978-0045 | 167.5·192.5·47 |
Out of stock
$447
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Model | 970-0040 | 978-0040 |
|---|---|---|
| Travel range / 970-0042, 978-0042 / 970-0045, 978-0045 | 10 mm / 25 mm | 10 mm / 25 mm |
| Lead screw pitch, mm | 0.25 | 0.25 |
| Resolution in full step, µm | 1.25 | 1.25 |
| Lead screw pitch, mm | 1.25 | 1.25 |
| Nominal force, N | 60 | 80 |
| Motor connector | HDB9(M) | HDB15(M) |
| Stepper motor | 4233 | 28 |
| Mechanical end limit switches | 2, pushed is "closed" | 2, pushed is "closed" |
Description
- Manual drive with a dial knob
- Resolution 0.156 µm in 1/8 step mode
- Scale on the dial knob allows reading accuracy to a step
- Two limit switches
- Optional power supplies for higher voltages/speeds are available
- Other types of motors can be installed on request
Encoders or Revolution sensors are available on request. More information.
