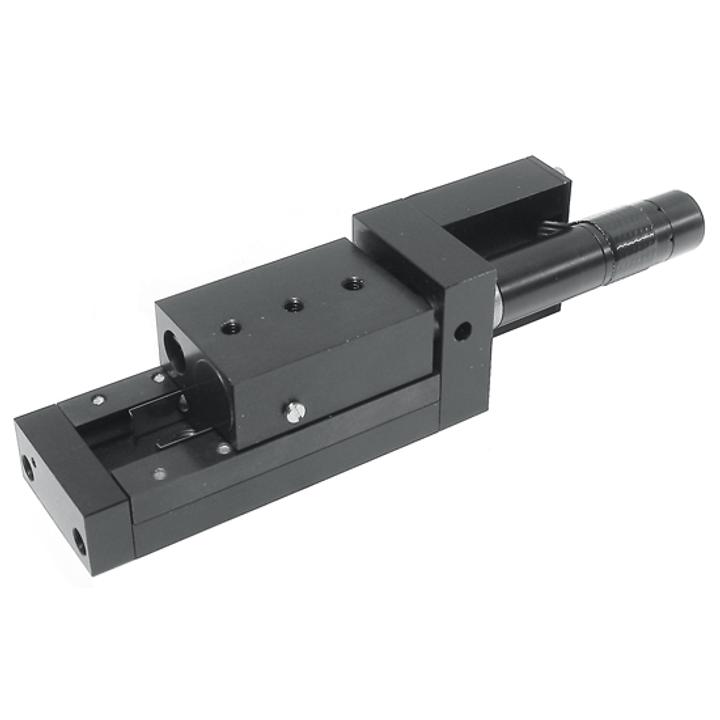

Narrow Motorized Translation Stages with DC Motor 961-0060, 962-0060 SKU: 961-0065
961-0060 series. DC motor provides smoother motion and closed loop operation. High number of motor reduction gear provides high resolution, but low speed in turn. Ideal for applications demanding high accuracy, but not sensitive to speed limitations. 962-0060 series stages are…
Variant specifications
| Specification | Value |
|---|---|
| Travel range, mm | 25 |
| L, mm | 140 |
| A, mm | 74 |
| B, mm | 49 |
| C, mm | 11 |
| D, mm | 30.5 |
| E, mm | 60 |
Shared product specifications
These specifications apply across the Narrow Motorized Translation Stages with DC Motor 961-0060, 962-0060 product family.
| Model | 961 / 962-0062 | 961 / 962-0064 | 961 / 962-0065 | 961 / 962-0066 |
|---|---|---|---|---|
| Travel range, mm | 10 | 20 | 25 | 30 |
| Lead screw pitch, mm | 0.25 | 0.25 | 0.25 | 0.25 |
| Resolution, μm | 0.058 / - | 0.058 / - | 0.058 / - | 0.058 / - |
| Minimal incremental motion, μm | 0.1 | 0.1 | 0.1 | 0.1 |
| Bi-directional Repeatability, μm | 0.4 | 0.4 | 0.4 | 0.4 |
| Max. speed* mm / s | 0.5 / 0.038 | 0.5 / 0.038 | 0.5 / 0.038 | 0.5 / 0.038 |
| Load capacity: / Horizontal, kg / Vertical, kg | 5 / 1 | 5 / 1 | 5 / 1 | 5 / 1 |
| Cable | Integrated, 1.6 m length | Integrated, 1.6 m length | Integrated, 1.6 m length | Integrated, 1.6 m length |
| Motor connector | HDB15(M) / DB9(M) | HDB15(M) / DB9(M) | HDB15(M) / DB9(M) | HDB15(M) / DB9(M) |
| DC motor | DCE369751 / DCJ252445 | DCE369751 / DCJ252445 | DCE369751 / DCJ252445 | DCE369751 / DCJ252445 |
| Weight, kg | 0.43 | 0.46 | 0.47 | 0.48 |
| Assemblies: / X-Y / Z | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 |
