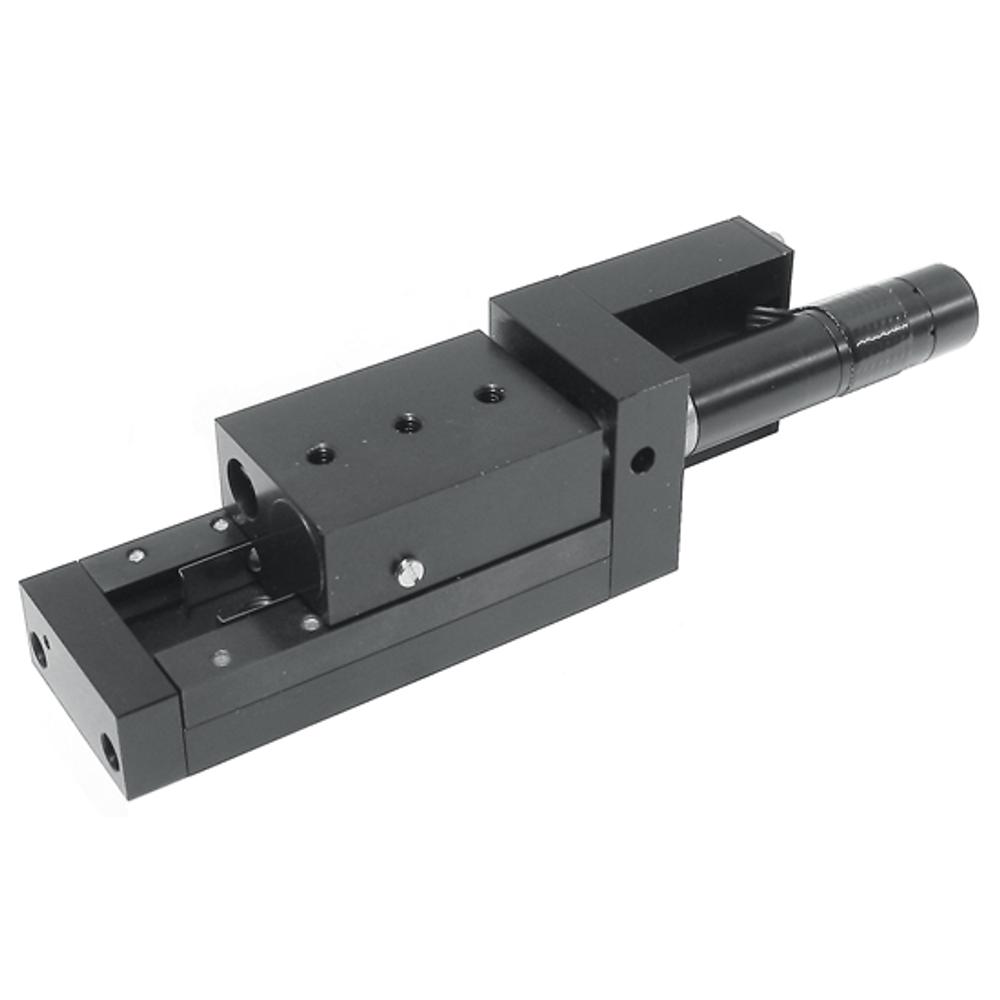

Narrow Motorized Translation Stages with DC Motor 961-0060, 962-0060
961-0060 series. DC motor provides smoother motion and closed loop operation. High number of motor reduction gear provides high resolution, but low speed in turn. Ideal for applications demanding high accuracy, but not… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | L, mm · Travel range, mm · A, mm · D, mm · E, mm · B, mm · C, mm | |
|---|---|---|
| 961-0062 | 126·10·60·21.5·49·45·7.5 |
Out of stock
$779
|
| 961-0064 | 136·20·70·26.5·56·45·7.5 |
Out of stock
$827
|
| 961-0065 | 140·25·74·30.5·60·49·11 |
Out of stock
$827
|
| 961-0066 | 146·30·80·36.5·66·55·11.5 |
Out of stock
$838
|
| 962-0062 | 125·10·60·21.5·49·45·7.5 |
Out of stock
$779
|
| 962-0064 | 135·20·70·26.5·56·45·7.5 |
Out of stock
$838
|
| 962-0065 | 139·25·74·30.5·60·49·11 |
Out of stock
$838
|
| 962-0066 | 145·30·80·36.5·66·55·11.5 |
Out of stock
$838
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Model | 961 / 962-0062 | 961 / 962-0064 | 961 / 962-0065 | 961 / 962-0066 |
|---|---|---|---|---|
| Travel range, mm | 10 | 20 | 25 | 30 |
| Lead screw pitch, mm | 0.25 | 0.25 | 0.25 | 0.25 |
| Resolution, μm | 0.058 / - | 0.058 / - | 0.058 / - | 0.058 / - |
| Minimal incremental motion, μm | 0.1 | 0.1 | 0.1 | 0.1 |
| Bi-directional Repeatability, μm | 0.4 | 0.4 | 0.4 | 0.4 |
| Max. speed* mm / s | 0.5 / 0.038 | 0.5 / 0.038 | 0.5 / 0.038 | 0.5 / 0.038 |
| Load capacity: / Horizontal, kg / Vertical, kg | 5 / 1 | 5 / 1 | 5 / 1 | 5 / 1 |
| Cable | Integrated, 1.6 m length | Integrated, 1.6 m length | Integrated, 1.6 m length | Integrated, 1.6 m length |
| Motor connector | HDB15(M) / DB9(M) | HDB15(M) / DB9(M) | HDB15(M) / DB9(M) | HDB15(M) / DB9(M) |
| DC motor | DCE369751 / DCJ252445 | DCE369751 / DCJ252445 | DCE369751 / DCJ252445 | DCE369751 / DCJ252445 |
| Weight, kg | 0.43 | 0.46 | 0.47 | 0.48 |
| Assemblies: / X-Y / Z | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 |
Description
961-0060 series. DC motor provides smoother motion and closed loop operation. High number of motor reduction gear provides high resolution, but low speed in turn. Ideal for applications demanding high accuracy, but not sensitive to speed limitations.
962-0060 series stages are equipped with DC motor without encoder and can operated with joystick only. Ideal for systemswith own feedback, e.g. visual feedback when used with microscope.
Vacuum compatible 961-0060V series stages are available.
