Vacuum Compatible Narrow Motorized Translation Stage with DC Motor 961-0060V
Vacuum compatible 961-0060V series stages are equipped with 10⁻⁶ Torr vacuum compatible DC motor, all mechanical parts are lubricated with high vacuum compatible grease. Aluminum parts are not anodized. Stages are… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Travel range, mm · L, mm · A, mm · B, mm · C, mm · D, mm · E, mm | |
|---|---|---|
| 961-0062V | 10 |
Out of stock
—
|
| 961-0064V | 20 |
Out of stock
—
|
| 961-0065V | 25·142·74·49·11·30.5·60 |
Out of stock
—
|
| 961-0066V | 30·148·80·55·11.5·36.5·66 |
Out of stock
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Model | 961-0062V | 961-0064V | 961-0065V | 961-0066V |
|---|---|---|---|---|
| Travel range, mm | 10 | 20 | 25 | 30 |
| Lead screw pitch, mm | 0.25 | 0.25 | 0.25 | 0.25 |
| Resolution, μm | 0.1 | 0.1 | 0.1 | 0.1 |
| Minimal incremental motion, μm | 0.028 | 0.028 | 0.028 | 0.028 |
| Bi-directional Repeatability, μm | 0.4 | 0.4 | 0.4 | 0.4 |
| Max. speed* mm / s | 0.16 | 0.16 | 0.16 | 0.16 |
| Load capacity: / Horizontal, kg / Vertical, kg | 5 / 1 | 5 / 1 | 5 / 1 | 5 / 1 |
| Cable | Integrated, 2 m length | Integrated, 2 m length | Integrated, 2 m length | Integrated, 2 m length |
| Motor connector | HDB15(M) | HDB15(M) | HDB15(M) | HDB15(M) |
| DC motor | DCE1841 | DCE1841 | DCE1841 | DCE1841 |
| Weight, kg | 0.43 | 0.46 | 0.47 | 0.48 |
| Assemblies: / X-Y / Z | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 |
Description

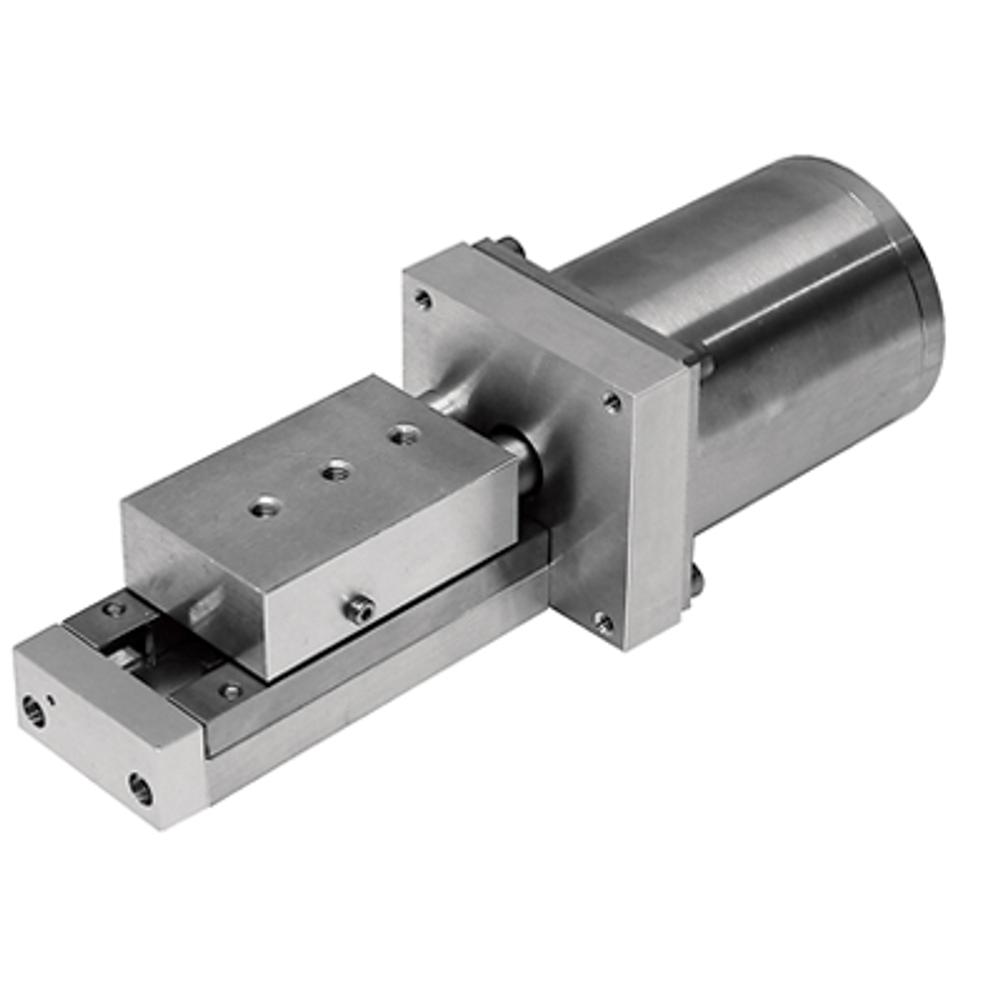

Vacuum compatible 961-0060V series stages are equipped with 10⁻⁶ Torr vacuum compatible DC motor, all mechanical parts are lubricated with high vacuum compatible grease. Aluminum parts are not anodized. Stages are cleaned in vacuum chamber and packed before dispatch, so that it can be immediately placed in vacuum chamber after purchase without spoiling the vacuum. Cleaning and packing are not included in price.
DC motor provides smoother motion and closed loop operation. High number of motor reduction gear provides high resolution, but low speed in turn. Ideal for applications demanding high accuracy, but not sensitive to speed limitations.
