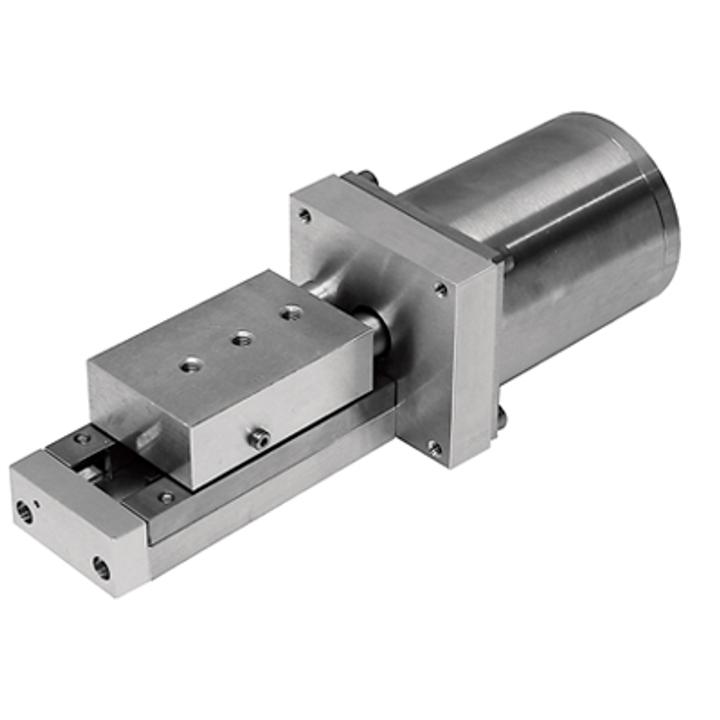

Vacuum Compatible Narrow Motorized Translation Stage with DC Motor 961-0060V SKU: 961-0062V
Vacuum compatible 961-0060V series stages are equipped with 10⁻⁶ Torr vacuum compatible DC motor, all mechanical parts are lubricated with high vacuum compatible grease. Aluminum parts are not anodized. Stages are cleaned in vacuum chamber and packed before dispatch, so that it…
Variant specifications
| Specification | Value |
|---|---|
| Travel range, mm | 10 |
Shared product specifications
These specifications apply across the Vacuum Compatible Narrow Motorized Translation Stage with DC Motor 961-0060V product family.
| Model | 961-0062V | 961-0064V | 961-0065V | 961-0066V |
|---|---|---|---|---|
| Travel range, mm | 10 | 20 | 25 | 30 |
| Lead screw pitch, mm | 0.25 | 0.25 | 0.25 | 0.25 |
| Resolution, μm | 0.1 | 0.1 | 0.1 | 0.1 |
| Minimal incremental motion, μm | 0.028 | 0.028 | 0.028 | 0.028 |
| Bi-directional Repeatability, μm | 0.4 | 0.4 | 0.4 | 0.4 |
| Max. speed* mm / s | 0.16 | 0.16 | 0.16 | 0.16 |
| Load capacity: / Horizontal, kg / Vertical, kg | 5 / 1 | 5 / 1 | 5 / 1 | 5 / 1 |
| Cable | Integrated, 2 m length | Integrated, 2 m length | Integrated, 2 m length | Integrated, 2 m length |
| Motor connector | HDB15(M) | HDB15(M) | HDB15(M) | HDB15(M) |
| DC motor | DCE1841 | DCE1841 | DCE1841 | DCE1841 |
| Weight, kg | 0.43 | 0.46 | 0.47 | 0.48 |
| Assemblies: / X-Y / Z | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 |
