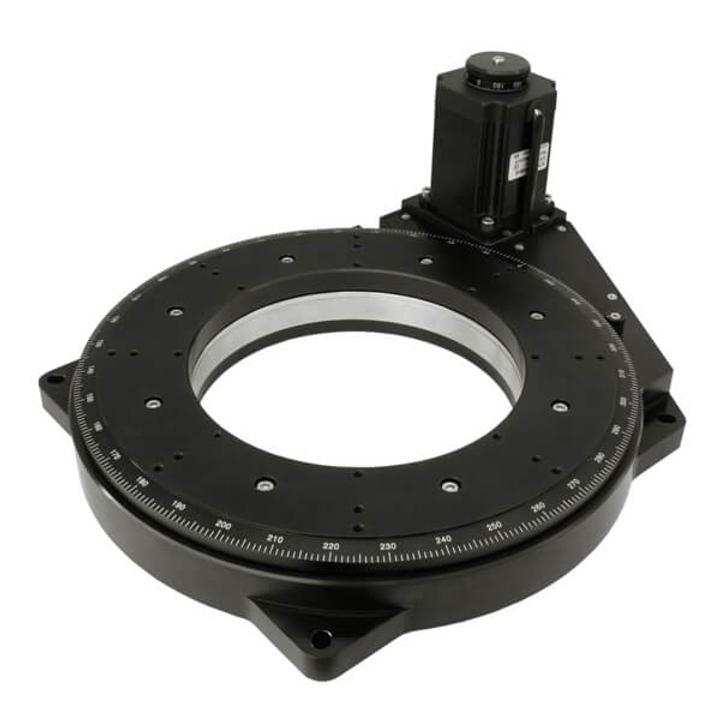

Large Motorized Rotation Stage 960-0250 SKU: 960-0250
• Clear aperture 152,4 mm (6") • Extremely huge load capacity • Relatively compact • High speed • Motor fixing on top and bottom This rotator is a perfect example of our personal approach with clients and custom design flexibility. The device was designed in cooperation with…
Variant specifications
| Specification | Value |
|---|---|
| Description | Stepper motor 5918 fixed on top |
Shared product specifications
These specifications apply across the Large Motorized Rotation Stage 960-0250 product family.
| Belt drive | 1:10 |
| Clear aperture | 152,4 mm (6") |
| Rotation range | 360° continuous |
| Resolution / in full step / in 1 / 8 step | 10,8’ / 81” |
| Repeatability / uni-directional / bi- directional | 6' / 15' |
| Accuracy | 15’ |
| Maximum speed | 120 turn / min |
| Load capacity / axial / radial / torque | 500 kg / 200 kg / 175 Nm |
| Limit switch (home) | optoelectronic |
| Motor connector | DB9(M) |
| Stepper motor | 5918 |
| Weight | 5,1 kg |
| Optocoupler home reference switch | 1 |
| Switch polarity | pushed is closed |
