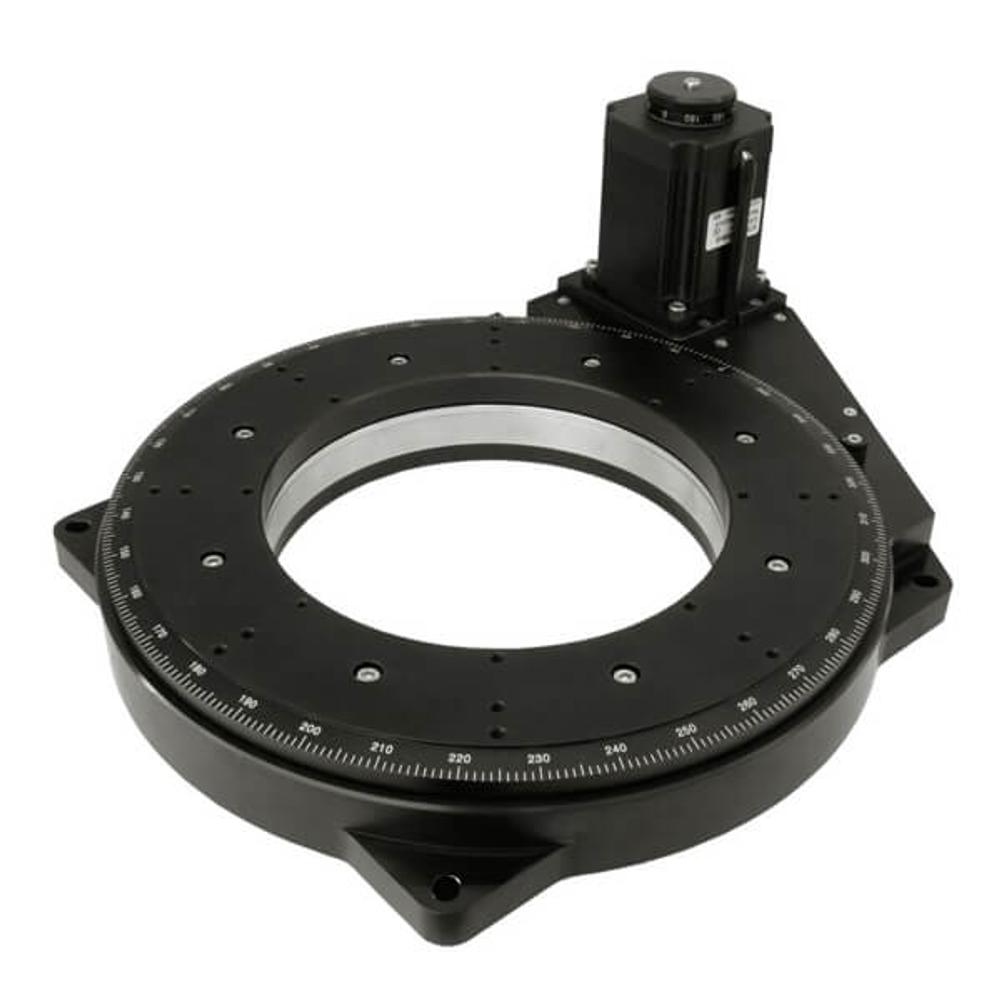

Large Motorized Rotation Stage 960-0250
• Clear aperture 152,4 mm (6") • Extremely huge load capacity • Relatively compact • High speed • Motor fixing on top and bottom This rotator is a perfect example of our personal approach with clients and custom design… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 960-0250 | Stepper motor 5918 fixed on top |
Out of stock
$4,353
|
| 960-0250-B | Stepper motor 5918 fixed on bottom |
Out of stock
$4,381
|
Specifications
| Belt drive | 1:10 |
| Clear aperture | 152,4 mm (6") |
| Rotation range | 360° continuous |
| Resolution / in full step / in 1 / 8 step | 10,8’ / 81” |
| Repeatability / uni-directional / bi- directional | 6' / 15' |
| Accuracy | 15’ |
| Maximum speed | 120 turn / min |
| Load capacity / axial / radial / torque | 500 kg / 200 kg / 175 Nm |
| Limit switch (home) | optoelectronic |
| Motor connector | DB9(M) |
| Stepper motor | 5918 |
| Weight | 5,1 kg |
| Optocoupler home reference switch | 1 |
| Switch polarity | pushed is closed |
Description
- Clear aperture 152,4 mm (6")
- Extremely huge load capacity
- Relatively compact
- High speed
- Motor fixing on top and bottom
This rotator is a perfect example of our personal approach with clients and custom design flexibility. The device was designed in cooperation with microchip manufacturing company for operations with silicon wafers. To provide better usability, we are offering stepper motors mounted either on top or on bottom.
