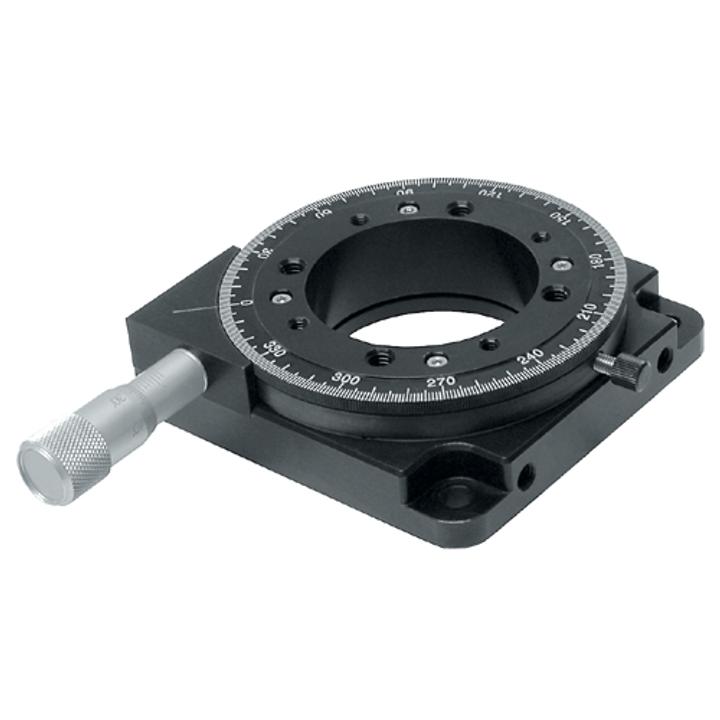

2 Inch Aperture Rotation Stage 860-0150 SKU: 860-0150
• Rolling ball movement • 360° rotation • 10° fine adjustment • Ø 50.8 mm (2") clear aperture • Inch version 860-0150E is available 2 inch Aperture Rotation Stage 860-0150 allows full 360° coarse rotation by hand. You may lock coarse adjustment. Then a fine adjustment can be…
Shared product specifications
These specifications apply across the 2 Inch Aperture Rotation Stage 860-0150 product family.
| Fine rotation range | 10°, resolution 1° arcmin |
| Coarse rotation range | 360°, resolution 1° |
| Wobble | 1 arcmin |
| Reading accuracy | 1 arcmin |
| Sensitivity | 20 arcsec |
| Load capacity: / horizontal / vertical | 15 kg / 7 kg |
Classification
| Type | translation|rotation |
