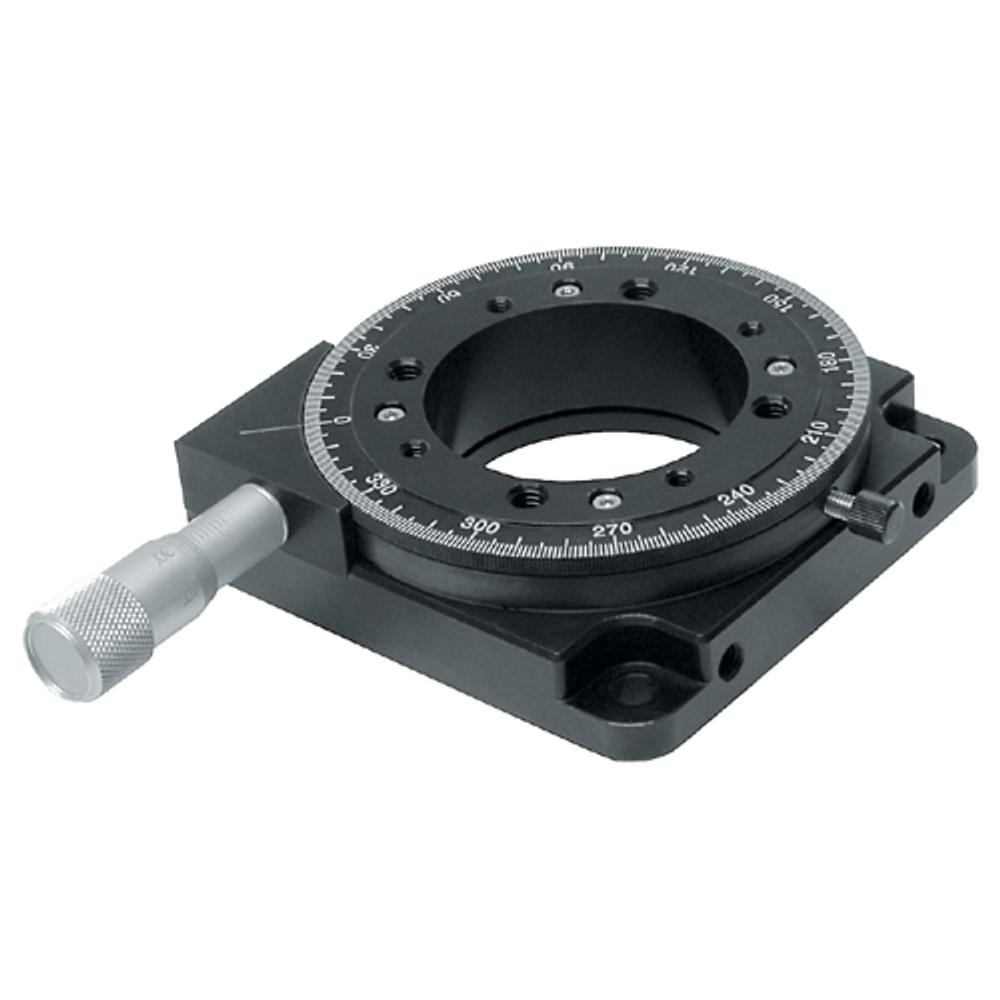

2 Inch Aperture Rotation Stage 860-0150
• Rolling ball movement • 360° rotation • 10° fine adjustment • Ø 50.8 mm (2") clear aperture • Inch version 860-0150E is available 2 inch Aperture Rotation Stage 860-0150 allows full 360° coarse rotation by hand. You… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 860-0150 |
Out of stock
$482
|
Specifications
| Fine rotation range | 10°, resolution 1° arcmin |
| Coarse rotation range | 360°, resolution 1° |
| Wobble | 1 arcmin |
| Reading accuracy | 1 arcmin |
| Sensitivity | 20 arcsec |
| Load capacity: / horizontal / vertical | 15 kg / 7 kg |
Classification
| Type | translation|rotation |
Description
- Rolling ball movement
- 360° rotation
- 10° fine adjustment
- Ø 50.8 mm (2") clear aperture
- Inch version 860-0150E is available
2 inch Aperture Rotation Stage 860-0150 allows full 360° coarse rotation by hand. You may lock coarse adjustment. Then a fine adjustment can be made over a range of 10° using the micrometer.
Angular position is read on 360° graduated scale on the platform, which is marked every 1°. The stage has a central aperture of Ø50.8 mm. For horizontal fastening three corners of the base have clearance holes for M6 screws.
