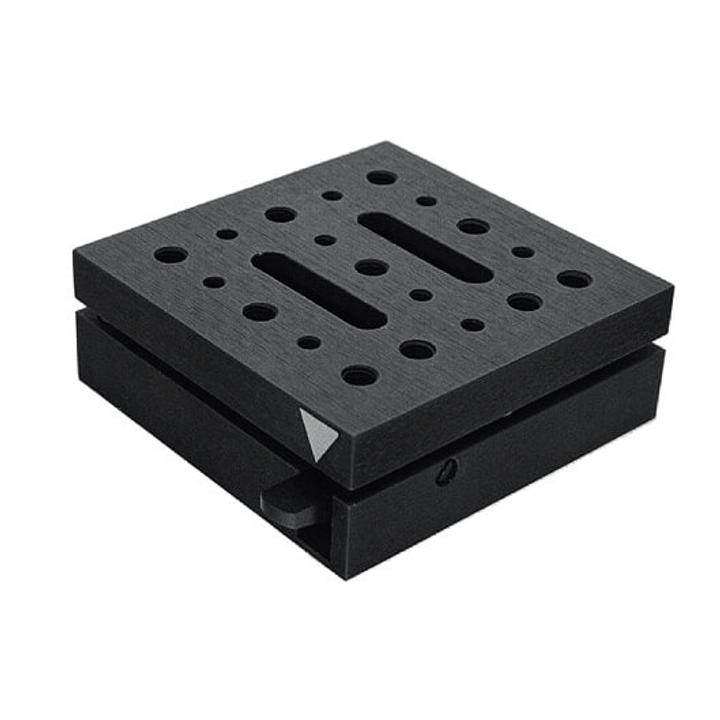

Magnetic Kinematic Base 850-0030 SKU: 850-0030
Magnetic Kinematic Base 850-0030 enables to lift the units mounted on the platform as a group. The platform is replaced with a repeatability of 50 µm. The platform has patterns of M4 and M6 mounting holes. Alternatively, fit M6 screws through its clearance slots from beneath.…
Variant specifications
| Specification | Value |
|---|---|
| Dimensions | 75x75 mm |
Shared product specifications
These specifications apply across the Magnetic Kinematic Base 850-0030 product family.
| Magnetic Kinematic Bases - Solidworks file | |
| Magnetic Kinematic Bases - DWG file | |
| Magnetic Kinematic Bases - STEP file |
Classification
| Type | base-positioner |
Product brochures
Shared documentation for the complete product family.
