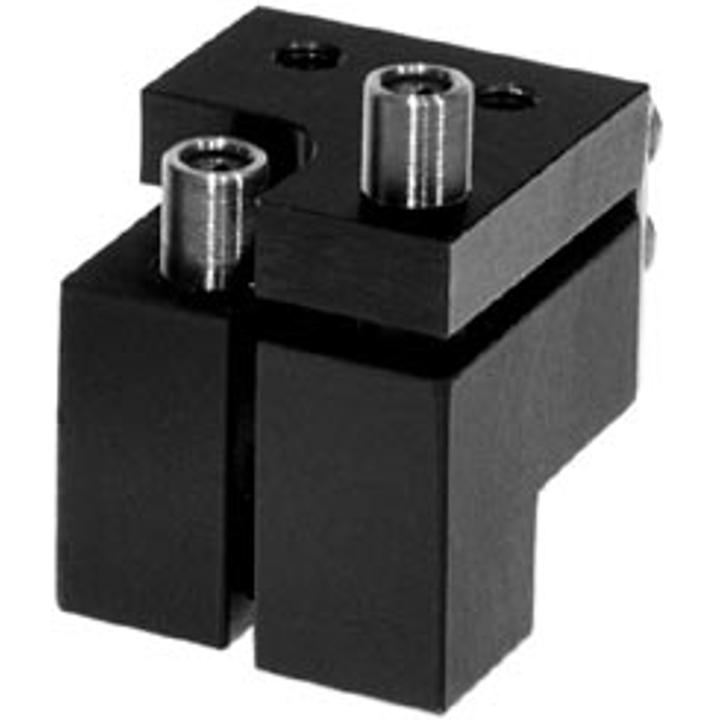

Miniature Tilt / Rotation Mount of Side Control 840-0093 SKU: 840-0093
The Miniature Tilt/Rotation Mount 840-0093 allows to rotate and to tilt a component. • 6° tilt and in-plane rotation • top side drive • compact design for dense optical schemes • stable design • material: black anodized aluminium A flat spring preloads three main…
Variant specifications
| Specification | Value |
|---|---|
| Tilt range, deg | 6 |
| Rotation range, deg | 6 |
| Sensitivity, arcsec | 10 |
Shared product specifications
These specifications apply across the Miniature Tilt / Rotation Mount of Side Control 840-0093 product family.
| Miniature Tilt / Rotation Mount of Side Control - Solidworks file | |
| Miniature Tilt / Rotation Mount of Side Control - DWG file | |
| Miniature Tilt / Rotation Mount of Side Control - STEP file |
