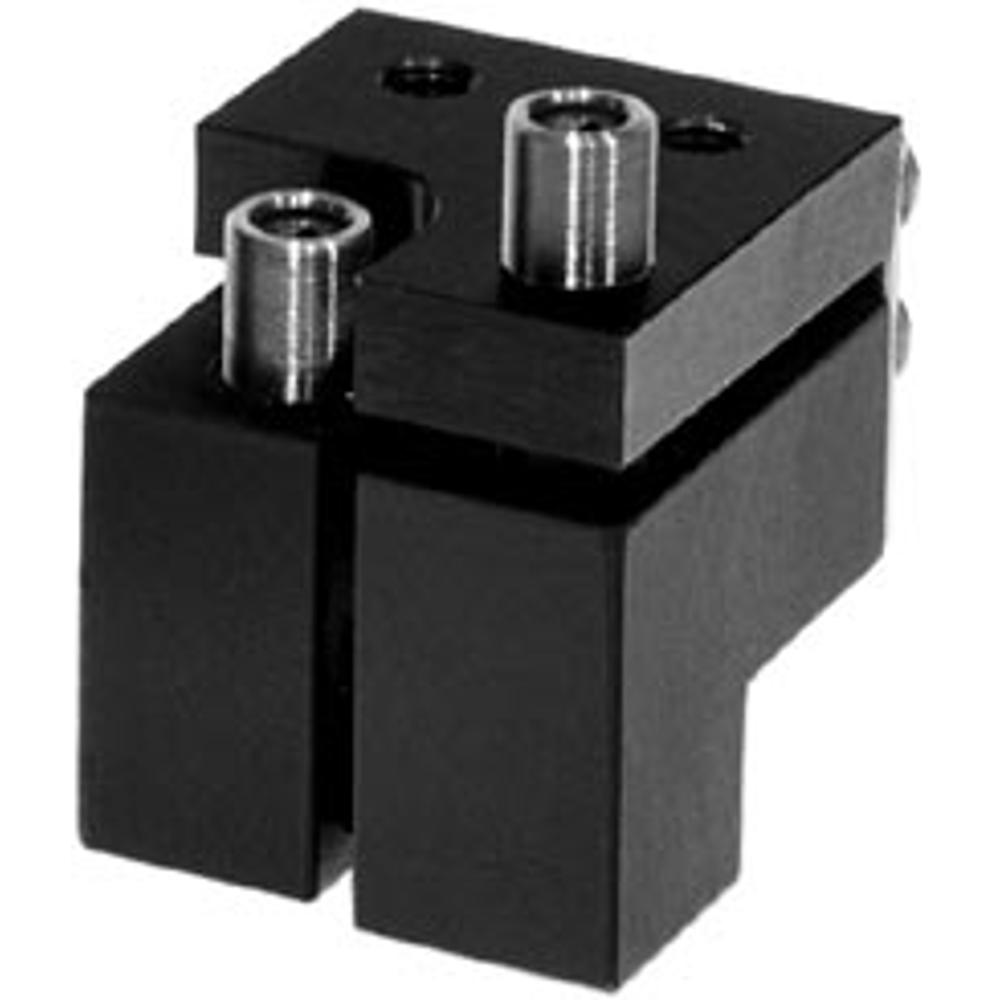

Miniature Tilt / Rotation Mount of Side Control 840-0093
The Miniature Tilt/Rotation Mount 840-0093 allows to rotate and to tilt a component. • 6° tilt and in-plane rotation • top side drive • compact design for dense optical schemes • stable design • material: black… Read more →
Listed in
Order
Spec at a glance
| Tilt range, deg | 6 |
| Rotation range, deg | 6 |
| Sensitivity, arcsec | 10 |
| SKU | Tilt range, deg · Rotation range, deg · Sensitivity, arcsec | |
|---|---|---|
| 840-0093 | 6·6·10 |
Out of stock
$127
|
Specifications
| Miniature Tilt / Rotation Mount of Side Control - Solidworks file | |
| Miniature Tilt / Rotation Mount of Side Control - DWG file | |
| Miniature Tilt / Rotation Mount of Side Control - STEP file |
Description
The Miniature Tilt/Rotation Mount 840-0093 allows to rotate and to tilt a component.
- 6° tilt and in-plane rotation
- top side drive
- compact design for dense optical schemes
- stable design
- material: black anodized aluminium

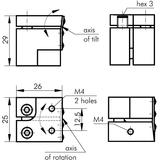

A flat spring preloads three main pieces of the mount which make it bend on two separate pivot axes. Mounts of other designs have a common pivot point for all adjustments. The design ensures that both adjustment movements are independent and do not cause mutual distortions therefore adjustment scheme is very close to an ideal kinematic model.
Mounting surface with two M4 holes in the platform is on the same side with the adjustment screws. Base of the mount has an M4 hole for mounting to other positioners.
Adjustment screws have a pitch of 0.25 mm. Each screw can be driven with a 3 mm hex key.
