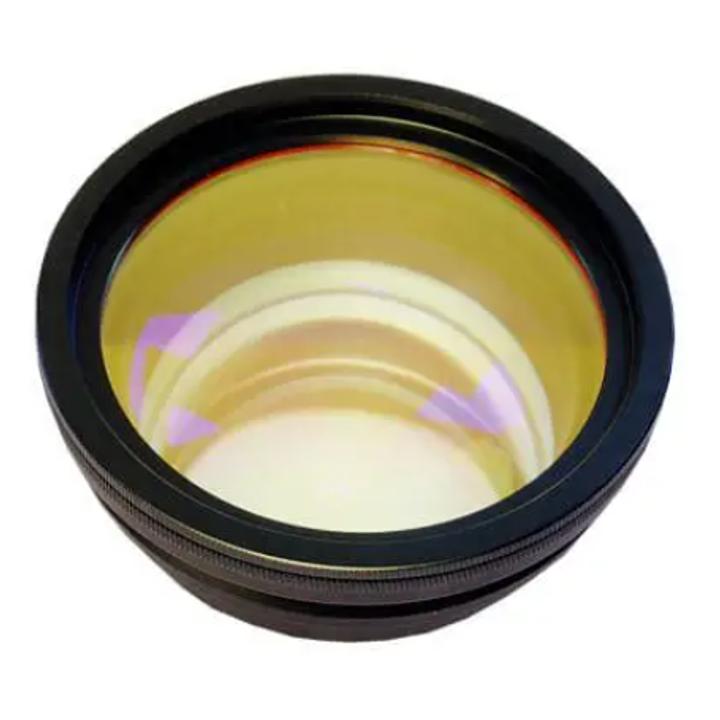

F-Theta Lens for 355 nm SKU: 150-1003
• Designed for 355 nm wavelength • Other wavelengths of 1064 nm or 532 nm are available • Lens diameter - 90 or 104 mm The F-Theta Lens is designed to provide a flat field on the image plane for scanning and engraving applications where a high power laser and set of rotating…
Variant specifications
| Specification | Value |
|---|---|
| Lens Diameter | 90 mm |
| Focus length | 100 mm |
| Working distance | 136 mm |
| Scan field | 70x70 mm2 |
| Max. Scan angle | ±25° |
| Spot size | 10 µm |
