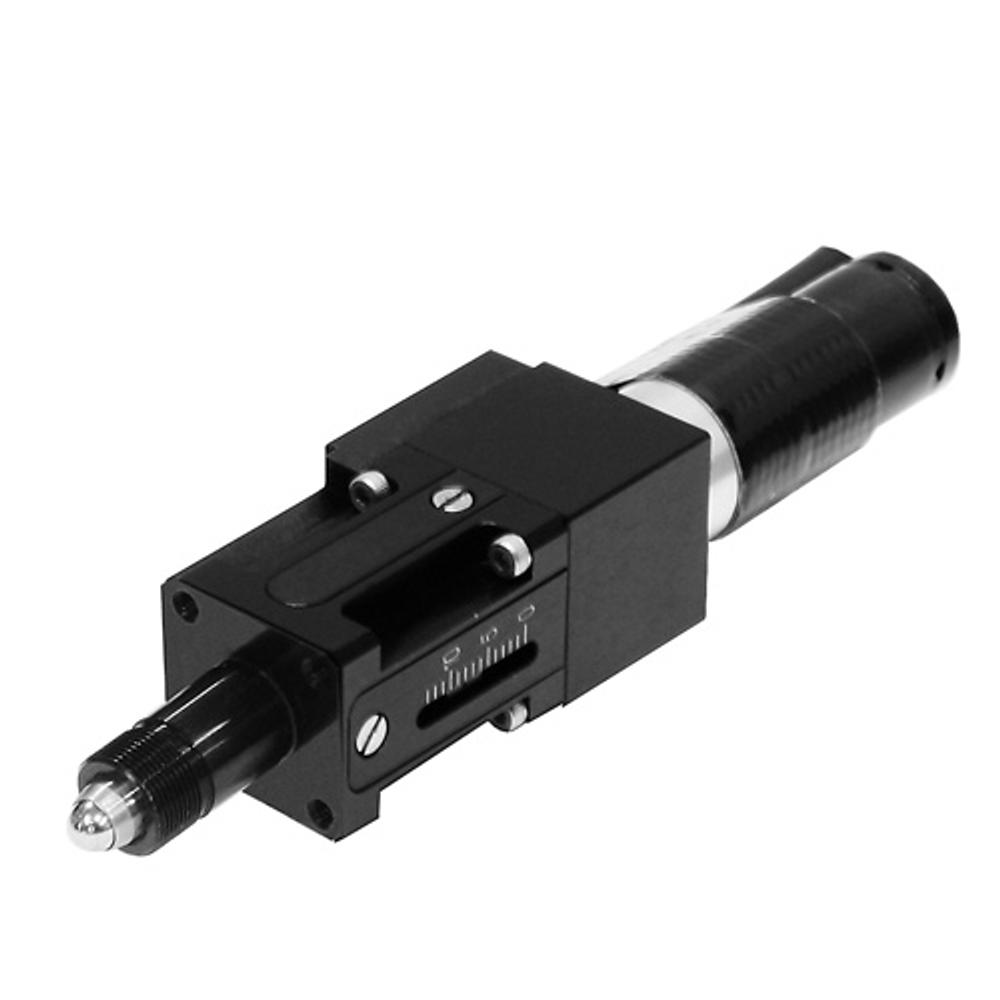

Ultra-High Resolution Compact Motorized Actuator (DC Motor) 970-0067
• 13 mm or 25 mm travel range. • Resolution is 0.1 μm • Ultra-High Resolution Compact Motorized Actuator with Vacuum compatible DC motor 970-0067V is available.
Listed in
Configure & order — pick a catalog variant or configure your own
L
Any
or
L1
Any
L2
Any
L3
Any
3
catalog variants — refine the spec to narrow it down.
| SKU | L · L3 · L1 · L2 | |
|---|---|---|
| 970-0067-10* | 104.5...117.5 mm·40 mm·10 mm·4.5 mm |
Out of stock
—
|
| 970-0067-15 | 109.5...122.5 mm·50 mm·15 mm·7 mm |
Out of stock
$680
|
| 970-0067-25 | 119.5...144.5 mm·60 mm·15 mm·7 mm |
Out of stock
$726
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Model | 970-0067-15 | 970-0067-25 |
|---|---|---|
| Travel range | 13 mm | 25 mm |
| Minimal Incremental Motion | 0.01 μm | 0.01 μm |
| Resolution | 0.0281 μm | 0.0281 μm |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Max.speed | 0.15 mm / s | 0.15 mm / s |
| Nominal force | 30 N | 30 N |
| Cable | integrated, 1.2 m length | integrated, 1.2 m length |
| Motor connector | IDC-10F | IDC-10F |
| DC motor | DCE1524 | DCE1524 |
| Weight | 0.12 kg | 0.15 kg |
Description
- 13 mm or 25 mm travel range.
- Resolution is 0.1 μm
- Ultra-High Resolution Compact Motorized Actuator with Vacuum compatible DC motor 970-0067V is available.
