Motorized Mirror Mounts 940-0050

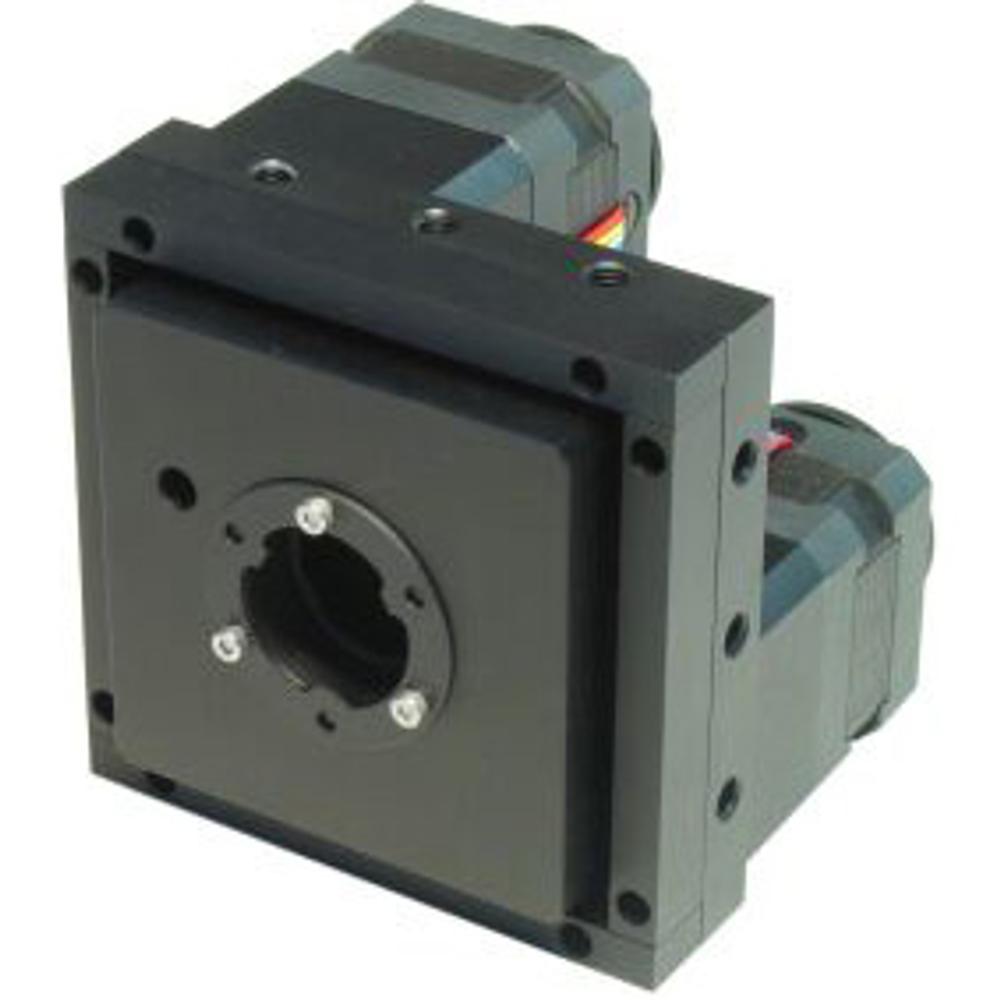

Motorized Mirror Mounts 940-0050 are designed for precise angular alignment of optical elements. The platform is tilted about two axes, while a retaining ring keeps optics in a non-through mounting opening of the… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Optics diameter · Optics clear aperture | |
|---|---|---|
| 940-0051 | ø 25.4 mm (1")·ø 21.4 mm |
Out of stock
$664
|
| 940-0053 | ø 40 mm·ø 36 mm |
Out of stock
$664
|
| 940-0055 | ø 50.8 mm (2")·ø 46.8 mm |
Out of stock
$664
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
Specifications
| Tilt range | ±5° both axes |
| Visual reading | dial knobs graduated in 200 steps per revolution |
| Resolution | 0.0016° (0°00'06") per step |
| Optics thickness | 10 mm (retaining rings for custom thickness available) |
| Optics accepted diameter (D), clear aperture (A): 940-0051 940-0053 940-0055 | D = 25.4 mm (1”), A = 21.4 mm D = 40 mm, A = 36 mm D = 50.8 mm (2”), A = 46.8 mm (custom sizes are available) |
| Material | black anodized aluminium |
| Motor connector | DB9(M) |
| Motor | 4233 |
| Mechanical end limit switches | 2 per motor |
| Switch polarity | pushed is closed |
| Recommended controller | 980-0942 |
Description
Motorized Mirror Mounts 940-0050 are designed for precise angular alignment of optical elements. The platform is tilted about two axes, while a retaining ring keeps optics in a non-through mounting opening of the platform. The ring is fixed by 3 screws. It has 3 dents with which it clamps optics against similar 3 rests in the platform. The dents are exactly opposite to the rests – this minimizes deformation.
As a standard motorized translation and rotation stages are provided with a damper. Revolution sensor and encoder are availbale under request. More information.
Controller and power supply are not included and have to be ordered separately.
