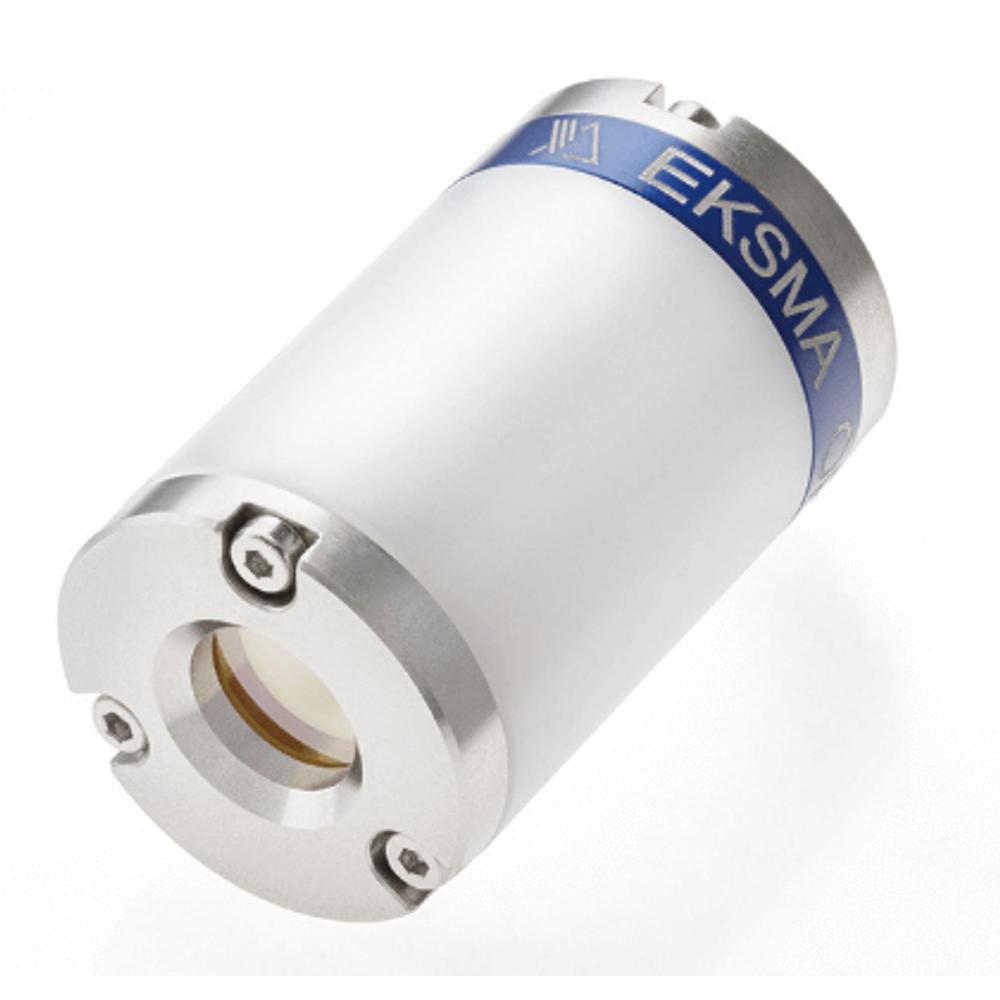

KTP Pockels Cells

Applications: • Q-switching for high repetition rate lasers 1 kHz – 6 MHz • Pulse picking of high repetition rate lasers Features: • More than twice smaller HV requirement comparing to double BBO Pockels cells •… Read more →

From $3,300 Configure & order →

Listed in

Electro-Optics and Laser Electronics › Pockels Cells › RTP Pockels Cells

Configure & order — pick a catalog variant or configure your own

Clear aperture Any

Catalog band: 3.5–5.5 mm

Manufacturable: 3.5–5.5 mm

3.5 mm 5.5 mm

or mm

Half Wave Voltage Any

Wavelength Any

Catalog band: 800.0–1560.0 nm

Manufacturable: 800.0–1560.0 nm

800.0 nm 1560.0 nm

or nm

6 catalog variants — refine the spec to narrow it down.

SKU	Half Wave Voltage · Wavelength · Clear aperture · Clear Aperture
PCR4-1064	<1.8 kV DC·1064 nm·Ø3.5 mm	1 in stock Ships in: 2–5 calendar days $3,300
PCR4-1560-NW	<2.6 kV DC·1560 nm·Ø3.5 mm	Out of stock Ships in: 137–140 calendar days $3,300
PCR4-800	<1.4 kV DC·800 nm·Ø3.5 mm	1 in stock Ships in: 2–5 calendar days $3,300
PCR6-1064	<2.8 kV DC·1064 nm·Ø5.5 mm	2 in stock Ships in: 2–5 calendar days $4,695
PCR6-1560	<4.1 kV DC·1560 nm·Ø5.5 mm	Out of stock —
PCR6-800	<2.1 kV DC·800 nm·Ø5.5 mm	Out of stock Ships in: 137–140 calendar days $4,695

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.

Specifications

Model	PCR4	PCR6
Clear aperture	Ø3.5 mm	Ø5.5 mm
Crystal size (WxHxL)	4 x 4 x 10 mm	6 x 6 x 10 mm
Quantity of crystals	2	2
Half-wave voltage (@ 1064 nm)	<1.8 kV DC	<2.8 kV DC
Capacitance	4 pF	<6 pF
Optical transmission	>98 %	>98 %
Contrast ratio	>1:500	>1:500
Cell size	Ø25.4 x 42.2 mm	Ø25.4 x 42.2 mm
