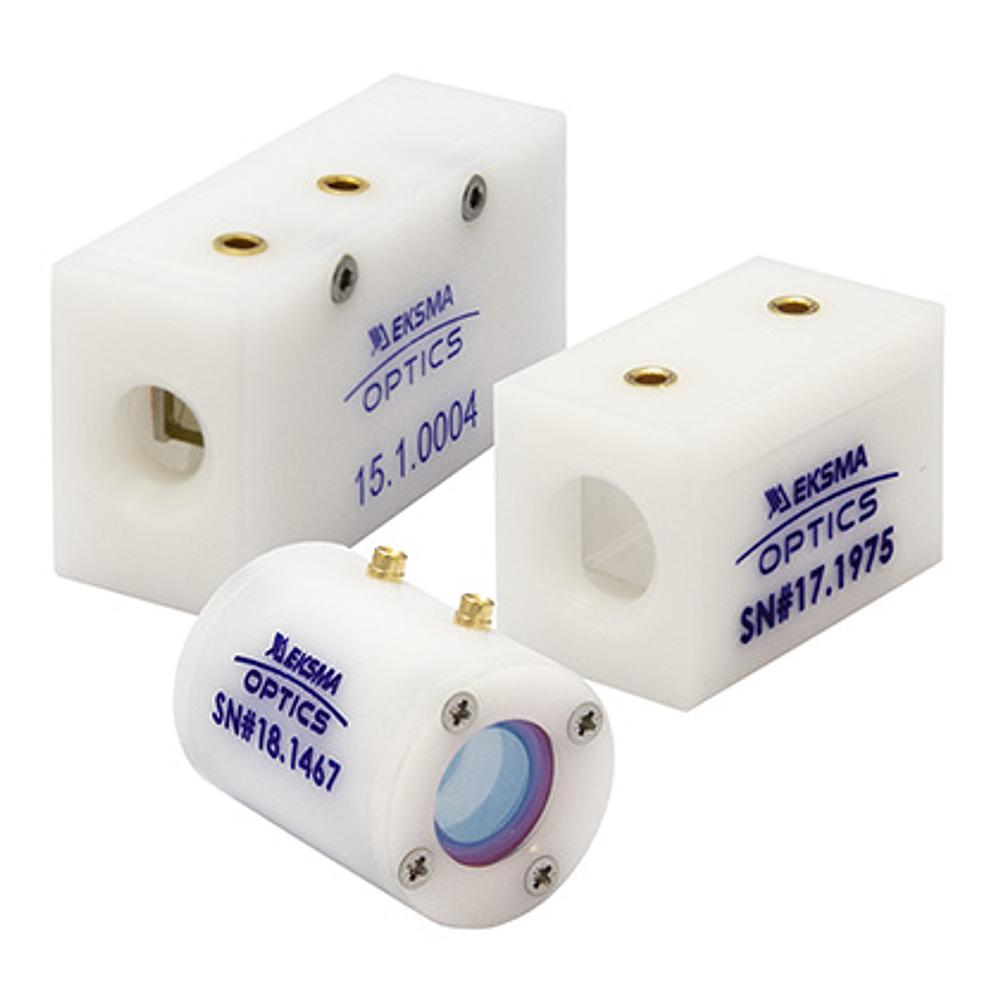

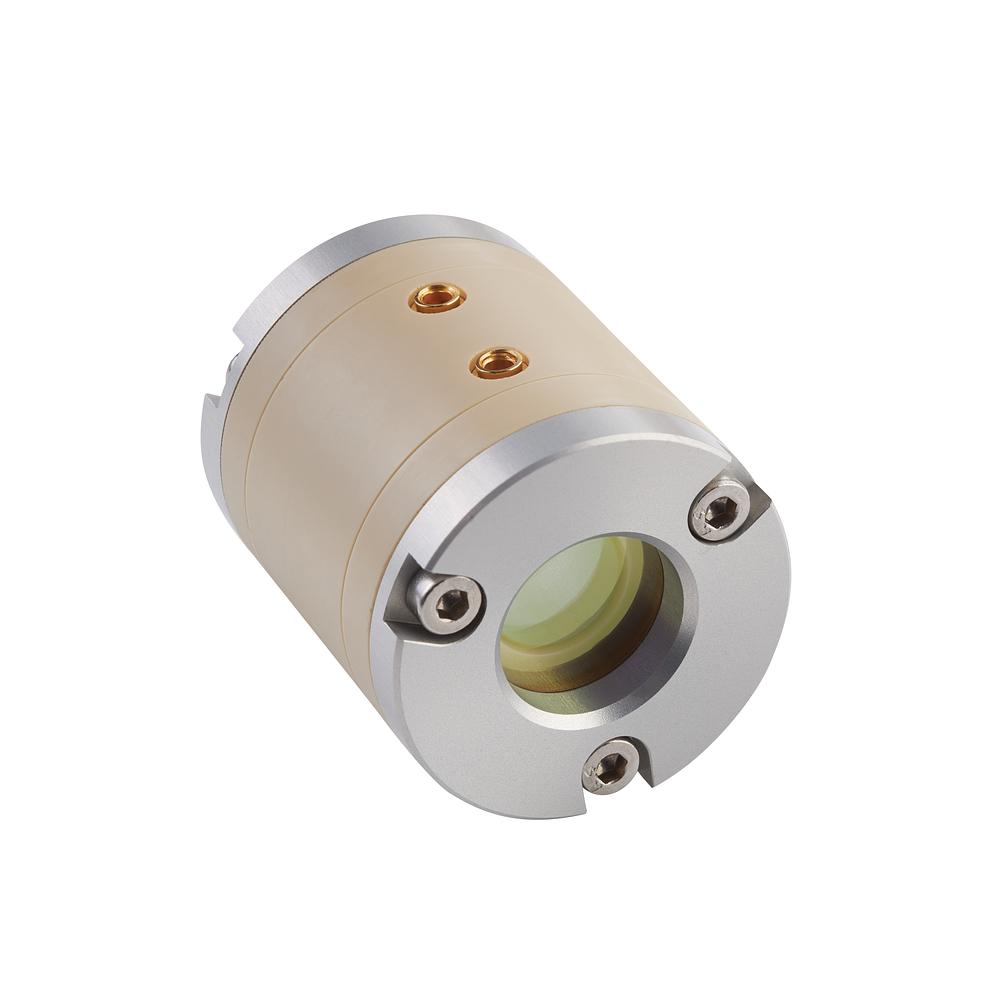

DKDP Pockels Cells
Pockels cells are used to change the polarization state of light with a voltage applied to the electrodes of electro-optic crystal such as DKDP (KD*P). DKDP (KD*P) based Pockels cells are used for Q-switching… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Clear aperture · Wavelength · Quarter wave voltage · Group | |
|---|---|---|
| D-compact/12-1064 | ø 11 mm·1064 nm·<3.4 kV DC·Compact DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$1,680
|
| D-compact/9-1064 | ø 8 mm·1064 nm·<3.4 kV DC·Compact DKDP Pockels Cells |
2 in stock
Ships in: 2–5 calendar days
$1,440
|
| D-mini/8-800 | ø 7 mm·800 nm·<2.7 kV DC·Mini DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$1,320
|
| D-mini/9-1064 | ø 8 mm·1064 nm·<3.4 kV DC·Mini DKDP Pockels Cells |
2 in stock
Ships in: 2–5 calendar days
$1,440
|
| PC10S-1064 | 9.5 x 9.5 mm·1064 nm·<3.4 kV DC·Standard Rectangular DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$1,788
|
| PC12SR-1/1-1064 | ø 11 mm·1064 nm·<3.4 kV DC·Standard Round DKDP Pockels Cells |
23 in stock
Ships in: 2–5 calendar days
$1,680
|
| PC12SR-1/1-800 | ø 11 mm·800 nm·<2.7 kV DC·Standard Round DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$1,680
|
| PC12SR-515 | ø 11 mm·515 nm·<1.7 kV DC·Standard Round DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$1,680
|
| PC12SR-532 | ø 11 mm·532 nm·<1.7 kV DC·Standard Round DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$1,680
|
| PC12SR-694 | ø 11 mm·694 nm·<2.3 kV DC·Standard Round DKDP Pockels Cells |
36 in stock
Ships in: 2–5 calendar days
$1,680
|
| PC12SR-755 | ø 11 mm·755 nm·<2.5 kV DC |
Out of stock
$1,680
|
| PC14x45SR-1064 | ø 13.6 mm·1064 nm·±1.7 kV DC·Standard Round DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$3,108
|
| PC20SR-2/2-1064 | ø 18 mm·1064 nm·<3.4 kV DC·Standard Round DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$4,428
|
| PC22SR-2/2-1064 | ø 20 mm·1064 nm·<3.4 kV DC·Standard Round DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$4,644
|
| PC35x53SR-2/2-1064 | ø 31 mm·1064 nm·<3.4 kV DC·Standard Round DKDP Pockels Cells |
Out of stock
Ships in: 67–70 calendar days
$14,280
|
| PC5D-1/1-1064 | 4.5 x 4.5 mm·1064 nm·<1.7 kV DC |
Out of stock
$1,380
|
| PC5S-1/1-1064 | 4.5 x 4.5 mm·1064 nm·<3.4 kV DC |
Out of stock
$900
|
| PC5S21-1/1-1064 | 4.5 x 4.5 mm·1064 nm·<3.4 kV DC·Standard Rectangular DKDP Pockels Cells |
1 in stock
Ships in: 2–5 calendar days
$900
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
STANDARD RECTANGULAR KD*P POCKELS CELLS
| Model | PC5S-1064 | PC10S-1064 |
|---|---|---|
| Clear aperture, mm | 4.5x4.5 | 9.5x9.5 |
| Crystal size, (WxHxL)mm | 5x5x16 | 10x10x25 |
| Quantity of crystals | 1 | 1 |
| λ / 2 voltage 1064nm, kV DC | <6.8 | <6.8 |
| Capacitance, pF | 1.5 | 4 |
| Optical transmission, % | >97 | >97 |
| Contrast ratio¹⁾ | > 1:2000 | >1:2000 |
| Cell size, mm | 18x14x25 | 22x18x33 |
STANDARD ROUND KD*P POCKELS CELLS
| Model | PC12SR-1064 | PC12SR-532 | PC12SR-694 | PC14x45SR-1064 |
|---|---|---|---|---|
| Clear aperture, mm | Ø 11 | Ø 11 | Ø 11 | Ø 13.6 |
| Crystal size, (WxHxL)mm | Ø 12x24 | Ø 12x24 | Ø 12x24 | Ø 14x45 |
| Quantity of crystals | 1 | 1 | 1 | 1 |
| λ / 2 voltage | @1064 nm / <6.8 kV DC | @532 nm / <3.5 kV DC | @694 nm / <4.5 kV DC | @1064 nm / < ±3.4 kV DC |
| Capacitance, pF | 6 | 6 | 6 | 10 |
| Optical transmission, % | >97 | >96 | >97 | >97 |
| Contrast ratio¹⁾ | >1:2000 | >1:2000 | >1:2000 | >1:2000 |
| Cell size, mm | Ø 35x41.6 | Ø 35x41.6 | Ø 35x41.6 | Ø 35x75 |
| Model | D-Compact / 9-1064 | D-Compact / 12-1064 |
|---|---|---|
| Clear aperture, mm | Ø 8 | Ø1 1 |
| Crystal size, (WxHxL)mm | Ø 9x20 | Ø 12x24 |
| Quantity of crystals | 1 | 1 |
| λ / 2 voltage @ 1064 nm, kV DC | <6.8 | <6.8 |
| Capacitance, pF | 6 | 6 |
| Optical transmission, % | >97 | >97 |
| Contrast ratio¹⁾ | >1:2000 | >1:2000 |
| Cell size, mm | Ø 25.4x35 | Ø 25.4x39 |
| Model | D-mini / 8-800 | D-mini / 9-1064 |
|---|---|---|
| Clear aperture, mm | Ø 7 | Ø 8 |
| Crystal size, (WxHxL) mm | Ø 8x12 | Ø 9x20 |
| Quantity of crystals | 1 | 1 |
| λ / 2 voltage | @ 800 nm nm / <5 kV DC | @ 1064 nm / <6.8 kV DC |
| Capacitance, pF | 3 | 6 |
| Optical transmission, % | >97 | >97 |
| Contrast ratio¹⁾ | >1:2000 | >1:2000 |
| Cell size, mm | Ø 19x19 | Ø 19x25.4 |
Description
Pockels cells are used to change the polarization state of light with a voltage applied to the electrodes of electro-optic crystal such as DKDP (KD*P).
DKDP (KD*P) based Pockels cells are used for Q-switching applications from the 400 nm to about 1.1 μm. Most of commercial flashlamp pumped Nd:YAG lasers and low repetition rate DPSS Nd:YAG lasers are equipped with DKDP (KD*P) based Pockels cells for laser cavity Q-switching.
Features of DKDP (KD*P) Pockels cells:
- Low absorption and high deuteration material
- High damage threshold dielectric AR coatings for requested wavelengths
- Operating voltage does not depend on crystal aperture, so large apertures are available
- Suitable for fs applications due to low GVD
- Single-crystal based three terminal design available upon request
Applications:
- Q-switching of flashlamp pumped high energy and low repetition rate diode pumped lasers
- Pulse picking
- Laser cavity dumping
Electro-optical DKDP (KD*P) crystals used in DKDP (KD*P) Pockels cells have high laser power resistant dielectric AR coatings. Additionally, PC12SR, D-compact and D-mini series Pockels cells have AR coated windows for improved lifetime and protection in less user friendly environment.
