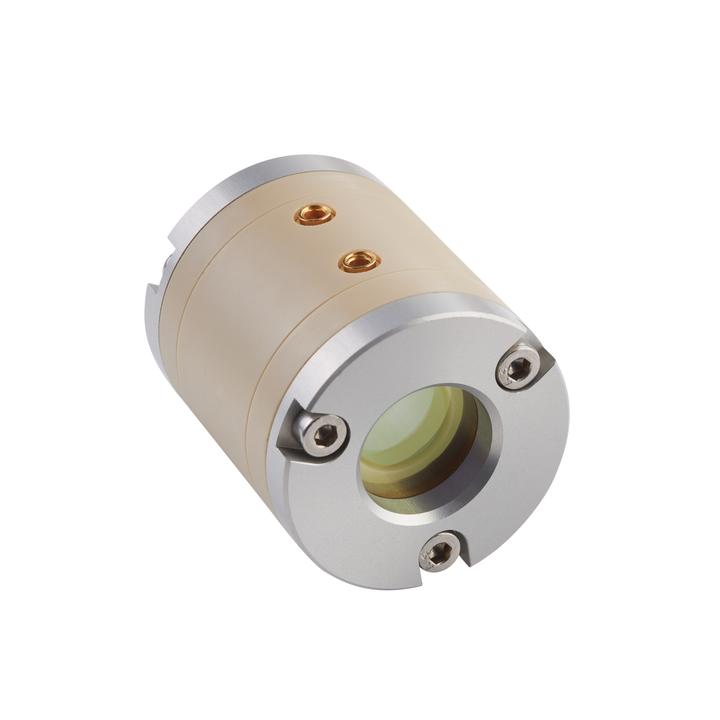

DKDP Pockels Cells SKU: PC12SR-515
Pockels cells are used to change the polarization state of light with a voltage applied to the electrodes of electro-optic crystal such as DKDP (KD*P). DKDP (KD*P) based Pockels cells are used for Q-switching applications from the 400 nm to about 1.1 μm. Most of commercial…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Longitudinal Field PC |
| Material | DKDP |
| Shape Type | Round |
| Design wavelength | 515 nm |
| Quarter-wave DC voltage | 1.7 kV |
| Transmission, % | 97 % - 100 % |
| Extinction ratio | 2000:1 |
| Sealing | Sealed |
| Crystal Size, mm | Ø 12x24 |
