Femtoline Thin AR Lenses @ 700-900 nm

Femtoline Thin AR Lenses @ 700-900 nm

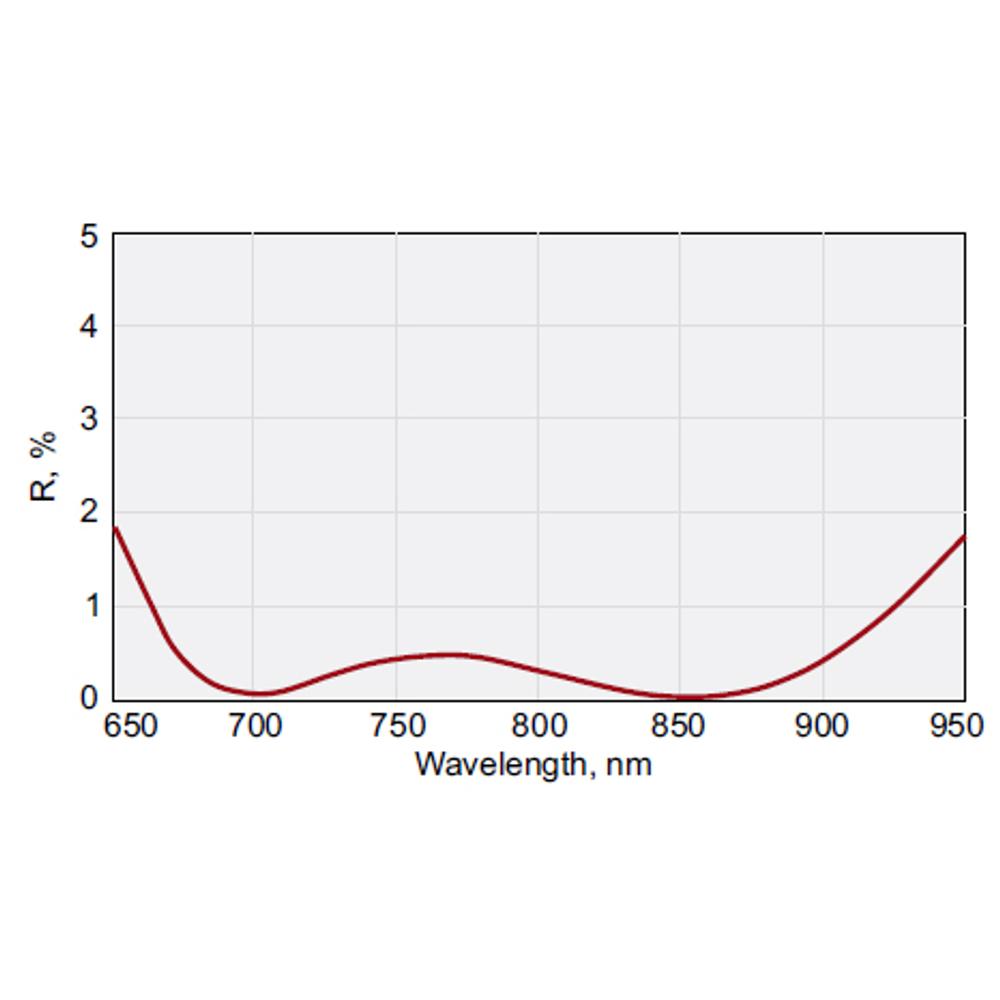

• Broadband Anti-Reflective coated AR/AR@700-900 nm • Very thin thickness:edge thickness varies from 0,5~1,9 mm • Centre thickness varies from 1~3 mm • Plano-Convex or Plano-Concave type • uncoated, AR coated @… Read more →

From $139 Configure & order →

Volume discount

  • 5–9 units −10%
  • 10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Listed in

Configure & order — pick a catalog variant or configure your own

Type Any
or
Diameter Any
Catalog band: 12.5–50.8 mm
Manufacturable: 12.5–50.8 mm
12.5 mm 50.8 mm
or mm
CT Any
Catalog band: 1.0–14.0 mm
Manufacturable: 1.0–14.0 mm
1.0 mm 14.0 mm
or mm
ET Any
Catalog band: 0.5–5.4 mm
Manufacturable: 0.5–5.4 mm
0.5 mm 5.4 mm
or mm
Focal Length @800nm Any
Catalog band: -500.0–6000.0 mm
Manufacturable: -500.0–6000.0 mm
-500.0 mm 6000.0 mm
or mm
Reflection Any
or
Material UVFS
145 catalog variants — refine the spec to narrow it down.
SKU Focal Length @800nm · ET · CT · Group · Diameter · Type · Reflection · Material
110-1106ET+ARB800 30 mm·1.0 mm·2.5 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1106ET+ARB800HT 30 mm·1.0 mm·2.5 mm·12.7 mm·pl/cx·R<0.1%·UVFS
Out of stock
—
110-1106MT+ARB800 30 mm·1.0 mm·2.5 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1108ET+ARB800 40 mm·0.7 mm·1.8 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1108ET+ARB800HT 40 mm·0.7 mm·1.8 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$202
110-1108MT+ARB800 40 mm·0.7 mm·1.8 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1109ET+ARB800 50 mm·1.0 mm·1.9 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1109ET+ARB800HT 50 mm·1.0 mm·1.9 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
110-1109MT+ARB800 50 mm·1.0 mm·1.9 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1111ET+ARB800 75 mm·1.2 mm·1.8 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$139
110-1111ET+ARB800HT 75 mm·1.2 mm·1.8 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
110-1111MT+ARB800 75 mm·1.2 mm·1.8 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1115ET+ARB800 100 mm·0.9 mm·1.5 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$139
110-1115ET+ARB800HT 100 mm·0.9 mm·1.5 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
110-1115MT+ARB800 100 mm·0.9 mm·1.5 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1117ET+ARB800 125 mm·1.0 mm·1.4 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1117ET+ARB800HT 125 mm·1.0 mm·1.4 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
110-1117MT+ARB800 125 mm·1.0 mm·1.4 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1119ET+ARB800 150 mm·1.2 mm·1.5 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$139
110-1119ET+ARB800HT 150 mm·1.2 mm·1.5 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
110-1119MT+ARB800 150 mm·1.2 mm·1.5 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1121ET+ARB800 175 mm·1.0 mm·1.2 mm·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1121ET+ARB800HT 175 mm·1.0 mm·1.2 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
110-1121MT+ARB800 175 mm·1.0 mm·1.2 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1123ET+ARB800 200 mm·1.0 mm·1.2 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1123ET+ARB800HT 200 mm·1.0 mm·1.2 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
110-1123MT+ARB800 200 mm·1.0 mm·1.2 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1126ET+ARB800 250 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1126ET+ARB800HT 250 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$202
110-1126MT+ARB800 250 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1129ET+ARB800 300 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$139
110-1129ET+ARB800HT 300 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
110-1129MT+ARB800 300 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1133ET+ARB800 400 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1133ET+ARB800HT 400 mm·1.0 mm·1.1 mm·12.7 mm·pl/cx·R<0.1%·UVFS
Out of stock
—
110-1133MT+ARB800 400 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1135ET+ARB800 450 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1135ET+ARB800HT 450 mm·1.0 mm·1.1 mm·12.7 mm·pl/cx·R<0.1%·UVFS
Out of stock
—
110-1135MT+ARB800 450 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1137ET+ARB800 500 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
110-1137ET+ARB800HT 500 mm·1.0 mm·1.1 mm·Thin Plano-Convex Lenses (ø12.7 mm)·12.7 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$202
110-1137MT+ARB800 500 mm·1.0 mm·1.1 mm·12.5 mm·pl/cx·R<0.5%·UVFS
Out of stock
—
110-1205ET+ARB800 50 mm·1.0 mm·4.9 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$162
110-1205ET+ARB800HT 50 mm·1.0 mm·4.9 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
110-1209ET+ARB800 75 mm·0.5 mm·3.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$162
110-1209ET+ARB800HT 75 mm·0.5 mm·3.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$225
110-1211ET+ARB800 100 mm·0.7 mm·2.5 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$162
110-1211ET+ARB800HT 100 mm·0.7 mm·2.5 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
110-1216ET+ARB800 125 mm·0.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
2 in stock Ships in: 2–5 calendar days
$162
110-1216ET+ARB800HT 125 mm·0.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
110-1217ET+ARB800 150 mm·0.8 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
110-1217ET+ARB800HT 150 mm·0.8 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
110-1219ET+ARB800 200 mm·1.1 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
110-1219ET+ARB800HT 200 mm·1.1 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
2 in stock Ships in: 2–5 calendar days
$225
110-1223ET+ARB800 300 mm·1.4 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$162
110-1223ET+ARB800HT 300 mm·1.4 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
4 in stock Ships in: 2–5 calendar days
$225
110-1225ET+ARB800 350 mm·1.5 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
110-1225ET+ARB800HT 350 mm·1.5 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
110-1227ET+ARB800 400 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
110-1227ET+ARB800HT 400 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$225
110-1231ET+ARB800 450 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
110-1231ET+ARB800HT 450 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
110-1233ET+ARB800 500 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$162
110-1233ET+ARB800HT 500 mm·1.6 mm·2.0 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$225
110-1245ET+ARB800 1000 mm·1.3 mm·1.5 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
3 in stock Ships in: 2–5 calendar days
$162
110-1245ET+ARB800HT 1000 mm·1.3 mm·1.5 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
2 in stock Ships in: 2–5 calendar days
$225
110-1255ET+ARB800 1500 mm·1.3 mm·1.4 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
110-1255ET+ARB800HT 1500 mm·1.3 mm·1.4 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
110-1265ET+ARB800 2000 mm·1.3 mm·1.4 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
110-1265ET+ARB800HT 2000 mm·1.3 mm·1.4 mm·Thin Plano-Convex Lenses (ø25.4 mm)·25.4 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$225
110-1505ET+ARB800 75 mm·2.5 mm·14.0 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1505ET+ARB800HT 75 mm·2.5 mm·14.0 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1509ET+ARB800 100 mm·2.5 mm·10.3 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1509ET+ARB800HT 100 mm·2.5 mm·10.3 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1511ET+ARB800 150 mm·2.5 mm·7.4 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1511ET+ARB800HT 150 mm·2.5 mm·7.4 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1515ET+ARB800 200 mm·2.5 mm·6.1 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1515ET+ARB800HT 200 mm·2.5 mm·6.1 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1519ET+ARB800 300 mm·2.5 mm·4.9 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1519ET+ARB800HT 300 mm·2.5 mm·4.9 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1523ET+ARB800 400 mm·2.5 mm·4.3 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1523ET+ARB800HT 400 mm·2.5 mm·4.3 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1527ET+ARB800 500 mm·2.5 mm·3.9 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1527ET+ARB800HT 500 mm·2.5 mm·3.9 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1545ET+ARB800 1000 mm·2.5 mm·3.2 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1545ET+ARB800HT 1000 mm·2.5 mm·3.2 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$433
110-1550ET+ARB800 1500 mm·2.5 mm·3.0 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1550ET+ARB800HT 1500 mm·2.5 mm·3.0 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$433
110-1555ET+ARB800 2000 mm·2.5 mm·2.9 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1555ET+ARB800HT 2000 mm·2.5 mm·2.9 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1566ET+ARB800 3000 mm·2.5 mm·2.7 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1566ET+ARB800HT 3000 mm·2.5 mm·2.7 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1567ET+ARB800 5000 mm·2.5 mm·2.6 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1567ET+ARB800HT 5000 mm·2.5 mm·2.6 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1568ET+ARB800 4000 mm·2.5 mm·2.7 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1568ET+ARB800HT 4000 mm·2.5 mm·2.7 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
110-1570ET+ARB800 6000 mm·2.5 mm·2.6 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$303
110-1570ET+ARB800HT 6000 mm·2.5 mm·2.6 mm·Thin Plano-Convex Lenses (ø50.8 mm)·50.8 mm·pl/cx·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$433
112-1104ET+ARB800 -20 mm·3.5 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
112-1104ET+ARB800HT -20 mm·3.5 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
112-1106ET+ARB800 -30 mm·2.5 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$139
112-1106ET+ARB800HT -30 mm·2.5 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
112-1106MT+ARB800 -30 mm·2.5 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1108ET+ARB800 -40 mm·2.1 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
2 in stock Ships in: 2–5 calendar days
$139
112-1108ET+ARB800HT -40 mm·2.1 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
112-1108MT+ARB800 -40 mm·2.1 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1109ET+ARB800 -50 mm·1.9 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
112-1109ET+ARB800HT -50 mm·1.9 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
112-1109MT+ARB800 -50 mm·1.9 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1110ET+ARB800 -60 mm·1.7 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
112-1110ET+ARB800HT -60 mm·1.7 mm·1.0 mm·12.7 mm·pl/cv·R<0.1%·UVFS
Out of stock
—
112-1110MT+ARB800 -60 mm·1.7 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1112ET+ARB800 -75 mm·1.5 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$139
112-1112ET+ARB800HT -75 mm·1.5 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
112-1112MT+ARB800 -75 mm·1.5 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1113ET+ARB800 -80 mm·1.5 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
112-1113ET+ARB800HT -80 mm·1.5 mm·1.0 mm·12.7 mm·pl/cv·R<0.1%·UVFS
Out of stock
—
112-1113MT+ARB800 -80 mm·1.5 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1115ET+ARB800 -100 mm·1.4 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$139
112-1115ET+ARB800HT -100 mm·1.4 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
112-1115MT+ARB800 -100 mm·1.4 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1117ET+ARB800 -125 mm·1.3 mm·1.0 mm·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1117ET+ARB800HT -125 mm·1.3 mm·1.0 mm·12.7 mm·pl/cv·R<0.1%·UVFS
Out of stock
—
112-1117MT+ARB800 -125 mm·1.3 mm·1.0 mm·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock
—
112-1119ET+ARB800 -150 mm·1.2 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
112-1119ET+ARB800HT -150 mm·1.2 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.7 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$202
112-1119MT+ARB800 -150 mm·1.2 mm·1.0 mm·Thin Plano-Concave Lenses (ø12.7 mm)·12.5 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$139
112-1205ET+ARB800 -50 mm·5.4 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
112-1205ET+ARB800HT -50 mm·5.4 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$225
112-1209ET+ARB800 -75 mm·4.0 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
112-1209ET+ARB800HT -75 mm·4.0 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
112-1211ET+ARB800 -100 mm·3.3 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
112-1211ET+ARB800HT -100 mm·3.3 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
4 in stock Ships in: 2–5 calendar days
$225
112-1215ET+ARB800 -125 mm·3.0 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
112-1215ET+ARB800HT -125 mm·3.0 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
112-1217ET+ARB800 -150 mm·2.7 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
2 in stock Ships in: 2–5 calendar days
$162
112-1217ET+ARB800HT -150 mm·2.7 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
112-1219ET+ARB800 -200 mm·2.4 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
112-1219ET+ARB800HT -200 mm·2.4 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
1 in stock Ships in: 2–5 calendar days
$225
112-1221ET+ARB800 -250 mm·2.3 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
2 in stock Ships in: 2–5 calendar days
$162
112-1221ET+ARB800HT -250 mm·2.3 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
112-1223ET+ARB800 -300 mm·2.1 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
Out of stock Ships in: 62–65 calendar days
$162
112-1223ET+ARB800HT -300 mm·2.1 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
Out of stock Ships in: 62–65 calendar days
$225
112-1233ET+ARB800 -500 mm·1.9 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.5%·UVFS
1 in stock Ships in: 2–5 calendar days
$162
112-1233ET+ARB800HT -500 mm·1.9 mm·1.5 mm·Thin Plano-Concave Lenses (ø25.4 mm)·25.4 mm·pl/cv·R<0.1%·UVFS
2 in stock Ships in: 2–5 calendar days
$225

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.

Specifications

Material UVFS
Surface quality 40-20 scratch & dig (MIL-PRF-13830B)
Clear aperture 90% of the diameter
Diameter tolerance +0.00, -0.12 mm
Thickness tolerance ±0.2 mm
Surface irregularity λ / 8 @ 633 nm
Concentricity 3 arcmin
Paraxial focal length ±2% @ 800 nm
Technology Electron beam multilayer dielectric
Adhesion and Durability Per MIL-C-675A. Insoluble in lab solvents
Clear Aperture Exceeds central 85% of diameter
Damage Threshold 50 mJ / cm2, 50 fsec pulse, 100 Hz, 800 nm typical
Coated Surface Flatness λ / 10 at 633 nm over clear aperture
Angle of incidence 0°

Classification

Line femtoline
Type thin

Description

Femtoline Thin AR coated at 700-900 nm Lenses for applications with broadband femtosecond Ti:Sapphire laser pulses. Presented lenses ensure low Group Delay Dispersion of broadband femtosecond Ti:Sapphire laser pulses.

Downloads

PDF
EKSMA_Optics_Thin_Lenses_2_.pdf PDF · 90.1 KB

Related products — often paired with this product
