Femtoline Thin Ultra AR Lenses @ 350-900 nm
• Ultra Broadband Anti-Reflective coated AR/AR@350-900 nm • Very thin thickness: edge thickness varies from 0,5~1,9 mm • Centre thickness varies from 1~3 mm • Plano-Convex or Plano-Concave type • uncoated, AR… Read more →
Volume discount
- 5–9 units −10%
- 10+ units −15%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Diameter
12.5 mm - 50.8 mm · 4 values
Any
mm
mm
Center Thickness
1 mm - 10.3 mm · 19 values
Any
mm
mm
Focal Length
-500 mm - 3000 mm · 30 values
Any
mm
mm
Surface 1
Power and Irregularity, fringes @633 nm
Any
69
catalog variants — refine the spec to narrow it down.
| SKU | Diameter | Center Thickness | Focal Length | Focal Length Wavelength | Power and Irregularity, fringes @633 nm | Coating | Wavelength | Reflectivity, % | |
|---|---|---|---|---|---|---|---|---|---|
| 110-1106ET+ARB625 | 12.7 mm | 2.5 mm | 30 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1108ET+ARB625 | 12.7 mm | 1.8 mm | 40 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1108MT+ARB625 | 12.5 mm | 1.8 mm | 40 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 110-1109ET+ARB625 | 12.7 mm | 1.9 mm | 50 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1109MT+ARB625 | 12.5 mm | 1.9 mm | 50 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 110-1111ET+ARB625 | 12.7 mm | 1.8 mm | 75 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1111MT+ARB625 | 12.5 mm | 1.8 mm | 75 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 110-1115ET+ARB625 | 12.7 mm | 1.5 mm | 100 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1115MT+ARB625 | 12.5 mm | 1.5 mm | 100 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 110-1117ET+ARB625 | 12.7 mm | 1.8 mm | 125 mm | 800 nm | 0(0.2) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1119ET+ARB625 | 12.7 mm | 1.5 mm | 150 mm | 800 nm | 0(0.2) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1119MT+ARB625 | 12.5 mm | 1.5 mm | 150 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 110-1123ET+ARB625 | 12.7 mm | 1.2 mm | 200 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1123MT+ARB625 | 12.5 mm | — | 200 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 110-1126ET+ARB625 | 12.7 mm | 1.5 mm | 250 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1129ET+ARB625 | 12.7 mm | 1.5 mm | 300 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1133ET+ARB625 | 12.7 mm | 1.1 mm | 400 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 110-1133MT+ARB625 | 12.5 mm | 1.1 mm | 400 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 110-1137ET+ARB625 | 12.7 mm | 1.1 mm | 500 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
2 in stock
Ships in: 2–5 calendar days
$159
|
| 110-1137MT+ARB625 | 12.5 mm | 1.1 mm | 500 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 110-1205ET+ARB625 | 25.4 mm | 4.9 mm | 50 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
8 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1209ET+ARB625 | 25.4 mm | 3 mm | 75 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
8 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1211ET+ARB625 | 25.4 mm | 2.5 mm | 100 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
| 110-1216ET+ARB625 | 25.4 mm | 2 mm | 125 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
| 110-1217ET+ARB625 | 25.4 mm | 2 mm | 150 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
| 110-1219ET+ARB625 | 25.4 mm | 2 mm | 200 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
1 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1223ET+ARB625 | 25.4 mm | 2 mm | 300 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
5 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1225ET+ARB625 | 25.4 mm | 2 mm | 350 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
2 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1227ET+ARB625 | 25.4 mm | 2 mm | 400 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
2 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1231ET+ARB625 | 25.4 mm | 2 mm | 450 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
2 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1233ET+ARB625 | 25.4 mm | 2 mm | 500 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
4 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1245ET+ARB625 | 25.4 mm | 1.5 mm | 1000 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
3 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1255ET+ARB625 | 25.4 mm | 1.4 mm | 1500 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
2 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1265ET+ARB625 | 25.4 mm | 1.4 mm | 2000 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
2 in stock
Ships in: 2–5 calendar days
$183
|
| 110-1509ET+ARB625 | 50.8 mm | 10.3 mm | 100 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 110-1511ET+ARB625 | 50.8 mm | 7.4 mm | 150 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 110-1515ET+ARB625 | 50.8 mm | 6.1 mm | 200 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 110-1519ET+ARB625 | 50.8 mm | 4.9 mm | 300 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 110-1523ET+ARB625 | 50.8 mm | 4.3 mm | 400 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
1 in stock
Ships in: 2–5 calendar days
$329
|
| 110-1527ET+ARB625 | 50.8 mm | 3.9 mm | 500 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 110-1545ET+ARB625 | 50.8 mm | 3.2 mm | 1000 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 110-1550ET+ARB625 | 50.8 mm | 3 mm | 1500 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 110-1555ET+ARB625 | 50.8 mm | 2.9 mm | 2000 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 110-1566ET+ARB625 | 50.8 mm | 2.7 mm | 3000 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$329
|
| 112-1106ET+ARB625 | 12.7 mm | 1 mm | -30 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 112-1106MT+ARB625 | 12.5 mm | 1 mm | -30 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 112-1108ET+ARB625 | 12.7 mm | 1 mm | -40 mm | 800 nm | 0(0.2) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 112-1108MT+ARB625 | 12.5 mm | 1 mm | -40 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 112-1109ET+ARB625 | 12.7 mm | 1 mm | -50 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 112-1109MT+ARB625 | 12.5 mm | 1 mm | -50 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 112-1110ET+ARB625 | 12.7 mm | 1 mm | -60 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 112-1110MT+ARB625 | 12.5 mm | 1 mm | -60 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 112-1112ET+ARB625 | 12.7 mm | — | -75 mm | 800 nm | 0(0.2) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 112-1112MT+ARB625 | 12.5 mm | 1 mm | -75 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 112-1115ET+ARB625 | 12.7 mm | 1 mm | -100 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
2 in stock
Ships in: 2–5 calendar days
$159
|
| 112-1115MT+ARB625 | 12.5 mm | 1 mm | -100 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 112-1117ET+ARB625 | 12.7 mm | 1 mm | -125 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 112-1117MT+ARB625 | 12.5 mm | 1.4 mm | -125 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 112-1119ET+ARB625 | 12.7 mm | 1 mm | -150 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$159
|
| 112-1119MT+ARB625 | 12.5 mm | 1 mm | -150 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 58–61 calendar days
$159
|
| 112-1205ET+ARB625 | 25.4 mm | 1.5 mm | -50 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
1 in stock
Ships in: 2–5 calendar days
$183
|
| 112-1209ET+ARB625 | 25.4 mm | 1.5 mm | -75 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
| 112-1211ET+ARB625 | 25.4 mm | 1.5 mm | -100 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
1 in stock
Ships in: 2–5 calendar days
$183
|
| 112-1215ET+ARB625 | 25.4 mm | 1.5 mm | -125 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
| 112-1217ET+ARB625 | 25.4 mm | 1.5 mm | -150 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
| 112-1219ET+ARB625 | 25.4 mm | 1.5 mm | -200 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
1 in stock
Ships in: 2–5 calendar days
$183
|
| 112-1221ET+ARB625 | 25.4 mm | 1.5 mm | -250 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
| 112-1223ET+ARB625 | 25.4 mm | 1.5 mm | -300 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
| 112-1233ET+ARB625 | 25.4 mm | 1.5 mm | -500 mm | 800 nm | -(0.25) | AR | 350 nm - 900 nm | 0 % - 1.5 % |
Out of stock
Ships in: 62–65 calendar days
$183
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Diameter Lower Tolerance | -0.12 mm |
| Focal Length tolerance %, +/- | 2 % |
| Focal Length Wavelength | 800 nm |
| Material Type | FS |
| Material | UVFS |
Surface 1
| Surface quality, grind or polish | Polished |
Surface 1, Wavelength 1
| Coating | AR |

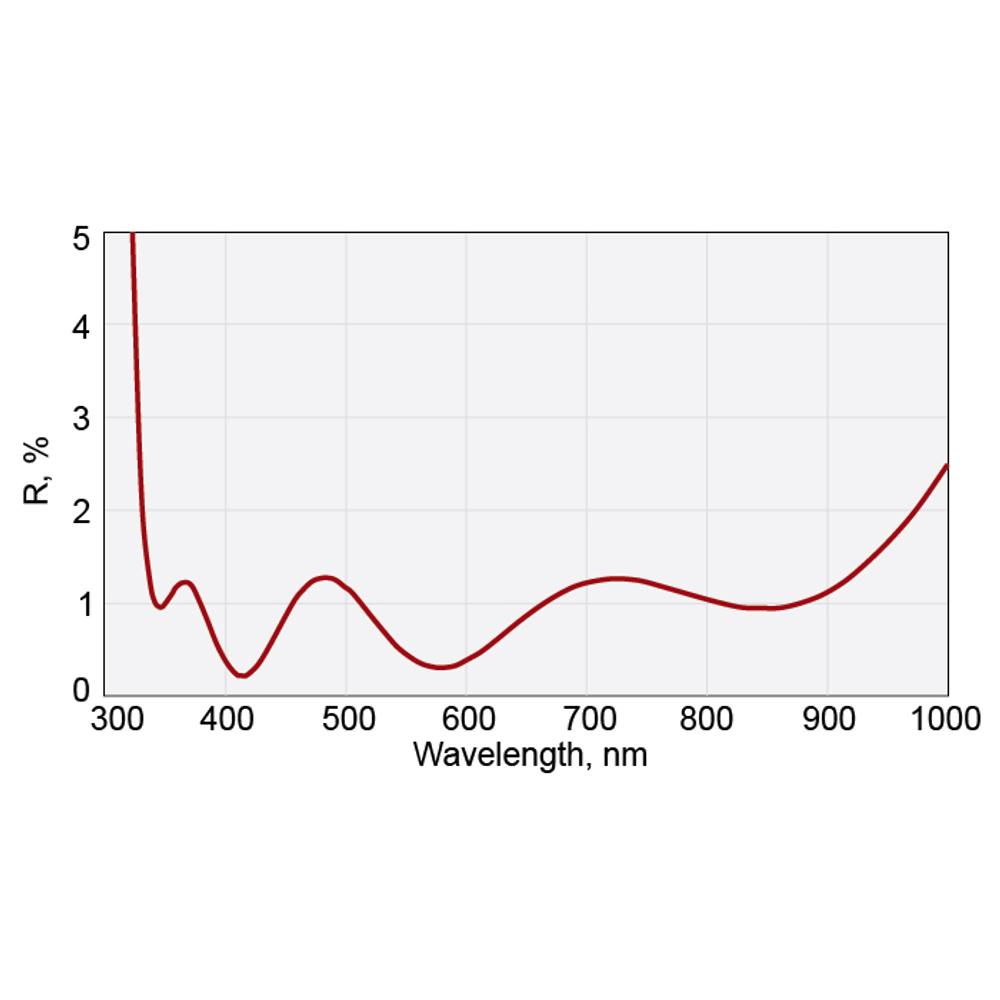

| Wavelength | 350 nm - 900 nm |
| Reflectivity, % | 0 % - 1.5 % |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
Surface 2, Wavelength 1
| Coating | AR |
| Wavelength | 350 nm - 900 nm |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Description
- Ultra Broadband Anti-Reflective coated AR/AR@350-900 nm
- Very thin thickness: edge thickness varies from 0,5~1,9 mm
- Centre thickness varies from 1~3 mm
- Plano-Convex or Plano-Concave type
- uncoated, AR coated @ 760-840 nm or AR coated @ 700-900 nm
Femtoline Thin Ultra AR coated at 350-900 nm Lenses for applications with broadband femtosecond Ti:Sapphire laser pulses. Presented lenses ensure low Group Delay Dispersion of broadband femtosecond Ti:Sapphire laser pulses.
