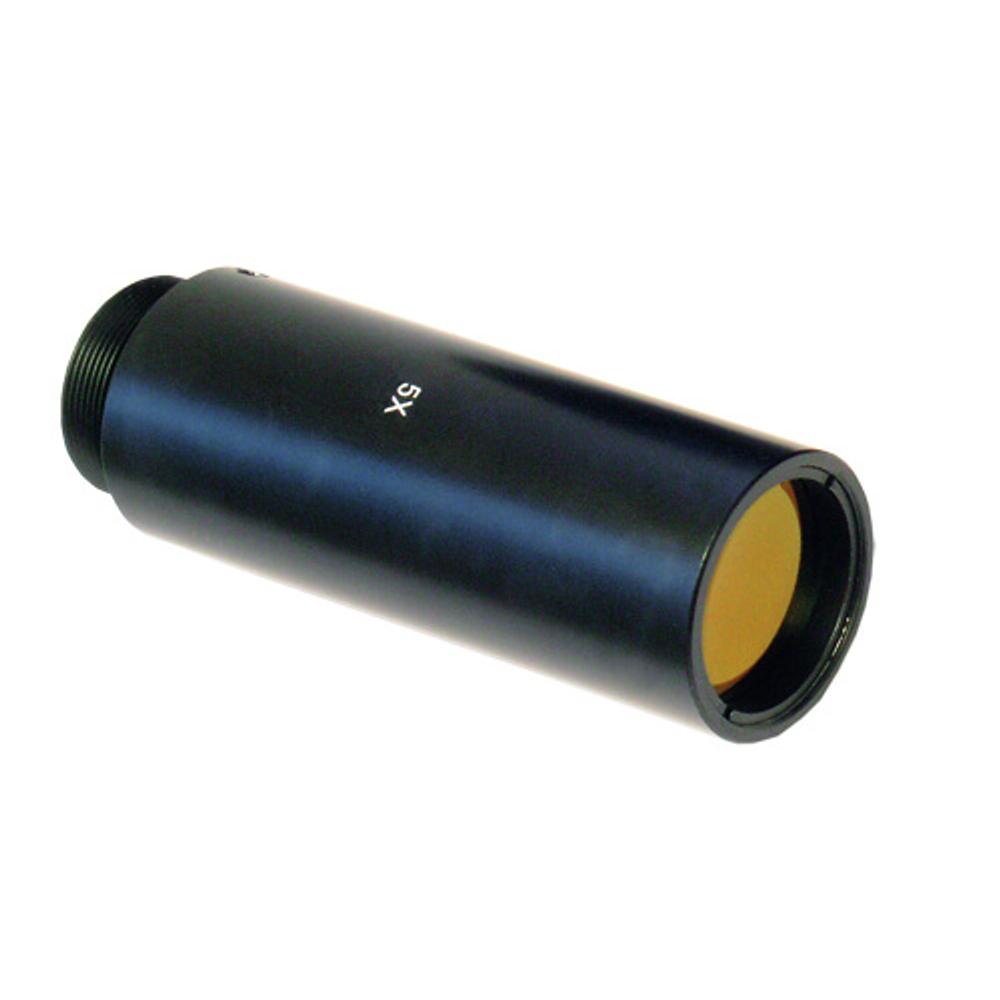

Compact Beam Expanders
The Compact Beam Expander is designed to increase the diameter of a collimated input beam to a larger collimated output beam. Eksma Optics offers compact Galilean type beam expanders for 1064 nm, 532 nm and 355 nm… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Wavelength 1
| SKU | Product Type | Material Type | Diameter | Length | Magnification | Transmission, % | Coating | Wavelength | |
|---|---|---|---|---|---|---|---|---|---|
| 160-0021 | Fixed | FS | 27 mm | 51 mm | 2x | 96 % - 100 % | AR | 1064 nm - 1064 nm |
Out of stock
$282
|
| 160-0022 | Fixed | FS | 27 mm | 46.5 mm | 2x | 96 % - 100 % | AR | 532 nm - 532 nm |
Out of stock
$282
|
| 160-0031 | Fixed | FS | 27 mm | 68 mm | 3x | 96 % - 100 % | AR | 1064 nm - 1064 nm |
1 in stock
Ships in: 2–5 calendar days
$282
|
| 160-0032 | Fixed | FS | 27 mm | 68 mm | 3x | 96 % - 100 % | AR | 532 nm - 532 nm |
Out of stock
$282
|
| 160-0041 | Fixed | FS | 27 mm | 75 mm | 4x | 96 % - 100 % | AR | 1064 nm - 1064 nm |
Out of stock
$282
|
| 160-0042 | Fixed | FS | 27 mm | 75 mm | 4x | 96 % - 100 % | AR | 532 nm - 532 nm |
Out of stock
$282
|
| 160-0043 | Fixed | FS | 27 mm | 75 mm | 4x | 96 % - 100 % | AR | 355 nm - 355 nm |
1 in stock
Ships in: 2–5 calendar days
$300
|
| 160-0051 | Fixed | FS | 27 mm | 73 mm | 5x | 96 % - 100 % | AR | 1064 nm - 1064 nm |
1 in stock
Ships in: 2–5 calendar days
$282
|
| 160-0052 | Fixed | FS | 27 mm | 73 mm | 5x | 96 % - 100 % | AR | 532 nm - 532 nm |
2 in stock
Ships in: 2–5 calendar days
$282
|
| 160-0061 | Fixed | FS | 27 mm | 75 mm | 6x | 96 % - 100 % | AR | 1064 nm - 1064 nm |
5 in stock
Ships in: 2–5 calendar days
$282
|
| 160-0062 | Fixed | FS | 27 mm | 75 mm | 6x | 96 % - 100 % | AR | 532 nm - 532 nm |
Out of stock
$282
|
| 160-0063 | Fixed | FS | 27 mm | 75 mm | 6x | 96 % - 100 % | AR | 355 nm - 355 nm |
5 in stock
Ships in: 2–5 calendar days
$300
|
| 160-0081 | Fixed | FS | 27 mm | 77 mm | 8x | 96 % - 100 % | AR | 1064 nm - 1064 nm |
1 in stock
Ships in: 2–5 calendar days
$282
|
| 160-0082 | Fixed | FS | 27 mm | 75 mm | 8x | 96 % - 100 % | AR | 532 nm - 532 nm |
Out of stock
$282
|
| 160-0083 | Fixed | FS | 27 mm | 68 mm | 8x | 96 % - 100 % | AR | 355 nm - 355 nm |
2 in stock
Ships in: 2–5 calendar days
$300
|
| 160-0101 | Fixed | FS | 27 mm | 69.5 mm | 10x | 96 % - 100 % | AR | 1064 nm - 1064 nm |
Out of stock
$282
|
| 160-0102 | Fixed | FS | 27 mm | 70 mm | 10x | 96 % - 100 % | AR | 532 nm - 532 nm |
Out of stock
$282
|
| 160-0103 | Fixed | FS | 27 mm | 71 mm | 10x | 96 % - 100 % | AR | 355 nm - 355 nm |
1 in stock
Ships in: 2–5 calendar days
$300
|
| 160-0251 | Fixed | FS | 27 mm | 48.5 mm | 2.5x | 96 % - 100 % | AR | 1064 nm - 1064 nm |
Out of stock
$282
|
| 160-0252 | Fixed | FS | 27 mm | 46.5 mm | 2.5x | 96 % - 100 % | AR | 532 nm - 532 nm |
Out of stock
$282
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Fixed |
| Material Type | FS |
| Diameter | 27 mm |
| Transmission, % | 96 % - 100 % |
| Input Aperture Diameter | 6 mm |
| Output Aperture Diameter | 21.6 mm |
Wavelength 1
| Coating | AR |
Description
The Compact Beam Expander is designed to increase the diameter of a collimated input beam to a larger collimated output beam. Eksma Optics offers compact Galilean type beam expanders for 1064 nm, 532 nm and 355 nm wavelengths. The Compact Beam Expander has a possibility to be adjusted for the input beam divergence angle to obtain collimated, divergent or focused beam at the output.
