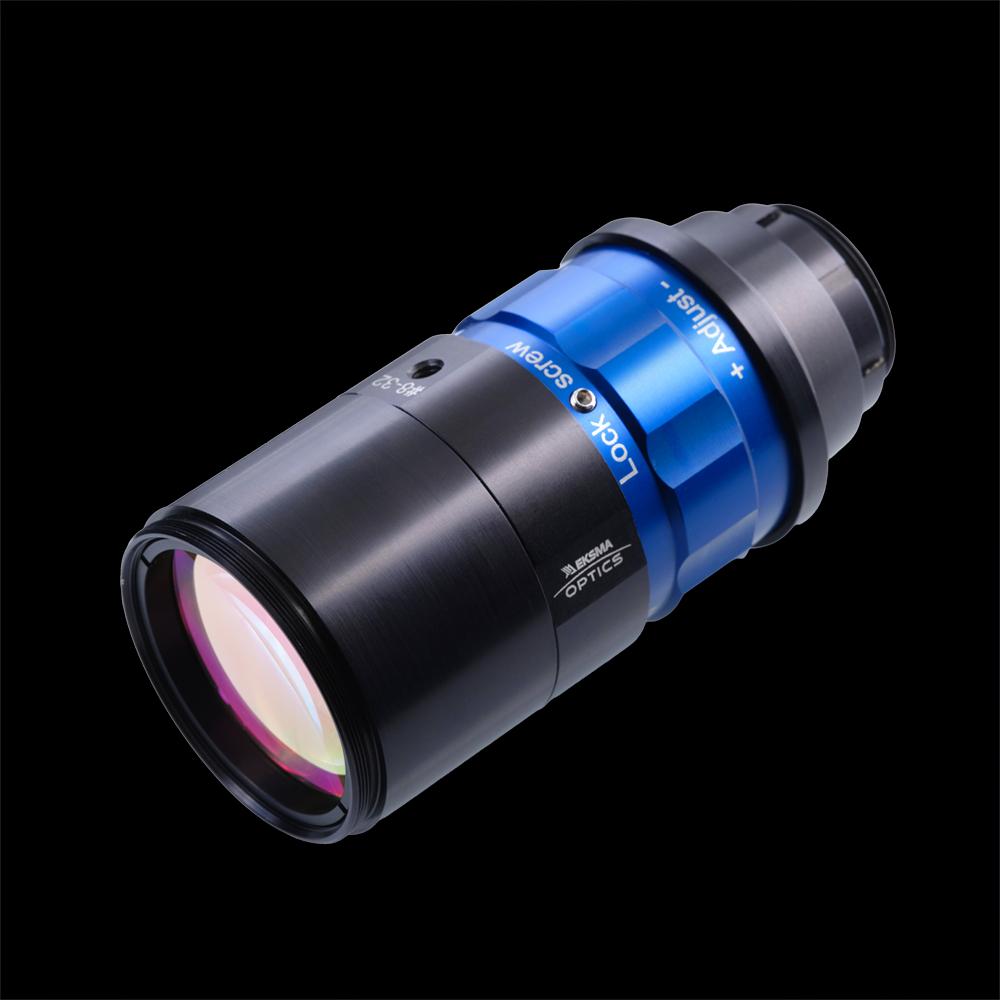

Fixed Ratio Beam Expanders for High Power Lasers

• Designed for high power laser applications: • IBS-coated UV FS thin lenses • High total transmission: >99% • Low GDD: relative pulse broadening <20% • AR-coated for: 1030/1064 nm, 515/532 nm, 343/355 nm … Read more →

From $540 Configure & order →

Volume discount

5–9 units −10%
10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 22.8 mm - 45 mm · 2 values Any mm

Length 67 mm - 136.1 mm · 3 values Any mm

Magnification Any

Wavelength 1

Wavelength 335 nm - 1080 nm · 4 values Any nm

20 catalog variants — refine the spec to narrow it down.

SKU	Product Type	Material Type	Diameter	Length	Magnification	Transmission, %	Coating	Wavelength
161-0.5X-1H	Fixed	FS	22.8 mm	—	0.5x	—	AR	1000 nm - 1080 nm	1 in stock —
161-0.5X-2H	Fixed	FS	22.8 mm	—	0.5x	—	AR	515 nm - 532 nm	1 in stock —
161-1.5X-1H	Fixed	FS	45 mm	67 mm	1.5x	99 % - 100 %	AR	1000 nm - 1080 nm	Out of stock $540
161-1.5X-2H	Fixed	FS	45 mm	67 mm	1.5x	99 % - 100 %	AR	500 nm - 535 nm	1 in stock Ships in: 2–5 calendar days $540
161-1.5X-3H	Fixed	FS	45 mm	67 mm	1.5x	99 % - 100 %	AR	335 nm - 355 nm	Out of stock $636
161-10X-1H	Fixed	FS	45 mm	136.1 mm	10x	99 % - 100 %	AR	1000 nm - 1080 nm	1 in stock Ships in: 2–5 calendar days $804
161-10X-2H	Fixed	FS	45 mm	136.1 mm	10x	99 % - 100 %	AR	500 nm - 535 nm	2 in stock Ships in: 2–5 calendar days $804
161-10X-3H	Fixed	FS	45 mm	136.1 mm	10x	99 % - 100 %	AR	335 nm - 355 nm	1 in stock Ships in: 2–5 calendar days $900
161-2X-1H	Fixed	FS	45 mm	67 mm	2x	99 % - 100 %	AR	1000 nm - 1080 nm	Out of stock $540
161-2X-2H	Fixed	FS	45 mm	67 mm	2x	99 % - 100 %	AR	500 nm - 535 nm	Out of stock $540
161-2X-3H	Fixed	FS	45 mm	67 mm	2x	99 % - 100 %	AR	335 nm - 355 nm	Out of stock $636
161-3X-1H	Fixed	FS	45 mm	90.8 mm	3x	99 % - 100 %	AR	1000 nm - 1080 nm	1 in stock Ships in: 2–5 calendar days $660
161-3X-2H	Fixed	FS	45 mm	90.8 mm	3x	99 % - 100 %	AR	500 nm - 535 nm	Out of stock $660
161-3X-3H	Fixed	FS	45 mm	90.8 mm	3x	99 % - 100 %	AR	335 nm - 355 nm	Out of stock $756
161-5X-1H	Fixed	FS	45 mm	90.8 mm	5x	99 % - 100 %	AR	1000 nm - 1080 nm	Out of stock $660
161-5X-2H	Fixed	FS	45 mm	90.8 mm	5x	99 % - 100 %	AR	500 nm - 535 nm	1 in stock Ships in: 2–5 calendar days $660
161-5X-3H	Fixed	FS	45 mm	90.8 mm	5x	99 % - 100 %	AR	335 nm - 355 nm	1 in stock Ships in: 2–5 calendar days $756
161-7.5X-1H	Fixed	FS	45 mm	136.1 mm	7.5x	99 % - 100 %	AR	1000 nm - 1080 nm	Out of stock $804
161-7.5X-2H	Fixed	FS	45 mm	136.1 mm	7.5x	99 % - 100 %	AR	500 nm - 535 nm	1 in stock Ships in: 2–5 calendar days $804
161-7.5X-3H	Fixed	FS	45 mm	136.1 mm	7.5x	99 % - 100 %	AR	335 nm - 355 nm	1 in stock Ships in: 2–5 calendar days $900

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type	Fixed
Material Type	FS

Wavelength 1

Coating

Description

Designed for high power laser applications:
- IBS-coated UV FS thin lenses
- High total transmission: >99%
- Low GDD: relative pulse broadening <20%
AR-coated for: 1030/1064 nm, 515/532 nm, 343/355 nm
Fixed magnifications from 1.5X to 10X
Divergence adjustment: non-rotating optics, sliding lens design

Eksma Optics offers Galilean type beam expanders with thin UV FS lenses suitable for femtosecond applications. Fixed Ratio Beam Expanders are designed to increase the diameter of a collimated input high power laser beam to a larger collimated output beam. Fixed Ratio Beam Expanders can be adjusted for the input beam divergence angle to obtain collimated, divergent or focused beam at the output. They feature non-rotating divergence adjustment by sliding lens design.
