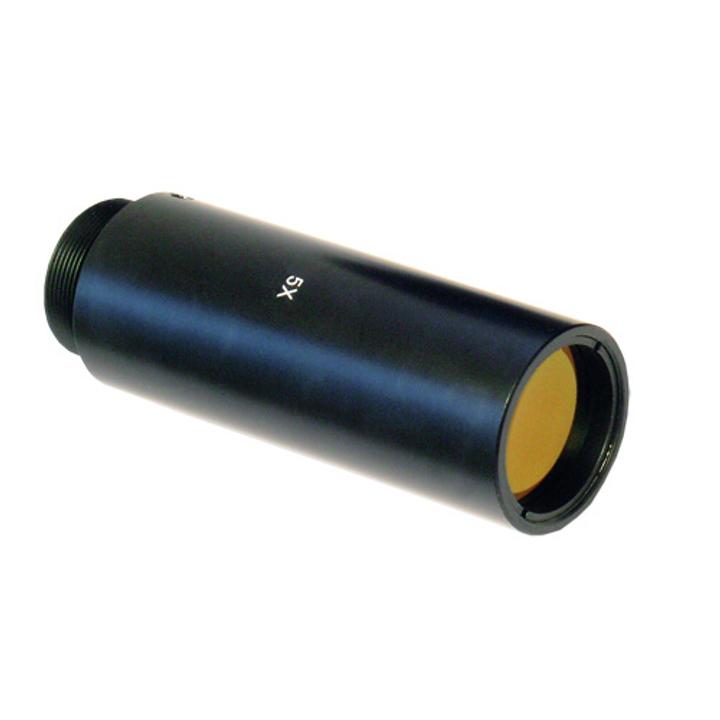

Compact Beam Expanders SKU: 160-0102
The Compact Beam Expander is designed to increase the diameter of a collimated input beam to a larger collimated output beam. Eksma Optics offers compact Galilean type beam expanders for 1064 nm, 532 nm and 355 nm wavelengths. The Compact Beam Expander has a possibility to be…
Variant specifications
| Specification | Value |
|---|---|
| Wavelength | 532 nm |
| Expansion ratio | 10X |
| Beam expander size, L | 68 mm |
| Transmission | >96% |
| Group | Design wavelength - 532 nm |
Shared product specifications
These specifications apply across the Compact Beam Expanders product family.
| Lens material | AR coated Fused Silica Lenses |
| Screw Size | M22x0.75 |
| Laser damage treshold | 5J / cm² 10ns 10Hz at 1064nm |
