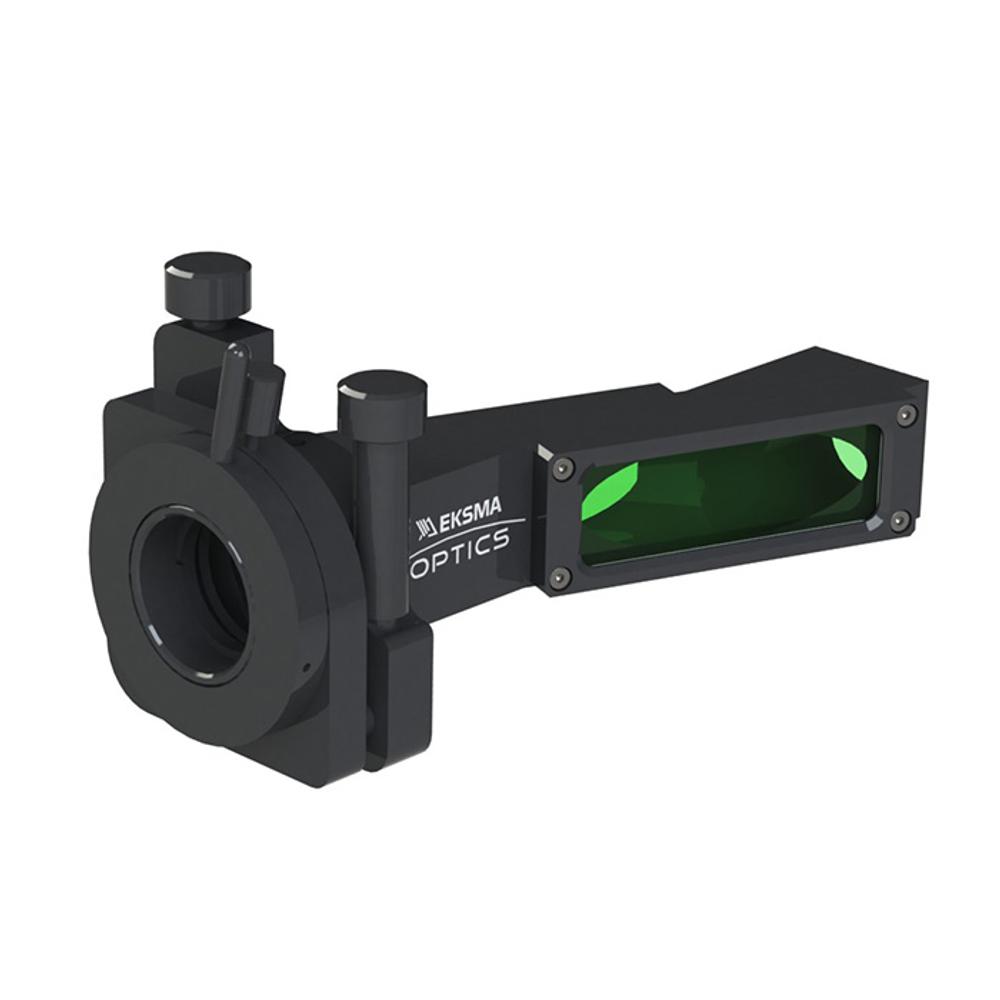

Broadband Variable Attenuator for Femtosecond Laser Pulses
Variable attenuators / beamsplitters consist of precision opto-mechanics and optical components, providing continuous beam splitting over 750-850 nm or 980-1080 nm broadband wavelength ranges. Attenuators are available… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Operating Range · Configuration · Group | |
|---|---|---|
| 990-0070-1030HBBi70 | 980-1080 nm·manual version·Manual version |
Out of stock
$1,505
|
| 990-0070-1030HBBi70M | 980-1080 nm·without controller & power supply·Motorized version |
Out of stock
$2,524
|
| 990-0070-1030HBBi70M+CP | 980-1080 nm·with controller & power supply·Motorized version |
Out of stock
$3,386
|
| 990-0070-257HBBi70 | 255-260 nm·manual version·Manual version |
1 in stock
Ships in: 2–5 calendar days
$1,679
|
| 990-0070-257HBBi70M | 255-260 nm·without controller & power supply |
Out of stock
$2,698
|
| 990-0070-257HBBi70M+CP | 255-260 nm·with controller & power supply |
Out of stock
$3,560
|
| 990-0070-343HBBi70 | 333-353 nm·manual version·Manual version |
1 in stock
Ships in: 2–5 calendar days
$1,679
|
| 990-0070-343HBBi70M | 333-353 nm·without controller & power supply |
Out of stock
$2,698
|
| 990-0070-343HBBi70M+CP | 333-353 nm·with controller & power supply |
Out of stock
$3,560
|
| 990-0070-515HBBi70 | 500-530 nm·manual version·Manual version |
1 in stock
Ships in: 2–5 calendar days
$1,505
|
| 990-0070-515HBBi70M | 500-530 nm·without controller & power supply |
Out of stock
$2,524
|
| 990-0070-515HBBi70M+CP | 500-530 nm·with controller & power supply·Motorized version |
Out of stock
$3,386
|
| 990-0070-800HBBi70 | 750-850 nm·manual version·Manual version |
Out of stock
$1,505
|
| 990-0070-800HBBi70M | 750-850 nm·without controller & power supply·Motorized version |
Out of stock
$2,524
|
| 990-0070-800HBBi70M+CP | 750-850 nm·with controller & power supply·Motorized version |
Out of stock
$3,386
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Aperture diameter | 12 mm |
| Operating bandwidth | 100 nm |
| Damage treshold | 50 mJ / cm² pulsed at 800nm, 50fsec, 50Hz |
| Polarization contrast (after 1st polarizer) | >1:200 |
| Polarization contrast (after 2ⁿd polarizer) | >1:500 |
| Manual Variable Attenuator - Solidworks file | |
| Motorized Variable Attenuator - Solidworks file |
Classification
| Line | femtoline |
Description
Variable attenuators / beamsplitters consist of precision opto-mechanics and optical components, providing continuous beam splitting over 750-850 nm or 980-1080 nm broadband wavelength ranges. Attenuators are available in manual or motorized versions.
Attenuators use two thin film polarizers operating at 70° angle of incidence, which reflect s-polarized light while transmitting p-polarized light. The angle of incidence can be adjusted by ±2° to achieve the maximum polarization contrast.
The intensity ratio of the two outgoing parallel beams may be continuously varied without alteration of other beam parameters. It can be done by rotating the quartz zero order air-spaced half wave plate housed into a rotating holder.
P-polarized beam is transmitted straightly with a shift of 2.6 mm. While s-polarized beam (after 2 reflections) is parallel to the outgoing p-polarized beam, just separated by 28 mm.
