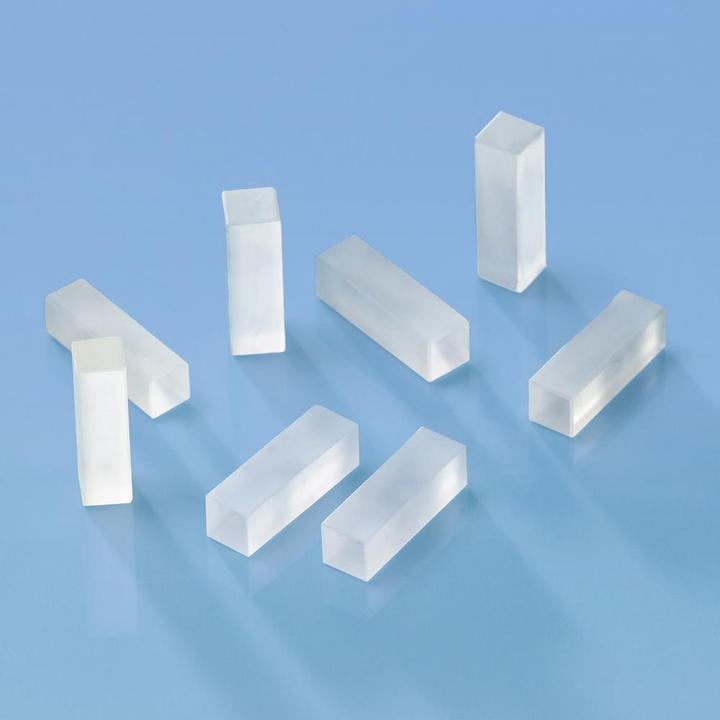

KTP Nonlinear Crystals SKU: KTP-403
Variant specifications
| Product | Value |
|---|---|
| Width | 4 mm |
| Height | 4 mm |
| Thickness | 6 mm |
| Applications | SHG |
| Pump Wavelength | 1064 nm |
| Material | KTP |
| Product Type | T2 |
| Theta Angle | 90 Deg |
| Phi Angle | 23.5 Deg |
| TWD, fringes @633 nm | 0(0.3) |
| Parallelism, angle | 0 - 20 sec |
| Surface 1 | Value |
|---|---|
| Surface quality, MIL | 10-5 |
| Clear Aperture, % | > 90 % |
| Surface 1, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 532 nm |
| Reflectivity, % | < 0.5 % |
| Surface 1, Wavelength 2 | Value |
|---|---|
| Coating | AR |
| Wavelength | 1064 nm |
| Reflectivity, % | < 0.2 % |
| Surface 2 | Value |
|---|---|
| Surface quality, MIL | 10-5 |
| Clear Aperture, % | > 90 % |
| Surface 2, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 532 nm |
| Reflectivity, % | < 0.5 % |
| Surface 2, Wavelength 2 | Value |
|---|---|
| Coating | AR |
| Wavelength | 1064 nm |
| Reflectivity, % | < 0.2 % |
| Side Surface 1 | Value |
|---|---|
| Perpendicularity | 0 - 5 min |
