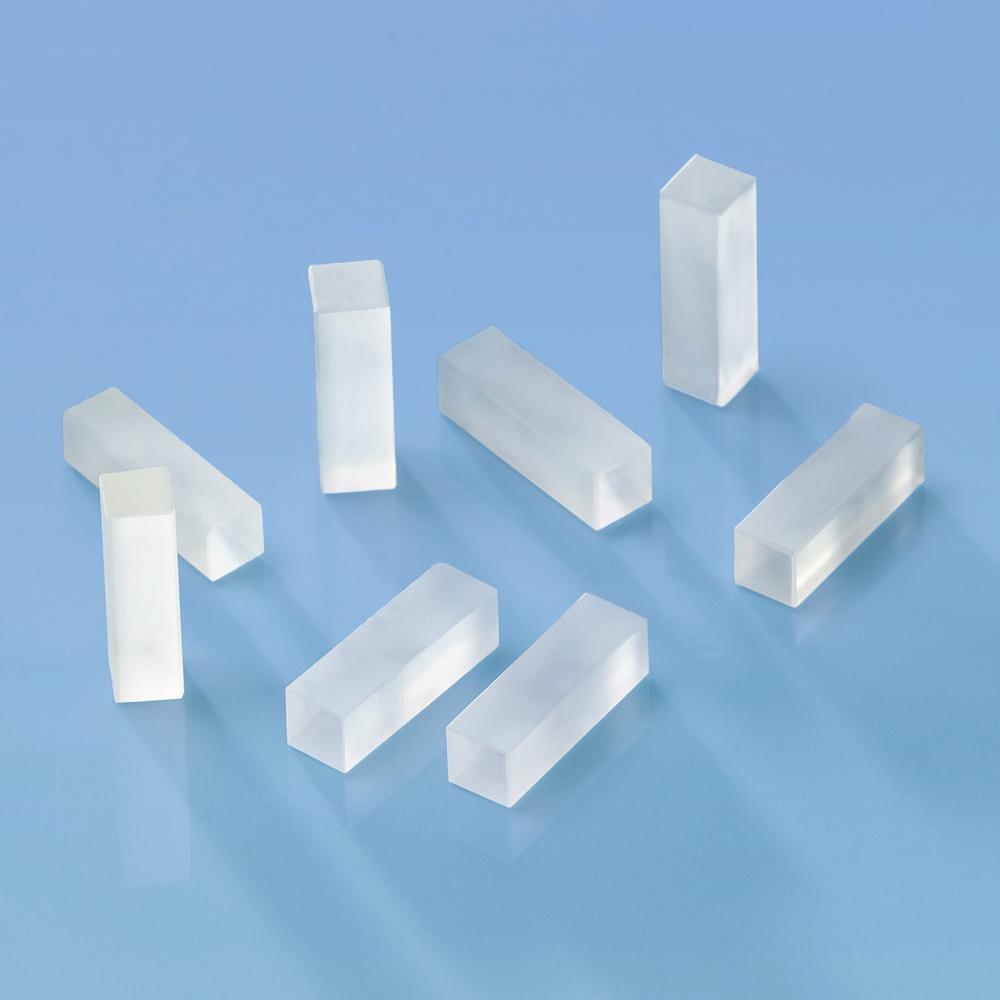

KTP Nonlinear Crystals
Configure & order — pick a catalog variant or configure your own
Product
Width
4 mm - 7 mm · 2 values
Any
mm
mm
Height
4 mm - 7 mm · 2 values
Any
mm
mm
Thickness
6 mm - 9 mm · 2 values
Any
mm
mm
2
catalog variants — refine the spec to narrow it down.
| SKU | Width | Height | Thickness | Applications | Pump Wavelength | Product Type | Theta Angle | Coating | Wavelength | |
|---|---|---|---|---|---|---|---|---|---|---|
| KTP-403 | 4 mm | 4 mm | 6 mm | SHG | 1064 nm | T2 | 90 Deg | AR | 532 nm |
7 in stock
Ships in: 2–5 calendar days
$204
|
| KTP-404 | 7 mm | 7 mm | 9 mm | SHG | 1064 nm | T2 | 90 Deg | AR | 532 nm |
3 in stock
Ships in: 2–5 calendar days
$918
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Applications | SHG |
| Pump Wavelength | 1064 nm |
| Material | KTP |
| Product Type | T2 |
| Theta Angle | 90 Deg |
| Phi Angle | 23.5 Deg |
| TWD, fringes @633 nm | 0(0.3) |
| Parallelism, angle | 0 - 20 sec |
Surface 1
| Surface quality, MIL | 10-5 |
| Clear Aperture, % | > 90 % |
Surface 1, Wavelength 1
| Coating | AR |
| Wavelength | 532 nm |
Surface 1, Wavelength 2
| Coating | AR |
| Wavelength | 1064 nm |
Surface 2
| Surface quality, MIL | 10-5 |
| Clear Aperture, % | > 90 % |
Surface 2, Wavelength 1
| Coating | AR |
| Wavelength | 532 nm |
Surface 2, Wavelength 2
| Coating | AR |
| Wavelength | 1064 nm |
Side Surface 1
| Perpendicularity | 0 - 5 min |
