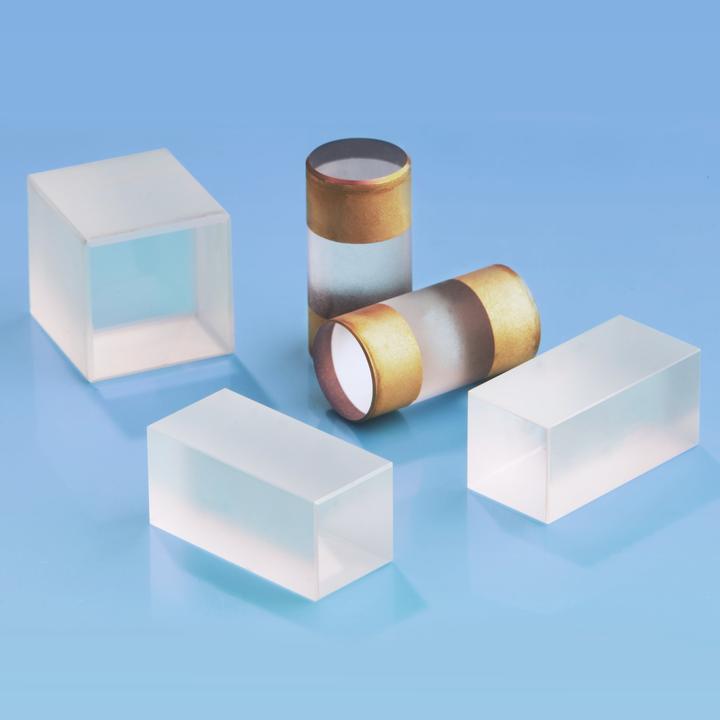

Potassium Dideuterium Phosphate and its Isomorphs - KDP Crystals

Variant specifications

Product Value
Width 14 mm
Width Upper Tol 0.1 mm
Width Lower Tol -0.1 mm
Height 14 mm
Height Upper Tol 0.1 mm
Height Lower Tol -0.1 mm
Thickness 0.65 mm
Applications SHG
Pump Wavelength 800 nm
Mounted True
Material KDP
Product Type T1
Theta Angle 45 Deg
Theta Angle Tol 0.5 Deg
Phi Angle 45 Deg
Phi Angle Tol 0.5 Deg
TWD, fringes @633 nm -(0.5)
Parallelism, angle 0 - 20 sec
Surface 1 Value
Surface quality, MIL 40-20
Clear Aperture, % > 90 %
Surface 1, Wavelength 1 Value
Coating P
Wavelength 400 nm - 800 nm
Surface 2 Value
Surface quality, MIL 40-20
Clear Aperture, % > 90 %
Surface 2, Wavelength 1 Value
Coating P
Wavelength 400 nm - 800 nm
Side Surface 1 Value
Perpendicularity 0 - 5 min
