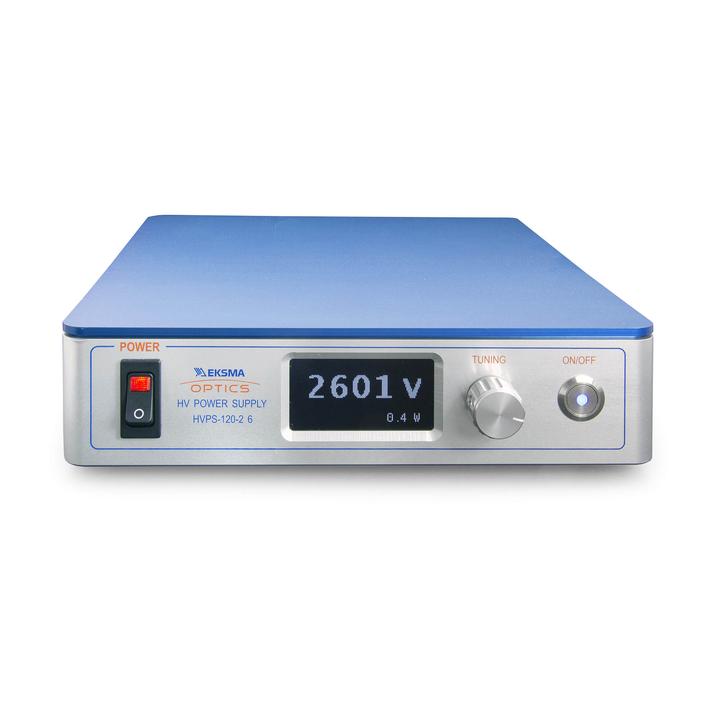

HVS100 High Voltage Power Supply SKU: HVS100-2x120-1.8
Laboratory type HVS100 series high voltage power supply is especially designed for powering of drivers of Pockels cells. However, it can also be used as a general-purpose high voltage power supply for other electronic devices and different applications in the laboratory. …
Variant specifications
| Specification | Value |
|---|---|
| Max output power | 2x120 W |
| Max HV output | 1.8 kV |
Shared product specifications
These specifications apply across the HVS100 High Voltage Power Supply product family.
| MODEL | HVS100-2x60 | HVS100-120 | HVS100-5 | HVS100-40 | HVS100-80 | HVS100-150 | HVS100-4x60 | HVS100-2x120 |
|---|---|---|---|---|---|---|---|---|
| Maximal high voltage output options | + / -1.4 kV / + / -2.6 kV | 1.8 kV / 2.6 kV / 3.1 kV / 3.6 kV | 1.8 kV / 2.8 kV / 4.0 kV / 4.4 kV / 5.0 kV | 1.3 kV / 1.8 kV / 2.5 kV / 3.6 kV / 4.0 kV | 1.8 kV / 2.6 kV / 3.1 kV / 3.6 kV / 4.0 kV | 1.8 kV / 2.6 kV / 3.1 kV / 3.6 kV / 4.0 kV | + / -1.4 kV / + / -2.0 kV / + / -2.6 kV / + / -3.6 kV | 1.8 kV / 2.6 kV / 3.1 kV / 3.6 kV |
| Maximal output power at maximal output voltage | 2 x 60 W | 120 W | 5 W | 40 W | 80 W | 150 W | 4 x 60 W | 2 x 120 W |
| Voltage control limits | 40% Umax to Umax | 40% Umax to Umax | 40% Umax to Umax | 40% Umax to Umax | 40% Umax to Umax | 40% Umax to Umax | 40% Umax to Umax | 40% Umax to Umax |
| Remaining power at the output of 24 V DC for external needs | 55 W | 55 W | 190 W | 150 W | 100 W | Not available | Not available | Not available |
| Mains voltage | 90 to 264 V AC, 47 - 63 Hz | 90 to 264 V AC, 47 - 63 Hz | 90 to 264 V AC, 47 - 63 Hz | 90 to 264 V AC, 47 - 63 Hz | 90 to 264 V AC, 47 - 63 Hz | 24 V DC¹⁾ | 24 V DC¹⁾ | 24 V DC¹⁾ |
| Dimensions (W x L x H) | 230 x 245 x 53.5 mm | 230 x 245 x 53.5 mm | 230 x 245 x 53.5 mm | 230 x 245 x 53.5 mm | 230 x 245 x 53.5 mm | 230 x 245 x 53.5 mm | 230 x 245 x 53.5 mm | 230 x 245 x 53.5 mm |
| Weight | 2.5 kg | 2.5 kg | 2.5 kg | 2.5 kg | 2.5 kg | 2.5 kg | 2.5 kg | 2.5 kg |
