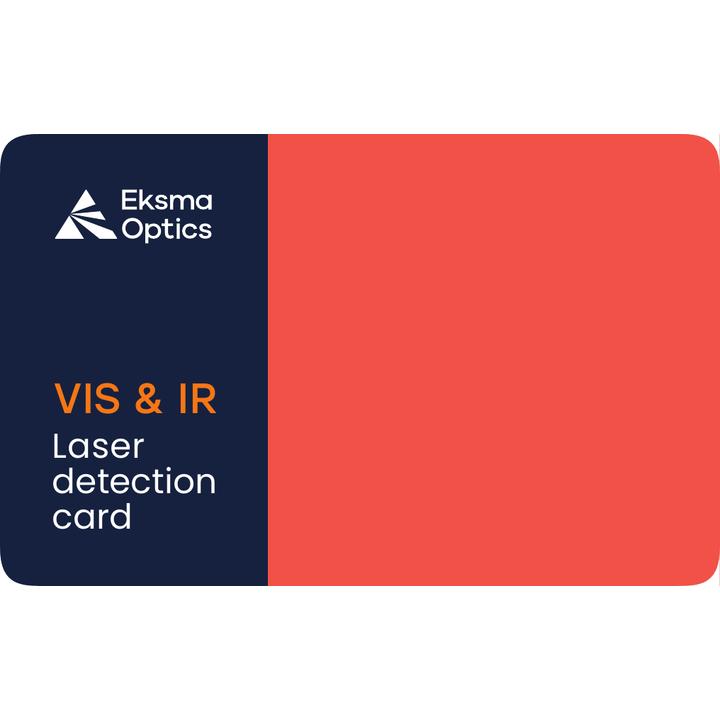

Laser Detection Cards SKU: 990-0846
Laser detection cards provide instant, fade free operation for simple alignment, location and safety purpose visualization of laser light. They are made of durable 0.8 mm plastic and have photosensitive region 44 x 54 mm that extends all the way to the three edges of the cards…
Variant specifications
| Specification | Value |
|---|---|
| Absorption Band | 400-640 nm + 800-1700 nm |
| Emission Peak | 660 nm |
Shared product specifications
These specifications apply across the Laser Detection Cards product family.
| 990-0846 / VIS & IR Detection Card | |
| Absorption Bands | 400 - 640 nm / 800 - 1700 nm |
| Emission Bands | Broadband 600 – 730 nm / Peak @ 660 nm |
| Persistence (stimulation removed) | VIS: 0.5 – 3 s, dependent on ambient light / IR: <0.5 s |
| Minimum Stimulation Continuous¹⁾ | <1 nW / cm² @ 450 nm / <25 µW / cm² @ 950 nm |
| Minimum Stimulation Pulsed¹⁾ | 2 kW / cm² @ 1064 nm, 7 ns, 10 Hz |
| Maximum Stimulation Continuous | 100 W / cm² @ 512 nm |
| Maximum Stimulation Pulsed | 60 MW / cm² @ 1064 nm, 7 ns, 10 Hz |
| Typical Applications | Ar-Ion, HeNe, HeCd, 880 nm, 960-980 nm laser diodes, Yb:KGW, Nd:YLF, Nd:Glass, Nd:YAG |
