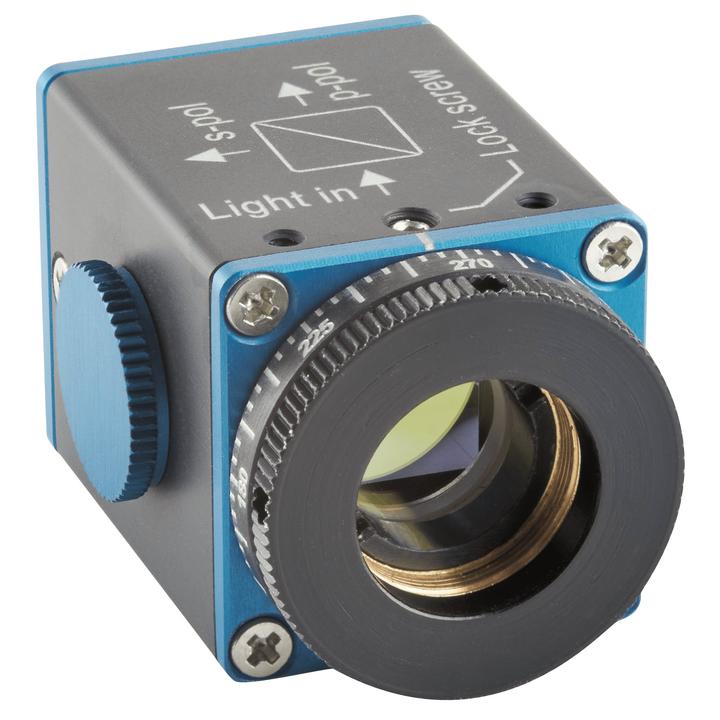

Compact Laser Power Variable Attenuators 990-0076 SKU: 990-0076-1030
This Variable Attenuator incorporates a high - performance Polarizing Cube Beamsplitter which reflects s-polarized light at 90° while transmitting p-polarized light. A rotatable λ/2 waveplate is placed in the incident polarized laser beam. The intensity ratio of the two…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Cube type - Manual |
| Design Wavelength Range | 1030 nm - 1030 nm |
| Input Aperture Diameter | 10 mm |
| Transmission, % | 0.1 % - 98 % |
| Extinction ratio | 1000:1 |
| LIDT | 15 J/cm² @ 1030 nm, 10 Hz, 10 ns |
| Width | 25.4 mm |
| Length | 27.9 mm |
| Height | 40.25 mm |
| Weight | 0.1 kg |
| Beam Separation Angle | 90 deg 0 min 0 sec |
Variant files
Technical drawings, models and data files for SKU 990-0076-1030.
Product brochures
Shared documentation for the complete product family.
