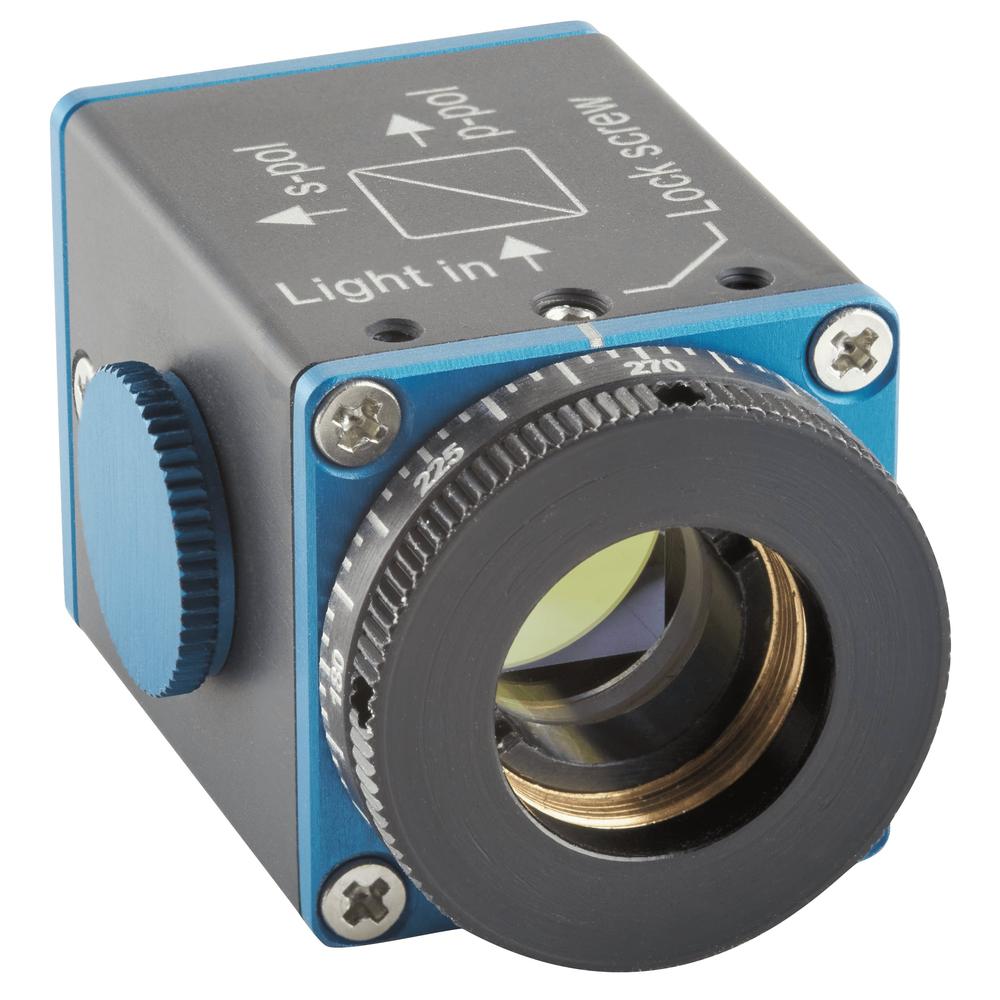

Compact Laser Power Variable Attenuators 990-0076
This Variable Attenuator incorporates a high - performance Polarizing Cube Beamsplitter which reflects s-polarized light at 90° while transmitting p-polarized light. A rotatable λ/2 waveplate is placed in the incident… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Wavelength · Laser Damage Threshold · Clear aperture | |
|---|---|---|
| 990-0076-1030 | 1030 nm·15 J/cm² @ 1030 nm, 10 Hz, 10 ns·⌀10 mm |
Out of stock
$926
|
| 990-0076-1064 | 1064 nm·15 J/cm² @ 1064 nm, 10 Hz, 10 ns·⌀10 mm |
Out of stock
$926
|
| 990-0076-343 | 343 nm·3 J/cm² @ 343 nm, 10 Hz, 10 ns·⌀10 mm |
2 in stock
Ships in: 2–5 calendar days
$955
|
| 990-0076-355 | 355 nm·3 J/cm² @ 355 nm, 10 Hz, 10 ns·⌀10 mm |
1 in stock
Ships in: 2–5 calendar days
$955
|
| 990-0076-515 | 515 nm·6 J/cm² @ 515 nm, 10 Hz, 10 ns·⌀10 mm |
2 in stock
Ships in: 2–5 calendar days
$926
|
| 990-0076-532 | 532 nm·6 J/cm² @ 532 nm, 10 Hz, 10 ns·⌀10 mm |
1 in stock
Ships in: 2–5 calendar days
$926
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
SPECIFICATIONS
| Clear Aperture Diameter | 10 mm |
| Damage Treshold | >15 J / cm² 50Hz, 10 ns pulse at 1064 nm, typical |
| Polarization Contrast | >1∶1000 |
| Weight | 0.1 kg |
| Compact Variable Attenuator - Solidworks file | |
| Compact Variable Attenuator with Standard Base - Solidworks file | |
| Compact Variable Attenuator with Additional Base - Solidworks file |
Description
This Variable Attenuator incorporates a high - performance Polarizing Cube Beamsplitter which reflects
s-polarized light at 90° while transmitting p-polarized light.
A rotatable λ/2 waveplate is placed in the incident polarized laser beam. The intensity ratio of the two outgoing beams may be continuously varied without alteration of other beam parameters by rotating the half waveplate. The intensity of either exit beam, or their intensity ratio, can be controlled over a wide dynamic range. Pure p-polarization could be selected for maximum transmission, or pure s-polarization for maximum reflection.
- Attenuation range for reflected beam: 2%-99.9%
- Attenuation range for transmitted beam: 0.1%-98%
- Convenient 90° angle between reflected and transmitted beams
- No beam shift at exit
