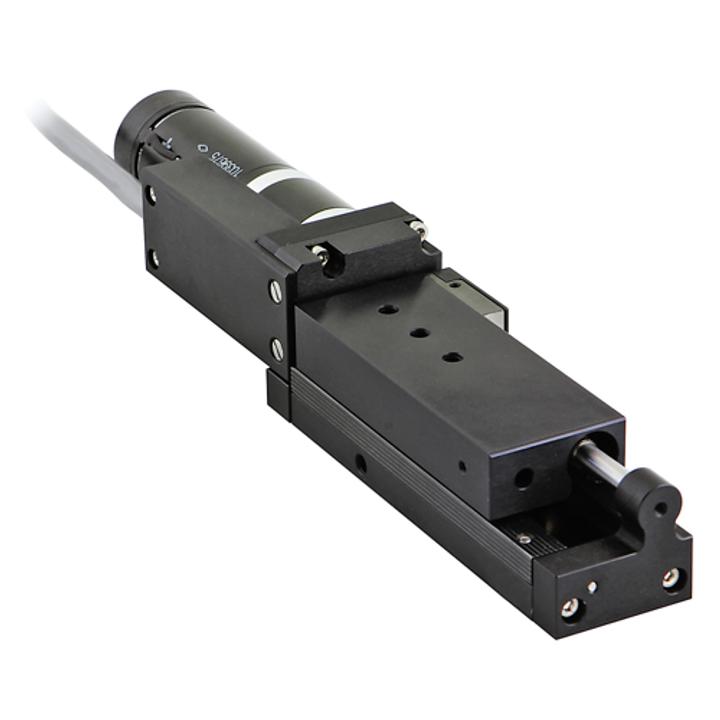

Narrow Motorized Translation Stages with DC Motors 961-0050, 962-0050 SKU: 961-0050
961-0050 stage is equiped with DC motor that provides smoother motion and closed loop operation. High number of motor reduction gear provides high resolution, but low speed in turn. Ideal for applications demanding high accuracy but not sensitive to speed limitations. 962-0050…
Shared product specifications
These specifications apply across the Narrow Motorized Translation Stages with DC Motors 961-0050, 962-0050 product family.
| 961-0050 | 962-0050 | |
|---|---|---|
| Travel range | 50 mm | 50 mm |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Resolution | 0.014 µm | |
| Minimal incremental motion | 0.1 µm | 0.1 µm |
| Bi-directional Repeatability | 0.4 µm | 0.4 µm |
| Max. speed | 7 mm / s | 0.38 mm / s |
| Load capacity: / Horizontal / Vertical | 5 kg / 1 kg | 5 kg / 1 kg |
| Cable | integrated, 1.6 m length | integrated, 1.6 m length |
| Motor connector | HDB15(M) | HDB15(M) |
| DC Motor | DCE RE25 | DCJ252445 |
| Assemblies: / X-Y / Z | 810-0250-01 / 810-0150-01 | 810-0250-01 / 810-0150-01 |
| Recommended controllers | 980-0060-USB | Joystick for 962-0100 |
