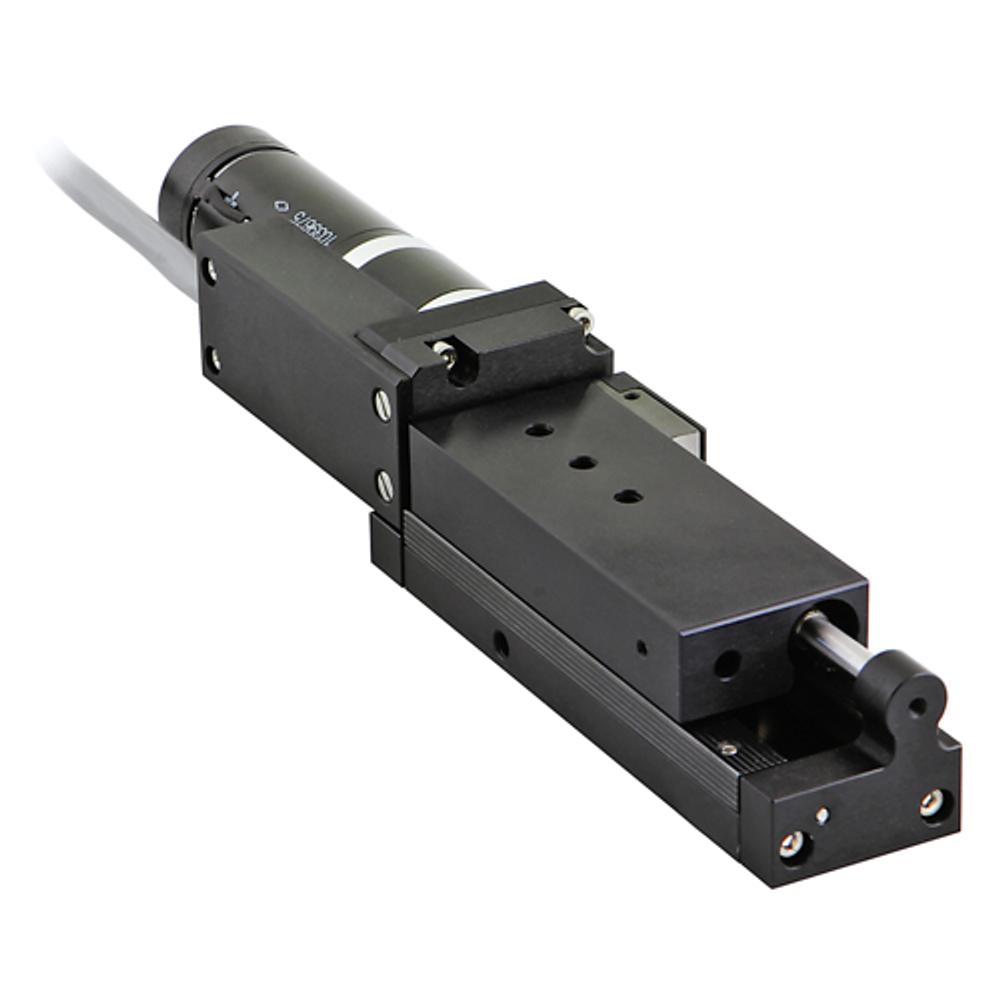

Narrow Motorized Translation Stages with DC Motors 961-0050, 962-0050
961-0050 stage is equiped with DC motor that provides smoother motion and closed loop operation. High number of motor reduction gear provides high resolution, but low speed in turn. Ideal for applications demanding high… Read more →
Listed in
Order
Specifications
| 961-0050 | 962-0050 | |
|---|---|---|
| Travel range | 50 mm | 50 mm |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Resolution | 0.014 µm | |
| Minimal incremental motion | 0.1 µm | 0.1 µm |
| Bi-directional Repeatability | 0.4 µm | 0.4 µm |
| Max. speed | 7 mm / s | 0.38 mm / s |
| Load capacity: / Horizontal / Vertical | 5 kg / 1 kg | 5 kg / 1 kg |
| Cable | integrated, 1.6 m length | integrated, 1.6 m length |
| Motor connector | HDB15(M) | HDB15(M) |
| DC Motor | DCE RE25 | DCJ252445 |
| Assemblies: / X-Y / Z | 810-0250-01 / 810-0150-01 | 810-0250-01 / 810-0150-01 |
| Recommended controllers | 980-0060-USB | Joystick for 962-0100 |
Description
961-0050 stage is equiped with DC motor that provides smoother motion and closed loop operation. High number of motor reduction gear provides high resolution, but low speed in turn. Ideal for applications demanding high accuracy but not sensitive to speed limitations.
962-0050 stage is equipped with DC motor without encoder and can be operated with joystick only. Ideal for systems with own feedback, e.g. visual feedback when used with microscope.
