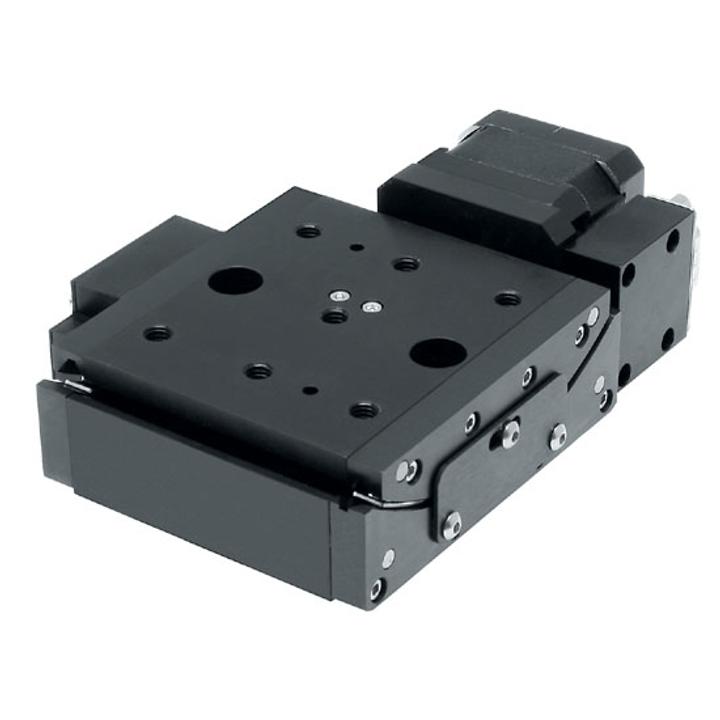

Motorized Goniometers 960-0180 SKU: 960-0189-50
• Rotates an object without obscuring the optical path • Superb stability • 1 or 2 axes of rotation (stackable) • Smooth operation with ball bearings • Compact square body Motorized goniometers rotate an object about an axis in a space located outside the body of the unit…
Shared product specifications
These specifications apply across the Motorized Goniometers 960-0180 product family.
| 960-0189 | 960-0180 | |
|---|---|---|
| Travel range | ±2.5° | 0.5° |
| Resolution / 960-0189 / 0180-50 / 960-0189 / 0180-80 | 16.12" / 10.96" | 20.6" / 16.5" |
| Lifetime | - | 20 million / full steps |
| Height of center of rotation / 960-0189 / 0180-50 / 960-0189 / 0180-80 | 50 mm / 80 mm | 50 mm / 80 mm |
| Load capacity | 2 kg | 2 kg |
| Motor connector | DB9(M) | DB9(M) |
| Mottor | 4233 | 4233 |
| Optocoupler end limit switches | 2 | 2 |
| Switch polarity | pushed is open | pushed is open |
| Motorized Goniometers - DWG file | |
| Motorized Goniometers - STEP file |
