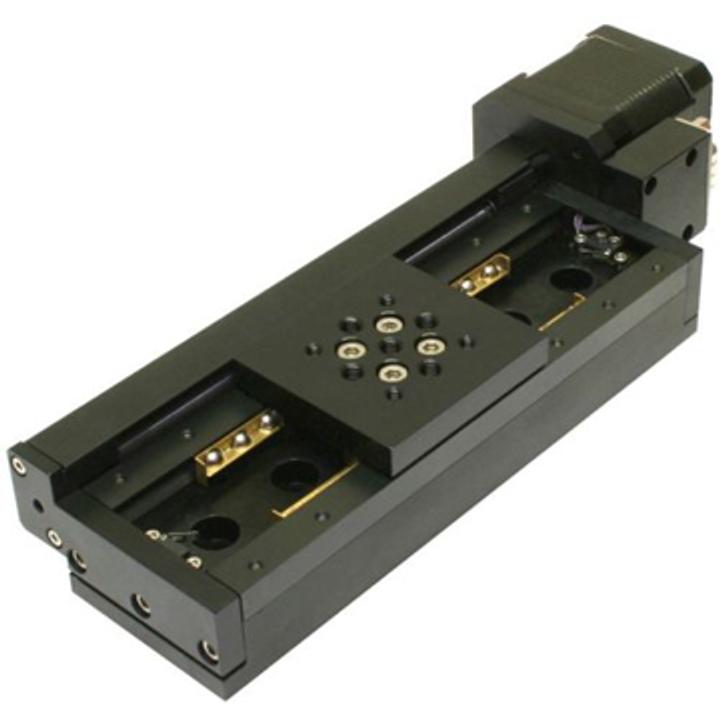

Motorized Translation Stage 960-0080 SKU: 960-0080
• 100 mm travel • 2.5 µm resolution • Vacuum version available As a standard motorized translation and rotation stages are provided with a dial knob. Encoder, Revolution sensor or Damper are available. More information.
Shared product specifications
These specifications apply across the Motorized Translation Stage 960-0080 product family.
| Travel range | 100 mm |
| Lead screw pitch | 0.5 mm |
| Resolution:* / in full step mode / in 1 / 8 step mode | 2.5 µm / 0.31 µm |
| Max. speed* | 10 mm / s |
| Load capacity: / horizontal / vertical | 8 kg / 3 kg |
| Motor connector | DB9(M) |
| Stepper motor | 4247 |
| Mechanical end limit switches | 2 |
| Switch Polarity | pushed is closed |
