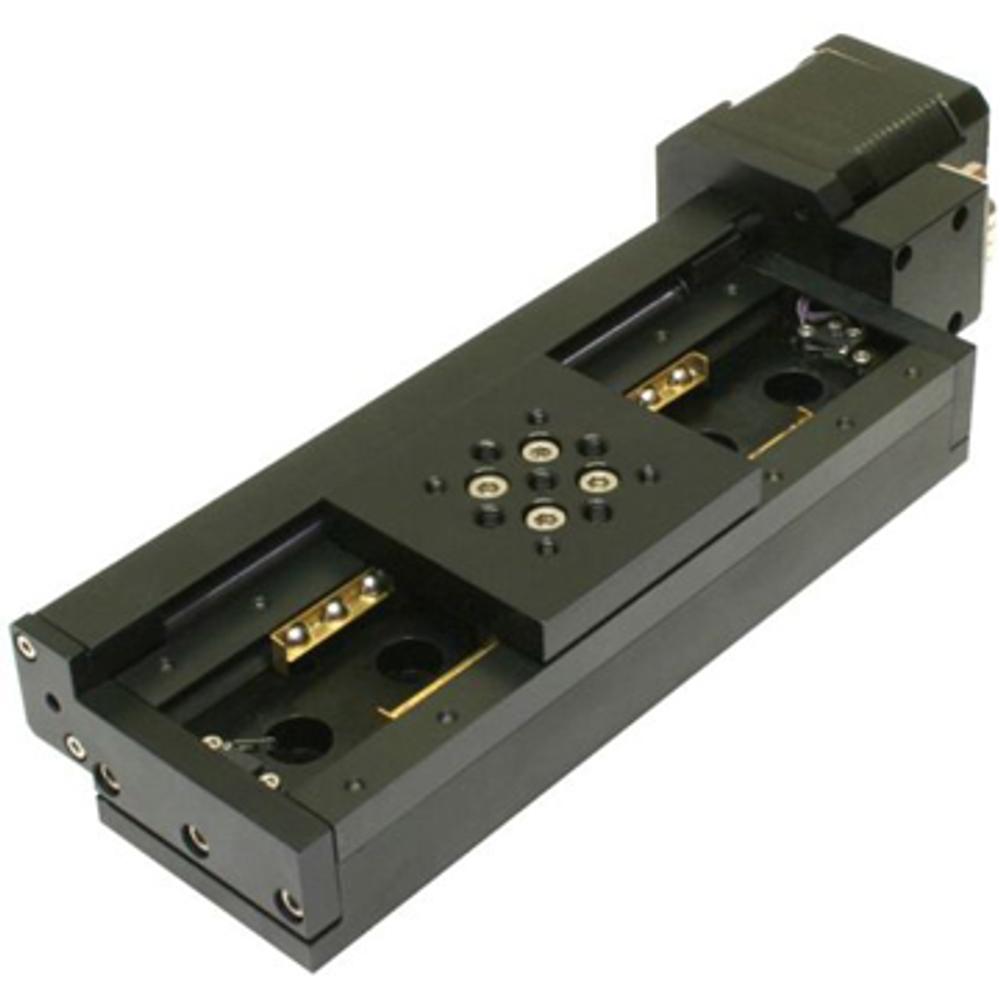

Motorized Translation Stage 960-0080
• 100 mm travel • 2.5 µm resolution • Vacuum version available As a standard motorized translation and rotation stages are provided with a dial knob. Encoder, Revolution sensor or Damper are available. More… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 960-0080 |
Out of stock
$1,294
|
Specifications
| Travel range | 100 mm |
| Lead screw pitch | 0.5 mm |
| Resolution:* / in full step mode / in 1 / 8 step mode | 2.5 µm / 0.31 µm |
| Max. speed* | 10 mm / s |
| Load capacity: / horizontal / vertical | 8 kg / 3 kg |
| Motor connector | DB9(M) |
| Stepper motor | 4247 |
| Mechanical end limit switches | 2 |
| Switch Polarity | pushed is closed |
Description
- 100 mm travel
- 2.5 µm resolution
- Vacuum version available
As a standard motorized translation and rotation stages are provided with a dial knob.
Encoder, Revolution sensor or Damper are available. More information.
