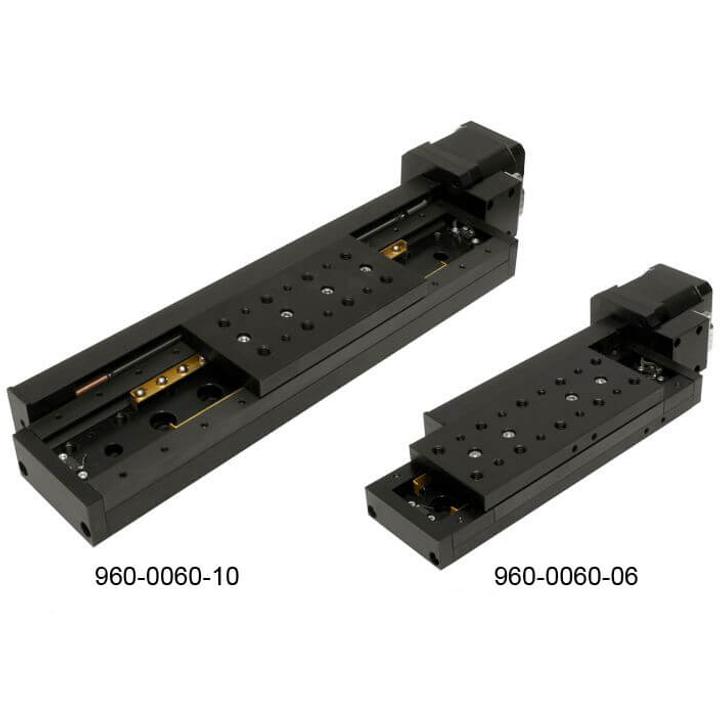

Medium (width 50 mm) Motorized Translation Stages 960-0060 SKU: 960-0060-10
• Narrow (50 mm) • Compact design • High guide way accuracy • Travel range 50, 100, 150, 200 mm • Resolution 0.31 µm (1/8 step) • X-Y-Z configurations available We highly recommend using Base Plate 820-0136 in order to place such stages on flat sufaces. Encoders or Revolution…
Variant specifications
| Specification | Value |
|---|---|
| Travel range | 150 mm |
Shared product specifications
These specifications apply across the Medium (width 50 mm) Motorized Translation Stages 960-0060 product family.
| 960-0060-06 | 960-0060-08 | 960-0060-10 | 960-0060-12 | |
|---|---|---|---|---|
| Travel range, mm | 50 | 100 | 150 | 200 |
| Lead screw pitch, mm | 0.5 | 0.5 | 0.5 | 0.5 |
| Resolution*, µm | 2.5 | 2.5 | 2.5 | 2.5 |
| Max. speed*, mm / s | 10 | 10 | 10 | 10 |
| Load capacity, kg: / horizontal / vertical | 8 / 3 | 8 / 3 | 8 / 3 | 8 / 3 |
| Motor Connector | DB9(M) | DB9(M) | DB9(M) | DB9(M) |
| Stepper motor | 4247 | 4247 | 4247 | 4247 |
| Assemblies: X-Y Z | directly 810-0160 | directly 810-0160 | directly 810-0160 | directly 810-0160 |
| Mechanical end limit switches | 2 | 2 | 2 | 2 |
| Switch polarity | pushed is closed | pushed is closed | pushed is closed | pushed is closed |
