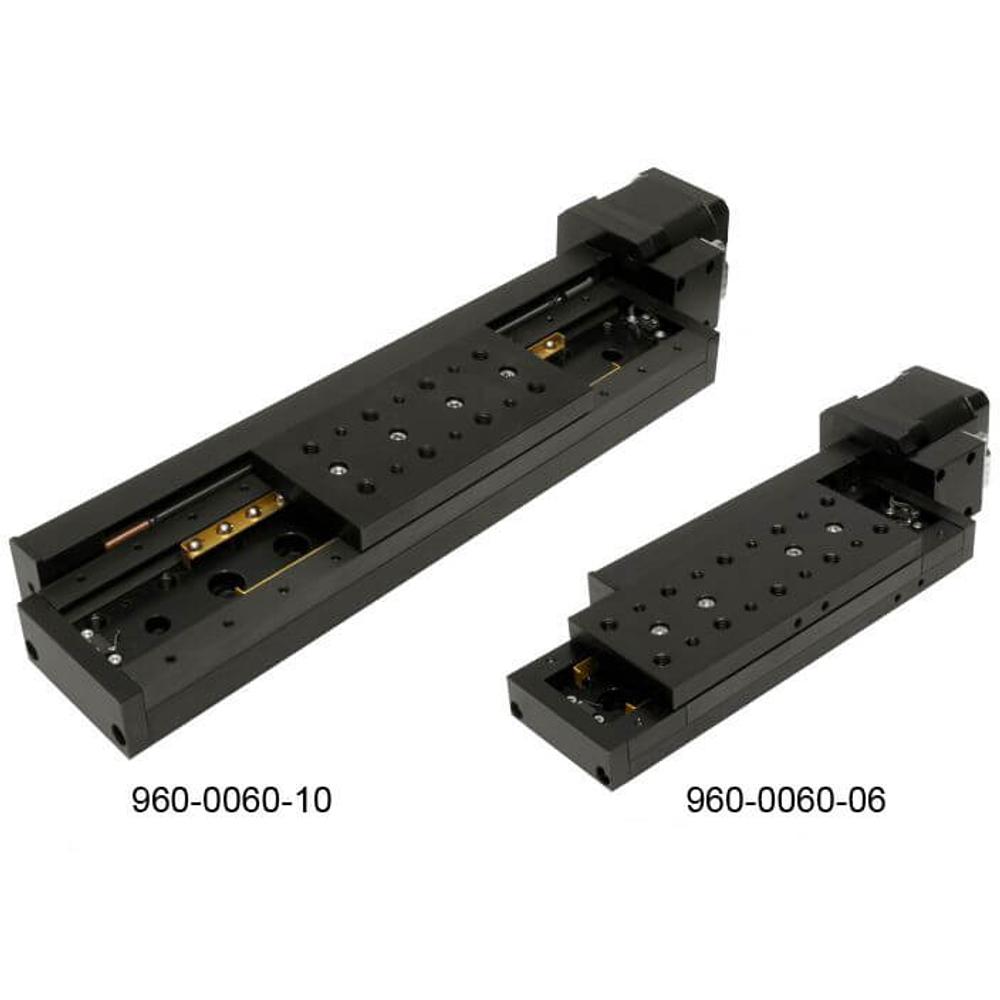

Medium (width 50 mm) Motorized Translation Stages 960-0060
• Narrow (50 mm) • Compact design • High guide way accuracy • Travel range 50, 100, 150, 200 mm • Resolution 0.31 µm (1/8 step) • X-Y-Z configurations available We highly recommend using Base Plate 820-0136 in order to… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
Travel range
Any
4
catalog variants — refine the spec to narrow it down.
| SKU | Travel range | |
|---|---|---|
| 960-0060-06 | 50 mm |
Out of stock
$1,138
|
| 960-0060-08 | 100 mm |
Out of stock
$1,318
|
| 960-0060-10 | 150 mm |
Out of stock
$1,730
|
| 960-0060-12 | 200 mm |
Out of stock
$2,327
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| 960-0060-06 | 960-0060-08 | 960-0060-10 | 960-0060-12 | |
|---|---|---|---|---|
| Travel range, mm | 50 | 100 | 150 | 200 |
| Lead screw pitch, mm | 0.5 | 0.5 | 0.5 | 0.5 |
| Resolution*, µm | 2.5 | 2.5 | 2.5 | 2.5 |
| Max. speed*, mm / s | 10 | 10 | 10 | 10 |
| Load capacity, kg: / horizontal / vertical | 8 / 3 | 8 / 3 | 8 / 3 | 8 / 3 |
| Motor Connector | DB9(M) | DB9(M) | DB9(M) | DB9(M) |
| Stepper motor | 4247 | 4247 | 4247 | 4247 |
| Assemblies: X-Y Z | directly 810-0160 | directly 810-0160 | directly 810-0160 | directly 810-0160 |
| Mechanical end limit switches | 2 | 2 | 2 | 2 |
| Switch polarity | pushed is closed | pushed is closed | pushed is closed | pushed is closed |
Description
- Narrow (50 mm)
- Compact design
- High guide way accuracy
- Travel range 50, 100, 150, 200 mm
- Resolution 0.31 µm (1/8 step)
- X-Y-Z configurations available
We highly recommend using Base Plate 820-0136 in order to place such stages on flat sufaces.
Encoders or Revolution sensors are available on request. More information.
