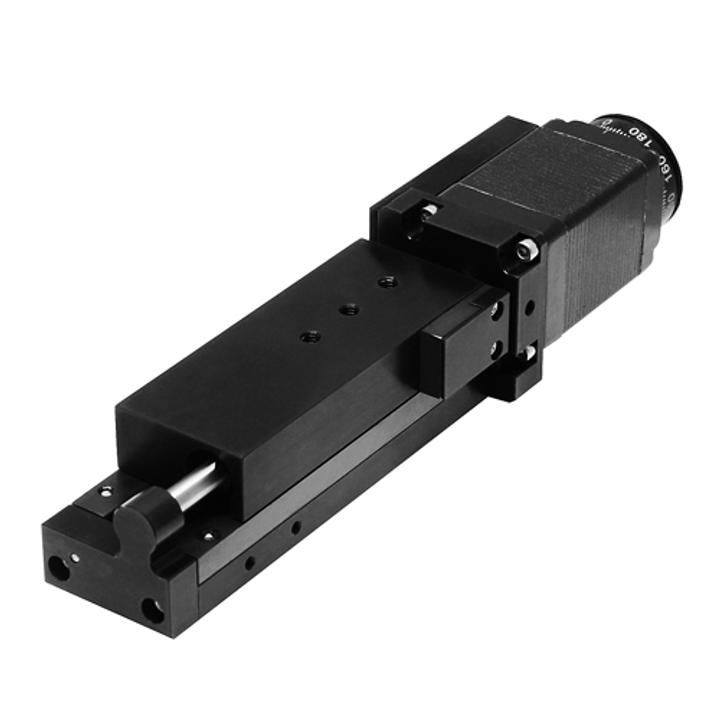

Narrow Motorized Translation Stage with Stepper Motor 960-0050 SKU: 960-0050
• Compact design • High guide way accuracy • Resolution 0.156 μm (1/8 step) • X-Y-Z configurations available Motorized Translation Stage 960-0050 is a newly developed stage, which incorporates all the improvements and modifications implemented since its predecessor 960-0060-05…
Shared product specifications
These specifications apply across the Narrow Motorized Translation Stage with Stepper Motor 960-0050 product family.
| Travel range | 50 mm |
| Lead screw pitch | 0.25 mm |
| Resolution in full step* | 1.25 µm |
| Max. speed* | 5 mm / s |
| Load capacity / Horizontal / Vertical | 5 kg / 3 kg |
| Cable | integrated, 1.6 m length |
| Motor connector | HDB15(M) |
| Stepper motor | 28 |
| Weight | 0.5 kg |
| Assemblies / X-Y / Z | 810-0250-01 / 810-0150-01 |
