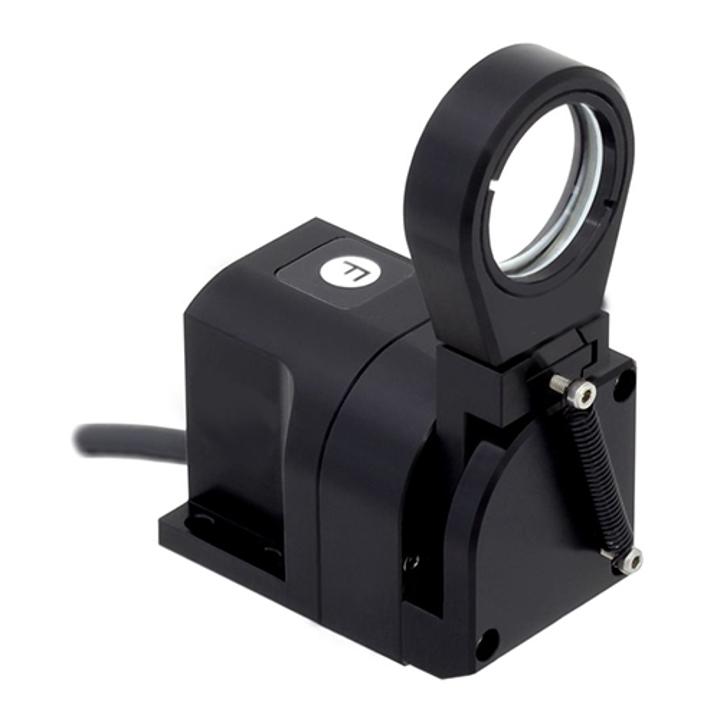

Motorized Flipper Mount 940-0090 SKU: 940-0090-PS
• Controlled with button, handset, external trigger or 980-0045-USB controller (not included) • Mechanical hard stops ensure repeatable positioning • M6x7 threaded hole for post mounting • Remote handset with SMA I/O connectors • Single cable solution for space saving • 2"…
Variant specifications
| Specification | Value |
|---|---|
| Description | Power supply (12 V, 1 A) |
Shared product specifications
These specifications apply across the Motorized Flipper Mount 940-0090 product family.
| Flip positions | 0° and 90° |
| Flip time | <0.4 s |
| Optics diameter | 25.4 mm (1") |
| Optics thickness, max | 7 mm |
| Flip to flip repeatability | ≤50 µrad |
| Maximum torque | 0.1 Nm |
| Digital I / O connector type | SMA (2 places) |
| Power input | 9-12 V |
| Weight | 160 g |
